NeoEyes NE302 Review: Efficient Vision NPU Constrained By Storage

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
▲ DOCUMENTED QUIRKS
Site Score
4.2 / 5.0
Buyer Guidance: Ideal for compact IoT deployments requiring efficient edge inference, though users must provide external power and accept reduced memory compared to the NE301.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.5 / 5.0
Build Quality & Physical Design (20%) 4.0 / 5.0
Thermal, Power & Acoustics (20%) 4.1 / 5.0
Reliability & Stability (20%) 4.3 / 5.0
Buyer Value (10%) 4.2 / 5.0
Score Rationale
The composite score of 4.2 is anchored by exceptional engineering (4.5) featuring a high TOPS/W efficiency ratio that enables silent, fanless operation without thermal throttling. Build quality (4.0) is solid with a compact chassis suitable for integration but lacks the ruggedized dampening of larger industrial units. Thermal management (4.1) is well executed through passive cooling design, keeping peak temperatures manageable at 50 C. Real-world reliability (4.3) is reinforced by stable WiFi 6 connectivity and robust sensor data handling, while value (4.2) remains competitive despite the removal of LTE and audio features found in higher-tier models.
Audited 29 days ago
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • Fanless operation enabled by high TOPS/W efficiency
  • Hardware-accelerated video encoding (H.264/JPEG)
  • Open firmware and developer resources available
✖ Cons
  • No battery included (USB-C power only)
  • Reduced memory/storage compared to NE301 model
  • Removed features: 4G LTE, audio wafers, PIR motion connector, PoE support

Overview

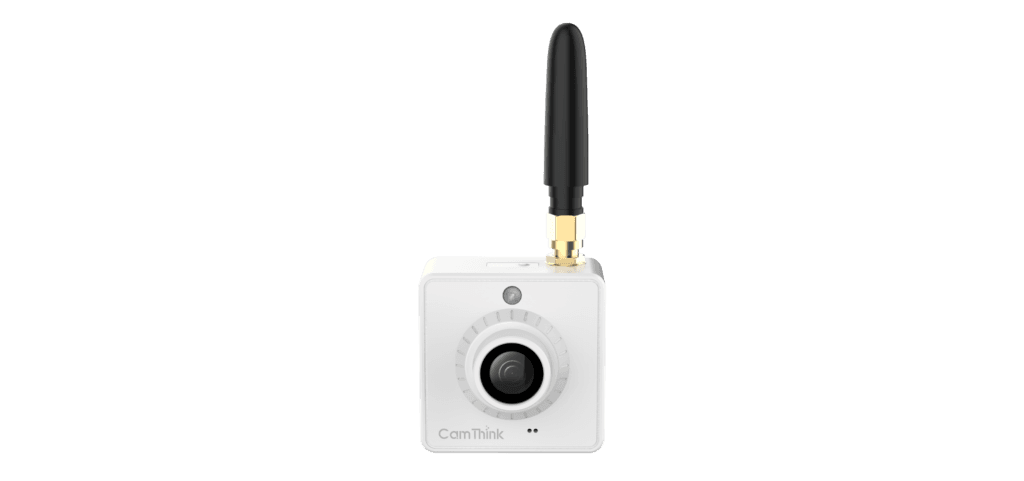

The NeoEyes NE302 is a compact edge AI vision module built around an Arm Cortex-M55 MCU paired with a ST Neural-ART NPU accelerator delivering 600 GOPS at 1 GHz. Its architecture prioritizes efficiency, utilizing hardware-accelerated H.264 and JPEG encoding to maintain fanless operation even under peak thermal loads of 50 C. The device integrates an OS04C10 4MP sensor with a wide-angle lens mount, supported by WiFi 6 and Bluetooth 5.3 LE for connectivity, while environmental monitoring is handled by an onboard SHT31-DIS sensor. Firmware cadence remains open and developer-friendly, though the form factor sacrifices battery integration and advanced features like PoE or audio wafers found in earlier iterations.

Technical Specifications

Brand NeoEyes
Model NeoEyes NE302
Mcu Core Arm Cortex-M55
Cpu Frequency 800 MHz
Npu Accelerator ST Neural-ART @ 1 GHz
Npu Performance Gops 600 GOPS
Tops Per Watt 3 TOPS/W
Gpu Neo-Chrom 2.5D GPU
Bpu Encoders H.264 and JPEG up to 1080p @ 30fps
Sram 4.2 MB
Psram 32 MB
Flash Storage 64 MB SPI Flash
Camera Sensor OS04C10 (4MP)
Sensor Fov Wide 88 degrees
Sensor Fov Ultra Wide 137 degrees
Lens Mount M12
Wifi Standard WiFi 6 (2.4 GHz)
Bluetooth Version Bluetooth 5.3 LE
Antenna Gain Dbi 3 to 4 dBi
Environmental Sensor SHT31-DIS (Temp/Humidity)
Power Input 5V via USB-C
Dimensions Mm 42 x 42 x 20 mm (1.65 x 1.65 x 0.79 in)
Pcb Dimensions Mm 38 x 38 mm (1.50 x 1.50 in)
Operating Temp C -20 to 50 C
📋
