- Expansive 6.67-inch 2K curved AMOLED display with a modular magnetic POGO-PIN connection
- Laminar Focus counter-rotating middle fan design optimizing airflow velocity and reducing turbulence
- EZ Conn unified single-cable architecture for simplified cable routing
- Robust static pressure rating of 3.84 mm-H₂O and 217.91 CFM total airflow capacity
- Rated acoustic output reaches 39.58 dBA under maximum 2300 RPM fan speeds
- Unified fan frame design limits standard modular individual fan replacement
Overview

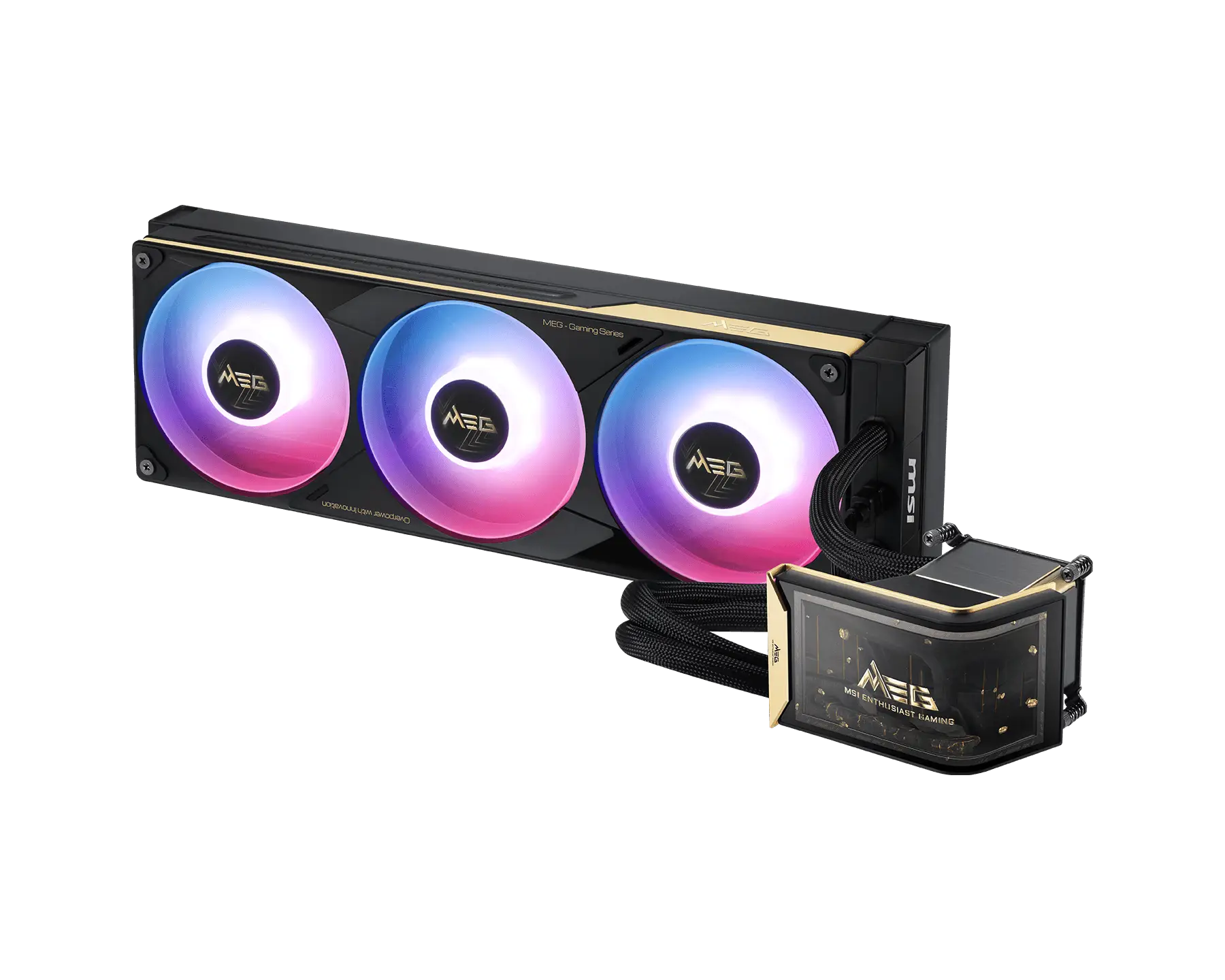

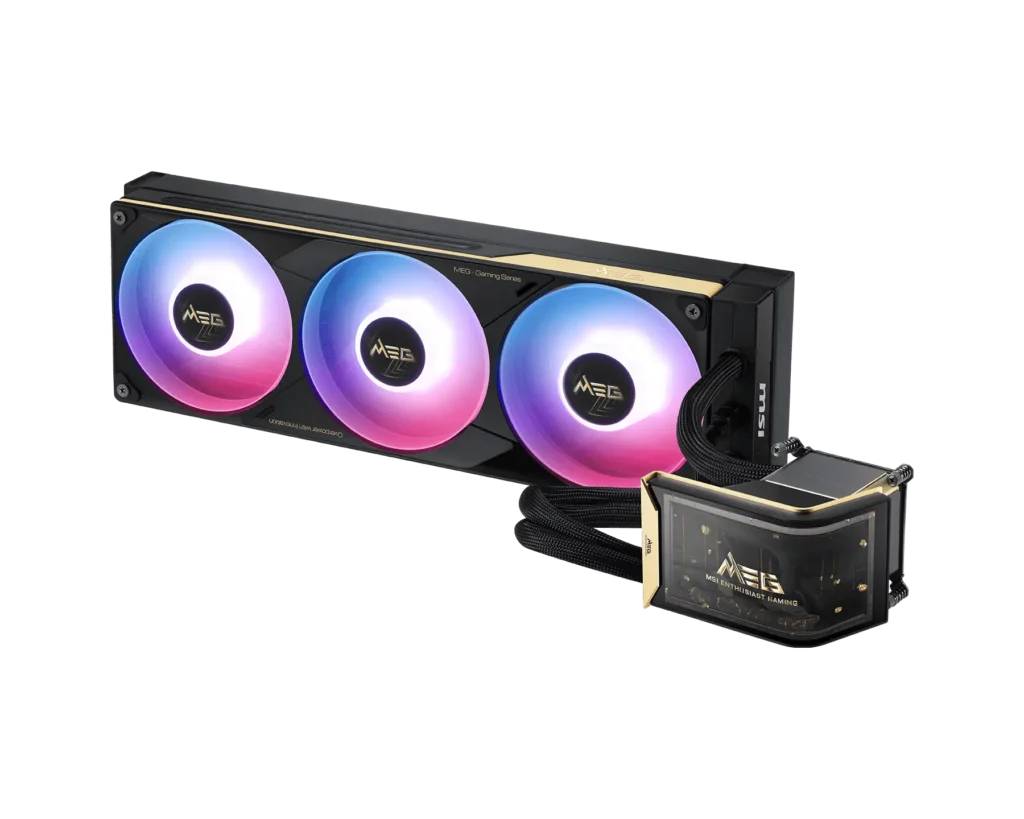

The MSI MEG CORELIQUID E15 represents an ambitious advancement in flagship all-in-one liquid cooling architecture, integrating a distinctive 6.67-inch 2K curved AMOLED display directly above the CPU block. Engineered with an aluminum 360 mm radiator measuring 397 x 124.5 x 30 mm, the cooling loop relies on 390 mm EPDM and IIR composite tubing engineered to mitigate coolant permeation over time. The cold block assembly is driven by a 3000 RPM pump consuming 6.24 W, coupled with a modular magnetic POGO-PIN interface that routes display data and power while eliminating exposed wiring harnesses across the motherboard socket area.
Heat dissipation is managed through a unified triple-fan frame utilizing Fluid Dynamic Bearings and MSI’s Laminar Focus design, where the center fan rotates in reverse relative to the outer fans to minimize vortex turbulence and direct airflow uniformly across the radiator fins. Capable of generating up to 217.91 CFM of airflow and 3.84 mm-H₂O static pressure, the cooling subsystem is configured to handle demanding thermal transients on modern Intel LGA 1700/1851 and AMD AM4/AM5 sockets. Under peak loads approaching the 2300 RPM threshold, rated noise output scales to 39.58 dBA, necessitating tuned PWM curves for noise-sensitive operating environments. Standardized empirical acoustic and thermal dissipation metrics under sustained test-bench loads remain subject to final retail validation.
From a systems integration standpoint, the cooler utilizes MSI’s EZ Conn single-cable infrastructure to streamline ARGB Gen2 lighting and fan telemetry into a single consolidated header. Firmware-level protection includes an automated cooling safeguard that dynamically accelerates functioning fans in the event of an RPM fault. Balancing enthusiast showcase aesthetics with substantial static pressure capabilities, the MEG CORELIQUID E15 establishes a sophisticated, feature-dense thermal solution for high-tier workstation and gaming configurations.
Technical Specifications
| Brand | MSI |
| Model | MSI MEG CORELIQUID E15 |
| Cooler Type | All-in-One (AIO) Liquid CPU Cooler |
| Radiator Dimensions | 397 x 124.5 x 30 mm (15.63 x 4.90 x 1.18 in) |
| Radiator Material | Aluminium |
| Tubing Length | 390 mm |
| Tubing Material | EPDM + IIR |
| Cpu Block Dimensions | 71.63 x 68.5 x 64.97 mm (2.82 x 2.70 x 2.56 in) |
| Display Specification | 6.67-inch Curved AMOLED (2240 x 1080, 110-degree curve) |
| Display Interface | Magnetic POGO-PIN |
| Pump Speed | 3000 ± 300 RPM |
| Pump Power Draw | 6.24 W |
| Pump Life Expectancy | 50,000 hours at 40°C |
| Fan Configuration | Triple-fan unified frame (362 x 125 x 28.4 mm) |
| Fan Speed | 800–2300 ± 230 RPM |
| Fan Bearing Type | Fluid Dynamic Bearing (FDB) |
| Max Airflow | 217.91 CFM |
| Max Static Pressure | 3.84 mm-H₂O |
| Rated Noise Level | 39.58 dBA |
| Fan Life Expectancy | 40,000 hours at 40°C |
| Cable Connection | EZ Conn single-cable design |
| Lighting | ARGB Gen2 |
| Socket Compatibility | Intel LGA 1700, LGA 1851; AMD AM5, AM4 |
Primary Sources & Audited Citations
Recommended Alternatives in CPU Coolers (AIO & Air)
At a Glance
How reliable is the MSI MEG CORELIQUID E15 Review: Curved AMOLED Meets Liquid Cooling according to Mizex audits?
An ambitious, enthusiast-grade liquid cooler ideal for showcase builds requiring high static pressure, simplified cabling, and an expansive curved AMOLED monitoring screen.
What are the known quirks or drawbacks of the MSI MEG CORELIQUID E15 Review: Curved AMOLED Meets Liquid Cooling?
Our reliability audit identified the following documented caveats:
- Rated acoustic output reaches 39.58 dBA under maximum 2300 RPM fan speeds
- Unified fan frame design limits standard modular individual fan replacement
What are the key engineering highlights of the MSI MEG CORELIQUID E15 Review: Curved AMOLED Meets Liquid Cooling?
The top strengths recorded in our evaluation include:
- Expansive 6.67-inch 2K curved AMOLED display with a modular magnetic POGO-PIN connection
- Laminar Focus counter-rotating middle fan design optimizing airflow velocity and reducing turbulence
- EZ Conn unified single-cable architecture for simplified cable routing
- Robust static pressure rating of 3.84 mm-H₂O and 217.91 CFM total airflow capacity
