- 27-inch Rapid IPS panel delivering 2560x1440 resolution at 200 Hz with 0.5 ms minimum GtG response time
- Wide color gamut reproduction covering 121% sRGB, 93% Adobe RGB, and 92% DCI-P3 with 10-bit color support
- Dual adaptive synchronization support with AMD FreeSync Premium and NVIDIA G-SYNC compatibility
- Internal power board design requiring only a standard AC power cord
- Stock stand is limited strictly to tilt adjustment, omitting height, swivel, and pivot articulation
- HDMI 2.0b bandwidth caps 1440p resolution at 144 Hz, requiring DisplayPort 1.4a for full 200 Hz operation
- Omits USB hub ports, USB-C connectivity, built-in speakers, and localized backlight dimming
Overview

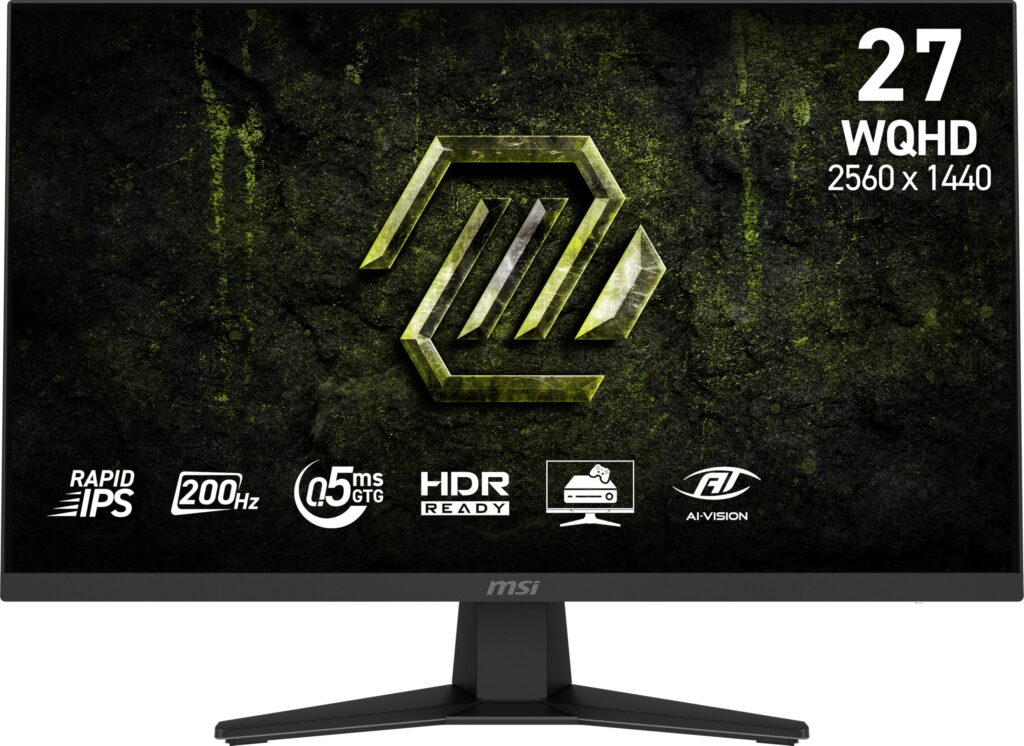

Balancing esports-grade responsiveness with crisp 1440p visual clarity, MSI’s gaming display delivers fluid motion without unnecessary chassis theatrics. At the center of the design is a 27-inch Rapid IPS panel running at a 200 Hz refresh rate with a 0.5 ms minimum gray-to-gray response time, yielding sharp motion transitions and minimal ghosting during fast-paced competitive gameplay. The display pipeline relies on a DisplayPort 1.4a input to achieve the full 200 Hz output, whereas the dual HDMI 2.0b ports cap refresh at 144 Hz at native resolution. Integrating the AC power board directly into the monitor chassis keeps desktop cabling neat by requiring only a standard power cord, eliminating the awkward floor clutter of an external power brick.
From a physical standpoint, the construction emphasizes functional minimalism with an anti-glare screen treatment and clean matte plastics. However, cost reduction is most evident in the included desktop stand, which restricts articulation solely to a -5° to 20° tilt range with no provisions for height, swivel, or pivot adjustments. Users needing an ergonomically sound viewing height will want to leverage the standard 100 x 100 mm VESA mounting pattern with an aftermarket monitor arm. Passive thermal dissipation is handled smoothly through rear convective venting, shedding heat from the internal power supply and LED backlight without requiring active fans.
Day-to-day usability benefits from a clean firmware setup managed by an intuitive rear 5-way joystick navigator, replacing confusing multi-button arrays. The scalar firmware provides practical utilities including Picture-in-Picture, Picture-by-Picture, Console Mode, and adaptive synchronization across both AMD FreeSync Premium and NVIDIA G-SYNC compatible systems. While the 300-nit SDR brightness and lack of local dimming keep high dynamic range content fairly modest despite DisplayHDR 400 certification, the panel’s rich color coverage—spanning 93% Adobe RGB and 92% DCI-P3—ensures vivid, well-calibrated imagery for both work and play.
Technical Specifications
| Brand | MSI |
| Model | MAG 274QF E20 |
| Panel Type | Rapid IPS |
| Screen Size Diagonal | 27.0 in (68.6 cm) |
| Active Display Area | 23.49 x 13.22 in (596.74 x 335.66 mm) |
| Native Resolution | 2560 x 1440 (WQHD) |
| Aspect Ratio | 16:9 |
| Curvature | Flat |
| Pixel Pitch | 0.0092 x 0.0092 in (0.2331 x 0.2331 mm) |
| Refresh Rate | 200 Hz |
| Response Time | 0.5 ms (GtG, Min.) |
| Sdr Brightness | 300 nits |
| Static Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 100,000,000:1 |
| Viewing Angles | 178° horizontal / 178° vertical |
| Color Depth | 10-bit (8-bit + FRC), 1.07 billion colors |
| Color Gamut Coverage | 121% sRGB, 93% Adobe RGB, 92% DCI-P3 (CIE 1976) |
| Hdr Certification | VESA DisplayHDR 400 |
| Variable Refresh Technologies | AMD FreeSync Premium, NVIDIA G-SYNC Compatible |
| Frequency Range Horizontal | 71.51 kHz to 298 kHz |
| Frequency Range Vertical | 48 Hz to 200 Hz |
| Video Inputs | 1x DisplayPort 1.4a (up to 2560x1440 @ 200 Hz), 2x HDMI 2.0b (up to 2560x1440 @ 144 Hz) |
| Audio Outputs | 1x 3.5 mm headphone jack |
| Surface Treatment | Anti-glare |
| Stand Ergonomics | Tilt (-5° to 20°) |
| Vesa Mount Interface | 3.94 x 3.94 in (100 x 100 mm) |
| Security Lock | Kensington lock slot |
| Power Supply Type | Internal power board (100-240V AC, 50/60 Hz) |
| Dimensions With Stand | 24.15 x 9.83 x 17.29 in (613.5 x 249.7 x 439.05 mm) |
| Dimensions Without Stand | 24.15 x 2.44 x 14.27 in (613.5 x 62.08 x 362.5 mm) |
| Weight Net | 10.80 lbs (4.9 kg) |
| Weight Gross | 15.21 lbs (6.9 kg) |
| Osd Navigation | 5-way joystick navigator |
| Firmware Features | AI Vision smart black tuner, Console Mode (PS5 / Xbox Series X|S support), HDMI CEC, PIP / PBP |
Primary Sources & Audited Citations
Recommended Alternatives in Monitors & Displays
At a Glance
How reliable is the MSI MAG 274QF E20 Review: High Refresh Speed Meets Ergonomic Limits according to Mizex audits?
A compelling high-refresh 1440p option for budget-conscious gamers, provided you connect via DisplayPort and budget for a dedicated VESA monitor arm.
What are the known quirks or drawbacks of the MSI MAG 274QF E20 Review: High Refresh Speed Meets Ergonomic Limits?
Our reliability audit identified the following documented caveats:
- Stock stand is limited strictly to tilt adjustment, omitting height, swivel, and pivot articulation
- HDMI 2.0b bandwidth caps 1440p resolution at 144 Hz, requiring DisplayPort 1.4a for full 200 Hz operation
- Omits USB hub ports, USB-C connectivity, built-in speakers, and localized backlight dimming
What are the key engineering highlights of the MSI MAG 274QF E20 Review: High Refresh Speed Meets Ergonomic Limits?
The top strengths recorded in our evaluation include:
- 27-inch Rapid IPS panel delivering 2560x1440 resolution at 200 Hz with 0.5 ms minimum GtG response time
- Wide color gamut reproduction covering 121% sRGB, 93% Adobe RGB, and 92% DCI-P3 with 10-bit color support
- Dual adaptive synchronization support with AMD FreeSync Premium and NVIDIA G-SYNC compatibility
- Internal power board design requiring only a standard AC power cord
