Overview

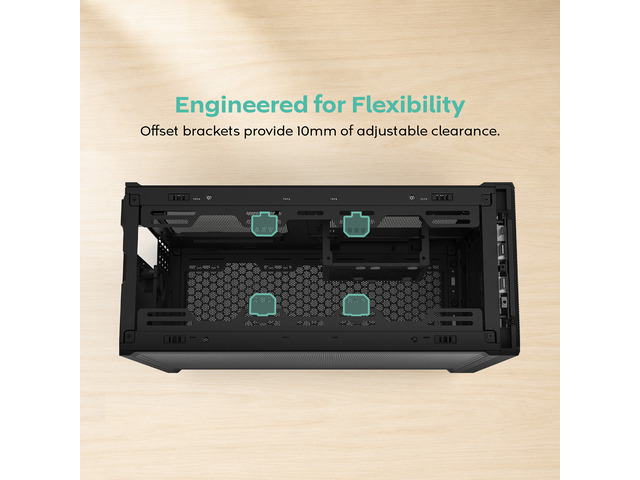

The Montech TEN is a compact Micro-ATX chassis engineered around a highly adaptable, modular architecture designed to bridge small-form-factor packaging with full-sized component support. Utilizing a structural blend of steel and precision-molded plastic accents, the chassis introduces multi-mode internal configurations (including designated M1, M2, and I3 layout modes) alongside versatile power supply brackets capable of housing ATX, SFX-L, and SFX units. Its 4+3 expansion slot layout accommodates horizontal GPUs up to 425 mm and vertical configurations up to 410 mm, delivering exceptional hardware clearance within an efficient 456 x 196 x 327 mm profile.
Thermal performance is prioritized through extensive, all-around perforated mesh panelling across the exterior, enabling unrestricted intake and exhaust airflow. Despite its compact footprint, internal mounting provisions support up to nine 120 mm or six 140 mm fans—supplemented by a dedicated 92 mm rear exhaust location with an included 92 mm PWM fan—and dual radiator support scaling up to 280 mm and 360 mm. The front I/O array is modern and high-bandwidth, incorporating dual USB 3.0 Type-A ports, a high-speed USB 3.2 Gen 2×2 Type-C connection, and a combo audio jack. While navigating the dense multi-mode configuration matrix introduces assembly complexity during initial component staging, the resulting platform offers formidable thermal headroom and hardware versatility.
Technical Specifications
| Chassis Type | Micro-ATX SFF Chassis |
| Supported Motherboards | Micro-ATX, Mini-ITX |
| Primary Materials | Steel, Plastic |
| Dimensions Mm | 456 x 196 x 327 |
| Expansion Slots | 4 + 3 |
| Max Cpu Cooler Height | 156 mm |
| Max Gpu Length | 425 mm (horizontal), 410 mm (vertical) |
| Psu Compatibility | ATX, SFX-L, SFX |
| Drive Capacity | 2x 3.5-inch or 4x 2.5-inch |
| Fan Mount Capacity | Up to 9x 120mm or 6x 140mm + 1x 92mm rear |
| Included Fans | 1x 92mm PWM rear fan |
| Radiator Support | 280mm, 360mm |
| Front Io | 2x USB 3.0 Type-A, 1x USB 3.2 Gen 2x2 Type-C, 3.5mm Combo Audio |
- Versatile modular layout supporting M1, M2, and I3 installation configurations
- All-around high-permeability mesh design providing outstanding passive airflow and cooling capacity
- Supports full-length graphics cards up to 425 mm and large 360 mm radiators in a compact footprint
- Broad power supply compatibility supporting ATX, SFX-L, and SFX standards
- Plentiful layout modes and variable bracket positions increase initial cable-routing and assembly complexity
- CPU air cooler height limited to 156 mm, restricting large dual-tower heatsinks
