Montech CyberFlow Core 360mm Review: High-Flow Loop with Dedicated VRM Cooling

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
● HIGHLY RATED
Site Score
4.5 / 5.0
Buyer Guidance: An ideal choice for workstation and gaming builds running high-power AM5 or LGA 1700/1851 processors where dedicated power delivery cooling and high static pressure take precedence over RGB lighting.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.5 / 5.0
Build Quality & Physical Design (20%) 4.4 / 5.0
Thermal, Power & Acoustics (20%) 4.3 / 5.0
Reliability & Stability (20%) 4.6 / 5.0
Buyer Value (10%) 4.5 / 5.0
Score Rationale
Active power delivery cooling and an aggressive hydraulic loop anchor this rating, with Engineering & Architecture (4.5) driven by the modular magnetic VRM fan, 3,500 RPM pump, and a 31.9% expanded microchannel copper cold plate. Thermal management and acoustics (4.3) benefit from high-pressure E25 fans pushing 7.43 mmH2O across a thick 32 mm aluminum radiator, though fan noise peaks at 36.2 dBA under maximum 2,700 RPM operation. Build quality (4.4) is underscored by clean 20 FPI radiator fin spacing and 400 mm sleeved tubing. Long-term Reliability (4.6) is reinforced by fluid dynamic fan bearings and an extensive 6-year manufacturer warranty, while Buyer value (4.5) remains exceptionally strong by stripping out ARGB overhead to prioritize pure cooling hardware.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • Dedicated magnetic auxiliary VRM fan actively lowers temperatures on motherboard power delivery stages and RAM
  • Thicker 32 mm aluminum radiator paired with 31.9% expanded microchannel copper cold plate
  • High-throughput 3,500 RPM PWM pump circulating coolant at up to 1,760 mL/min
  • Comprehensive 6-year manufacturer warranty with durable fluid dynamic bearing fans
✖ Cons
  • Core edition omits ARGB lighting on pump block and fans, which may deter aesthetics-focused builders
  • High-speed 2,700 RPM fans generate noticeable acoustic output up to 36.2 dBA under sustained maximum load

Overview

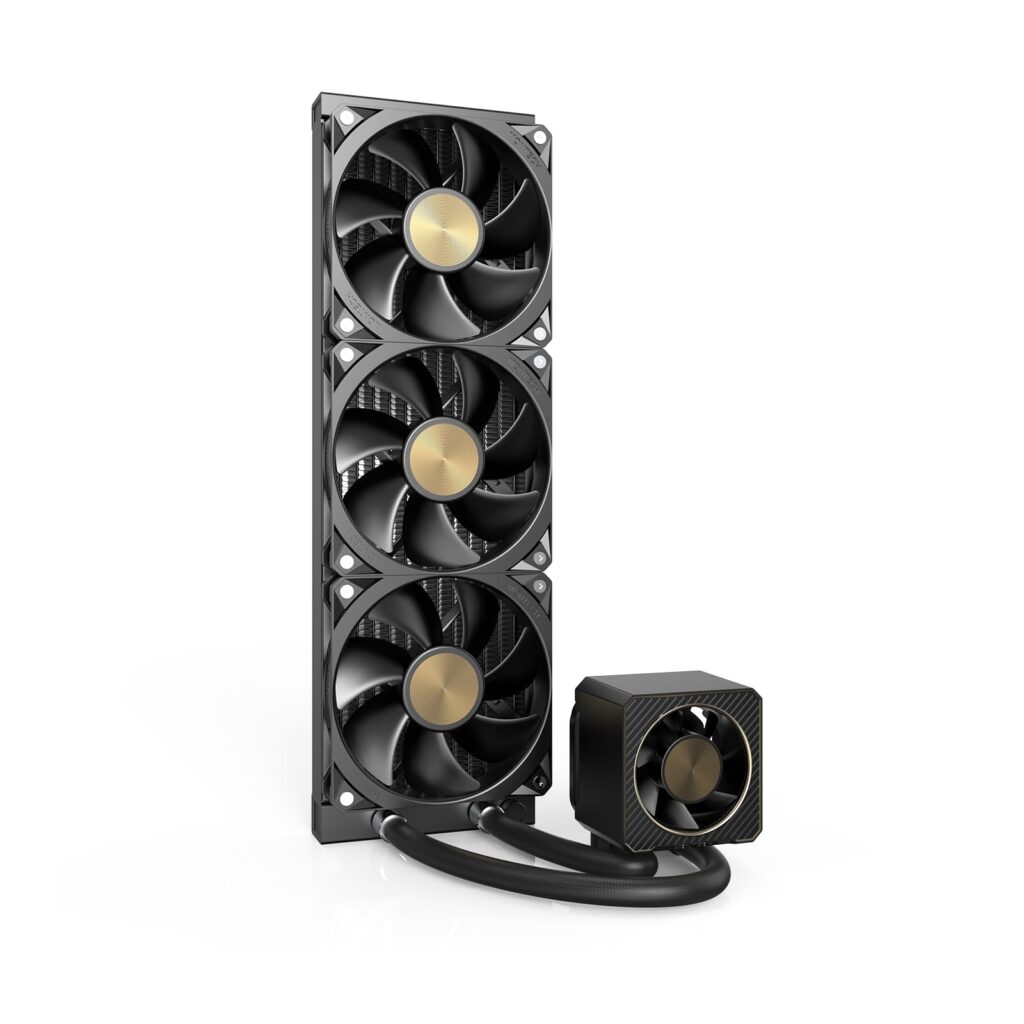

Engineered with an expanded 32 mm (1.26 in) aluminum radiator core and an auxiliary magnetic VRM fan, the CyberFlow Core 360mm addresses both CPU die hotspots and surrounding motherboard power stage thermals. The hydraulic loop is powered by a 4-pin PWM pump running at 3,500 ± 10% RPM, capable of driving coolant flow rates up to 1,760 mL/min. At the CPU interface, an integrated copper cold plate incorporates a 31.9% expanded microchannel surface area, facilitating rapid thermal conduction away from the integrated heat spreader across modern multi-chiplet Intel LGA 1700/1851 and AMD AM4/AM5 sockets.

Airflow across the 20 FPI (192-fin) radiator is driven by three 120 x 120 x 25 mm (4.72 x 4.72 x 0.98 in) MONTECH E25 PWM fans equipped with Fluid Dynamic Bearings. To overcome the flow resistance of the 32 mm radiator core, these fans generate up to 7.43 mmH2O of static pressure and 93.12 CFM of airflow at rotational speeds reaching 2,700 RPM. While the acoustic output peaks at 36.2 dBA under full-tilt operation, standard PWM regulation allows builders to dial in conservative acoustic profiles during typical desktop loads without compromising fluid circulation.

Mechanical packaging emphasizes functional utility and clearance, incorporating 400 mm (15.75 in) flexible tubing to accommodate front or top mounting in mid-tower and full-tower enclosures. The modular magnetic VRM fan clips directly over the 77 x 77 x 81.35 mm (3.03 x 3.03 x 3.20 in) water block without extra screws, bathing adjacent VRM chokes and memory sticks in active airflow. By omitting ARGB illumination entirely across the pump head and fan assemblies, the Core edition targets durability and understated aesthetics, reinforced by a 6-year manufacturer warranty.

Technical Specifications

Brand MONTECH
Model CyberFlow Core 360mm
Radiator Dimensions 397 x 120 x 32 mm (15.63 x 4.72 x 1.26 in)
Radiator Material Aluminum
Radiator Fin Density 20 FPI (192 fins)
Water Block Dimensions 77 x 77 x 81.35 mm (3.03 x 3.03 x 3.20 in)
Cold Plate Material Copper
Microchannel Design Expanded microchannel surface area (+31.9%)
Pump Speed 3,500 ± 10% RPM
Pump Flow Rate Up to 1,760 mL/min
Pump Power Connector 4-Pin PWM
Tubing Length 400 mm (15.75 in)
VRM Cooling Modular magnetic auxiliary VRM fan
Fan Model MONTECH E25 PWM
Fan Quantity 3
Fan Dimensions 120 x 120 x 25 mm (4.72 x 4.72 x 0.98 in)
Fan Bearing Type Fluid Dynamic Bearing (FDB)
Fan Speed Up to 2,700 RPM
Fan Max Airflow 93.12 CFM
Fan Max Static Pressure 7.43 mmH2O
Fan Max Noise Level 36.2 dBA
Socket Compatibility Intel LGA 1700, Intel LGA 1851, AMD AM4, AMD AM5
Color Options Black, White
Lighting Non-RGB (Core Edition)
Warranty 6 Years
📋
