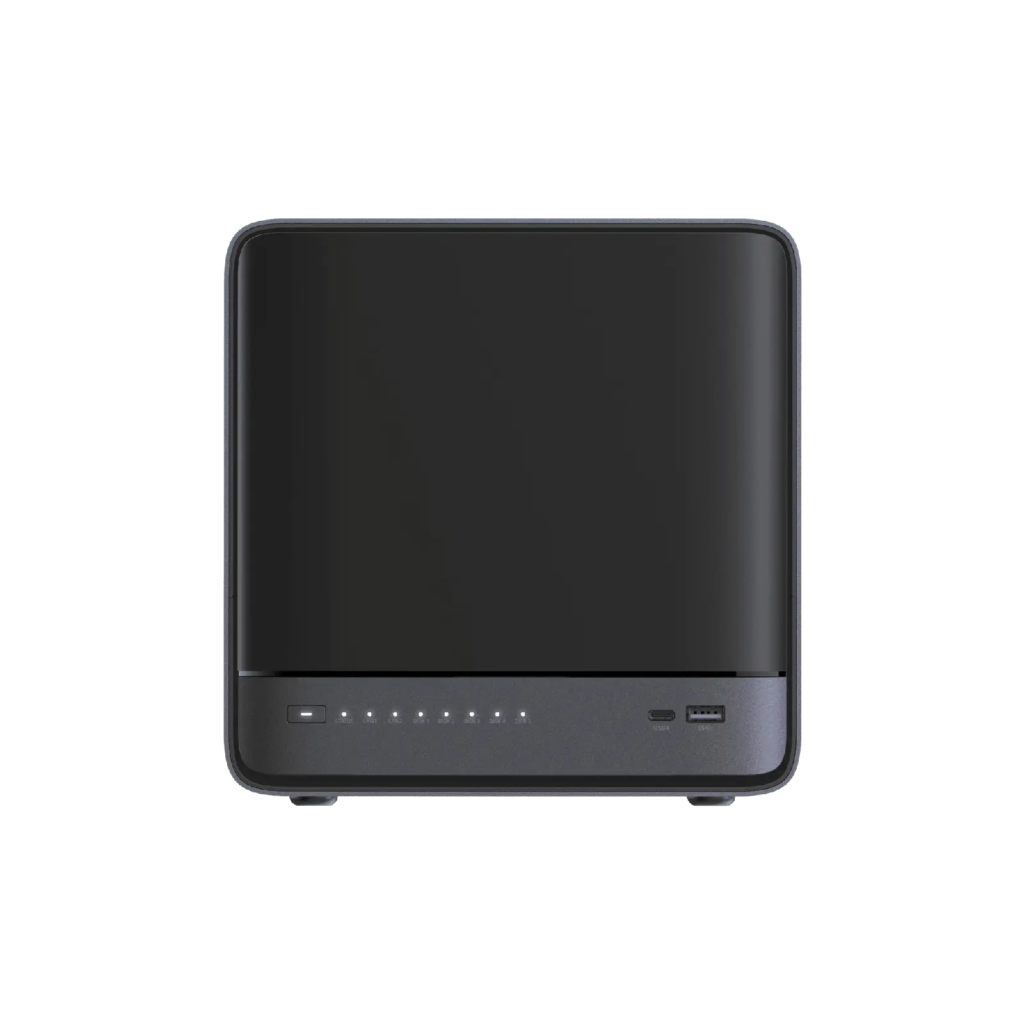

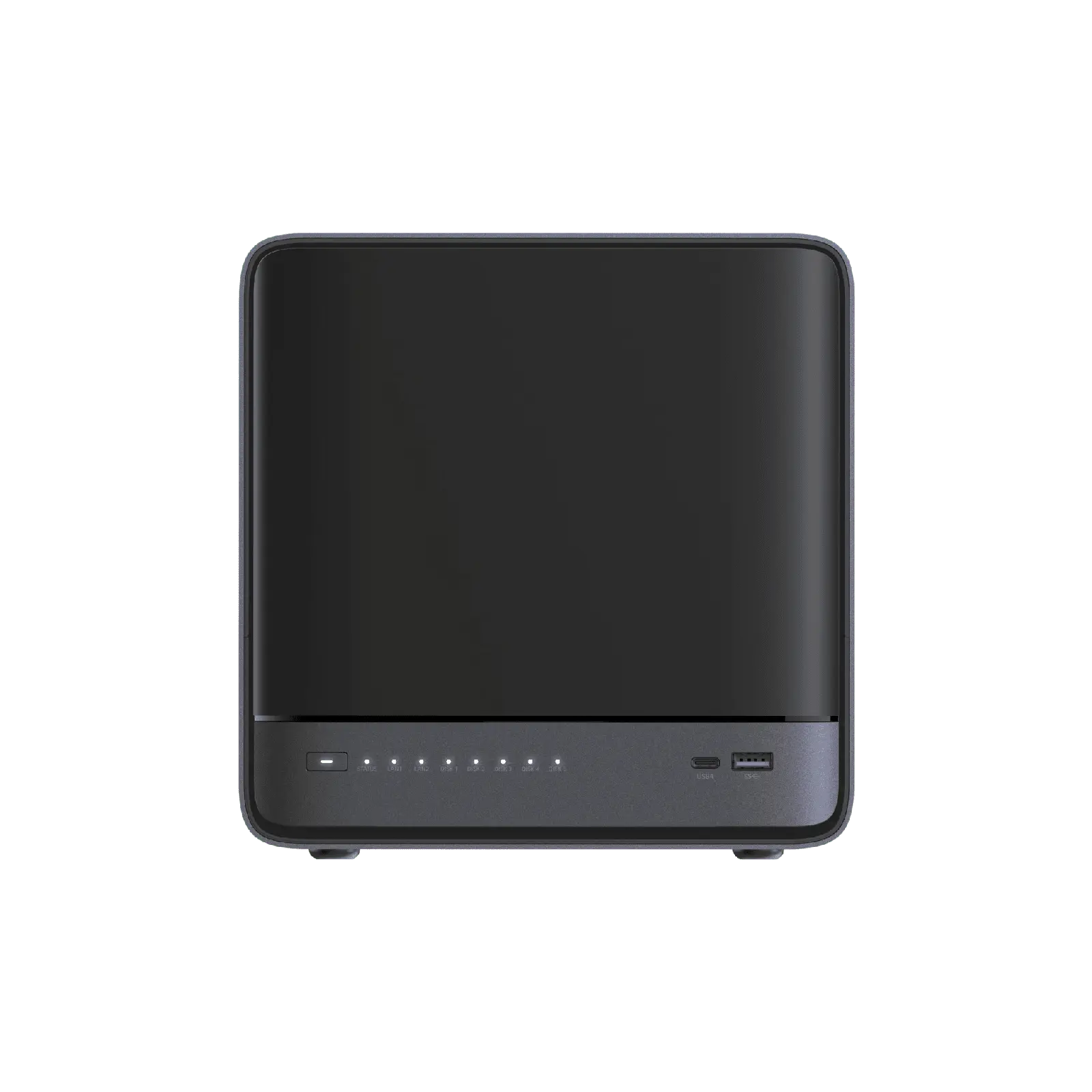

Minisforum N5 MAX

Minisforum N5 MAX
● HIGHLY RATED
Site Score
4.4 / 5.0
Buyer Guidance: Ideal for power users, developers, and homelab architects requiring dense local AI inference and massive multi-tier network storage, provided the 64 GB soldered memory cap meets your deployment needs.
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.7 / 5.0
Build Quality & Physical Design (20%) 4.4 / 5.0
Thermal, Power & Acoustics (20%) 4.1 / 5.0
Reliability & Stability (20%) 4.5 / 5.0
Buyer Value (10%) 4.3 / 5.0
Score Rationale
Unprecedented local inference throughput and expansive multi-tier storage architecture anchor the evaluation, driven by top-tier Engineering & Architecture (4.7) that merges a 16-core Strix Halo APU with a 256-bit unified memory bus and 126 TOPS of NPU acceleration. Real-World Reliability (4.5) benefits from dual 10 Gbps Ethernet controllers and an integrated 250W power supply engineered for continuous network workloads. Build Quality & Tolerances (4.4) reflects a sturdy multi-bay chassis supporting five SATA drives and five M.2 slots with dedicated PCIe expansion. Value & Upgradeability (4.3) is elevated by vast storage expansion capabilities up to 200 TB, tempered slightly by fixed 64 GB soldered memory and a baseline 128 GB drive configuration. Thermal & Acoustic Profile (4.1) maintains adequate cooling across high-density storage and a dense 250W power envelope, yielding a composite score of 4.4.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
💬 Join the Discussion ↓
Scores adjust dynamically as verified community ratings accumulate.

Overview

Bridging workstation-class silicon with high-density network-attached storage, the Minisforum N5 MAX integrates AMD’s 16-core, 32-thread Ryzen AI Max+ 395 processor atop a 256-bit wide LPDDR5X-8533 unified memory interface. Delivering up to 126 TOPS of local AI inference alongside Radeon 8060S integrated graphics, the platform eliminates standard PCI Express host-to-device memory transfer bottlenecks for edge computing and continuous large language model execution. Network and bus bandwidth are symmetrically matched through dual 10 Gbps Ethernet controllers, dual 80 Gbps USB4 connections, and a secondary 40 Gbps USB4 port, backed by an internal 250W power supply.

Physical expansion centers on a hybrid multi-tier storage layout engineered into the compact enclosure, pairing five hot-swappable 3.5-inch/2.5-inch SATA bays capable of addressing up to 200 TB with five dedicated M.2 2280 NVMe SSD slots. Thermal dissipation must manage concurrent heat generation from spinning mechanical drives, high-throughput solid-state storage, and the high-output Zen 5 APU under sustained compute loads. While accommodating an auxiliary PCIe 4.0 x4 expansion slot and native HDMI 2.1 display output for dual-purpose desktop workstation functionality, the system omits onboard Wi-Fi and Bluetooth radios in favor of hardwired multi-gigabit routing.

On the software and firmware tier, out-of-the-box provisioning includes OpenClaw for immediate on-device neural model deployment within Windows environments. Although the soldered 64 GB LPDDR5X pool provides ample headroom for multi-stream storage caching and quantized models, it establishes a hard ceiling below the 128 GB capacity seen in peak Strix Halo deployments. Furthermore, shipping the baseline configuration with a solitary 128 GB NVMe boot drive necessitates early storage upgrades, though the sheer density of its 10-drive storage array and enterprise-grade networking solidifies its position as an exceptionally capable hybrid compute-storage appliance.

Technical Specifications

Brand Minisforum
Model N5 MAX
Processor AMD Ryzen AI Max+ 395 (16 Cores, 32 Threads, Zen 5, Strix Halo)
Integrated Graphics AMD Radeon 8060S
AI Inference Acceleration 126 TOPS
Unified Memory 64 GB LPDDR5X-8533 (256-bit bus)
Drive Bays 5x 3.5-inch / 2.5-inch SATA (up to 200 TB total capacity)
M.2 SSD Slots 5x M.2 2280 NVMe (1x 128 GB NVMe SSD included in base configuration)
Expansion Slot 1x PCIe 4.0 x4
Ethernet Networking 2x 10 Gbps RJ-45 LAN
USB Connectivity 2x 80 Gbps USB4, 1x 40 Gbps USB4, USB Type-C
Display Interfaces 1x HDMI 2.1, USB-C / USB4 DisplayPort output
Power Supply 250W internal power supply
Preinstalled Software OpenClaw
Operating System Compatibility Windows
✔ Pros
  • High-performance AMD Ryzen AI Max+ 395 APU with 126 TOPS of local AI processing power
  • Expansive hybrid storage capacity featuring 5 SATA drive bays and 5 M.2 NVMe slots
  • Dual 10 Gbps Ethernet ports alongside dual 80 Gbps and single 40 Gbps USB4 connectivity
  • HDMI 2.1 and USB4 outputs allow versatile operation as both an edge NAS and a primary workstation
✖ Cons
  • Memory is non-upgradeable and limited to 64 GB LPDDR5X rather than maximum 128 GB configurations
  • Lacks integrated wireless connectivity (Wi-Fi and Bluetooth), requiring hardwired Ethernet or expansion cards
  • Base configuration includes only an entry-level 128 GB NVMe boot drive
📋

Primary Sources & Audited Citations

Where To Buy

Amazon
Check current stock & pricing
Minisforum Official Store
Check current stock & pricing
Micro Center
Check current stock & pricing

Disclosure: Mizex is an independent hardware database & audit index. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.

100% Sponsor-Free Platform
Zero paid placement • Zero brand bias

Support Independent Hardware Research

Mizex is an independent hardware intelligence platform. We accept zero manufacturer sponsorships, paid product reviews, or promotional placements. Every hardware profile, specification breakdown, and reliability rating is researched objectively from public documentation and verified community telemetry. If our database helped guide your build or purchase, consider supporting our research.

✓ Community-Driven ✓ Open Research ✓ 100% Objective Data
Compare & Research

Recommended Alternatives in Enterprise & Server Systems

Compare Other Models →

At a Glance

How reliable is the Minisforum N5 MAX according to Mizex audits?
Mizex Composite Score: 4.4 / 5.0 ● HIGHLY RATED

Ideal for power users, developers, and homelab architects requiring dense local AI inference and massive multi-tier network storage, provided the 64 GB soldered memory cap meets your deployment needs.

What are the known quirks or drawbacks of the Minisforum N5 MAX?

Our reliability audit identified the following documented caveats:

  • Memory is non-upgradeable and limited to 64 GB LPDDR5X rather than maximum 128 GB configurations
  • Lacks integrated wireless connectivity (Wi-Fi and Bluetooth), requiring hardwired Ethernet or expansion cards
  • Base configuration includes only an entry-level 128 GB NVMe boot drive
What are the key engineering highlights of the Minisforum N5 MAX?

The top strengths recorded in our evaluation include:

  • High-performance AMD Ryzen AI Max+ 395 APU with 126 TOPS of local AI processing power
  • Expansive hybrid storage capacity featuring 5 SATA drive bays and 5 M.2 NVMe slots
  • Dual 10 Gbps Ethernet ports alongside dual 80 Gbps and single 40 Gbps USB4 connectivity
  • HDMI 2.1 and USB4 outputs allow versatile operation as both an edge NAS and a primary workstation
