- Integrated physical QWERTY keyboard allows fully standalone text messaging without a companion smartphone
- Dual firmware support for both Meshtastic and MeshCore open-source decentralized mesh platforms
- Built-in multi-constellation GNSS and electronic compass for autonomous location tracking and telemetry
- Compact pocketable chassis with an integrated 2300 mAh battery for extended off-grid field operations
- Compact thumb-key layout requires deliberate input and offers minimal key travel for rapid typing
- 915 MHz RF hardware configuration is regionally locked to North American and compatible LoRa band plans
Overview

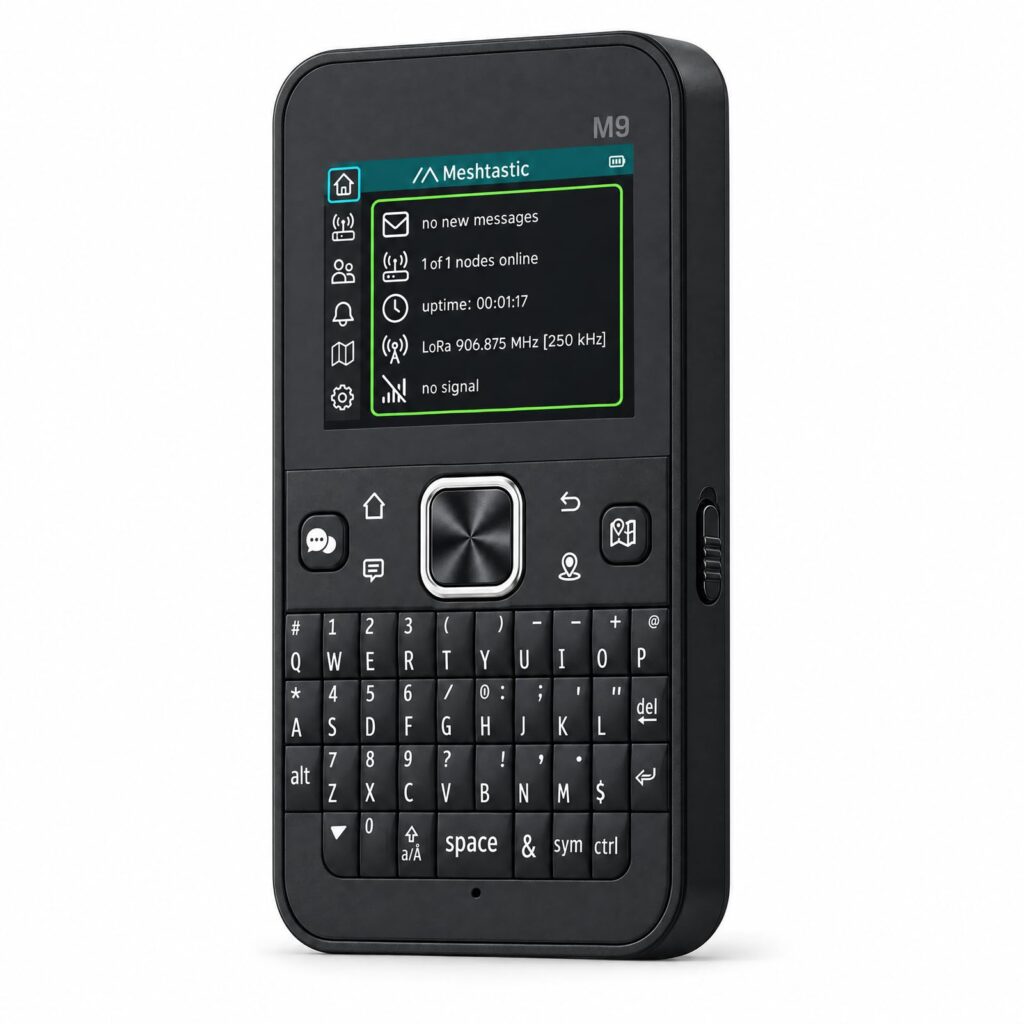

Engineered to liberate decentralized communication from smartphone reliance, the ThinkNode M9 packages a tactile QWERTY keyboard, color display, and long-range radio into a dedicated pocket communicator. Rather than relying on a delicate Bluetooth link to a smartphone that might run out of battery in the backcountry, this terminal operates as a completely self-contained field transceiver. The form factor feels immediately familiar in the hand, recalling classic handheld organizers while slimming down to a profile that slips easily into a backpack hip belt or jacket pocket for rapid access on the move.
Under the hood, an Espressif ESP32-S3 microcontroller orchestrates system logic and powers the 2.4-inch color LCD, while a Semtech LR1110 transceiver manages 915 MHz LoRa packet exchange. Multi-constellation satellite positioning—pulling from GPS, GLONASS, Galileo, and BeiDou alongside an onboard magnetic compass—delivers coordinates directly across the mesh network without cellular infrastructure. Because the hardware operates passively without internal fans or forced induction, heat generated during RF broadcast cycles dissipates evenly across the polymer housing, maintaining comfortable exterior case temperatures during sustained messaging sessions.
Software versatility serves as another core pillar, with official compatibility spanning both the Meshtastic ecosystem and MeshCore firmware. The integrated 2300 mAh rechargeable battery delivers sufficient endurance for extended outdoor excursions, while the full keyboard enables fluent direct-message drafting and channel configuration right on the device. For hikers, emergency preparedness coordinators, and mesh networkers operating far beyond cellular towers, the terminal provides a robust, reliable, and truly autonomous communication lifeline.
Technical Specifications
| Brand | Meshnology |
| Model | ThinkNode M9 Meshtastic LoRa Mesh Terminal (915MHz) |
| Device Type | Standalone LoRa Mesh Communication Terminal |
| Operating Frequency | 915 MHz (US Band) |
| Core Processor | Espressif ESP32-S3 Dual-Core Xtensa LX7 (240 MHz) |
| RF Transceiver | Semtech LR1110 LoRa Transceiver |
| Display | 2.4-inch Color LCD Display |
| Input Interface | Integrated Full Physical QWERTY Keyboard |
| Location Tracking | Multi-Constellation GNSS (GPS, GLONASS, Galileo, BeiDou) with Geomagnetic Compass |
| Wireless Connectivity | LoRa 915 MHz, Wi-Fi 802.11 b/g/n, Bluetooth 5 (LE) |
| Battery Capacity | 2300 mAh Rechargeable Lithium-Ion |
| Dimensions | 4.96 x 2.64 x 0.41 in (126 x 67 x 10.33 mm) |
| Weight | 4.37 oz (124 g) |
| Supported Firmware | Meshtastic, MeshCore |
Primary Sources & Audited Citations
Recommended Alternatives in Networking & Routers
At a Glance
How reliable is the Meshnology ThinkNode M9 Meshtastic LoRa Mesh Terminal (915MHz) Review: Autonomous Off-Grid Mesh Terminal according to Mizex audits?
An essential acquisition for outdoor adventurers, emergency preparedness operators, and decentralized mesh enthusiasts seeking an all-in-one terminal that eliminates smartphone dependency entirely.
What are the known quirks or drawbacks of the Meshnology ThinkNode M9 Meshtastic LoRa Mesh Terminal (915MHz) Review: Autonomous Off-Grid Mesh Terminal?
Our reliability audit identified the following documented caveats:
- Compact thumb-key layout requires deliberate input and offers minimal key travel for rapid typing
- 915 MHz RF hardware configuration is regionally locked to North American and compatible LoRa band plans
What are the key engineering highlights of the Meshnology ThinkNode M9 Meshtastic LoRa Mesh Terminal (915MHz) Review: Autonomous Off-Grid Mesh Terminal?
The top strengths recorded in our evaluation include:
- Integrated physical QWERTY keyboard allows fully standalone text messaging without a companion smartphone
- Dual firmware support for both Meshtastic and MeshCore open-source decentralized mesh platforms
- Built-in multi-constellation GNSS and electronic compass for autonomous location tracking and telemetry
- Compact pocketable chassis with an integrated 2300 mAh battery for extended off-grid field operations
