Overview

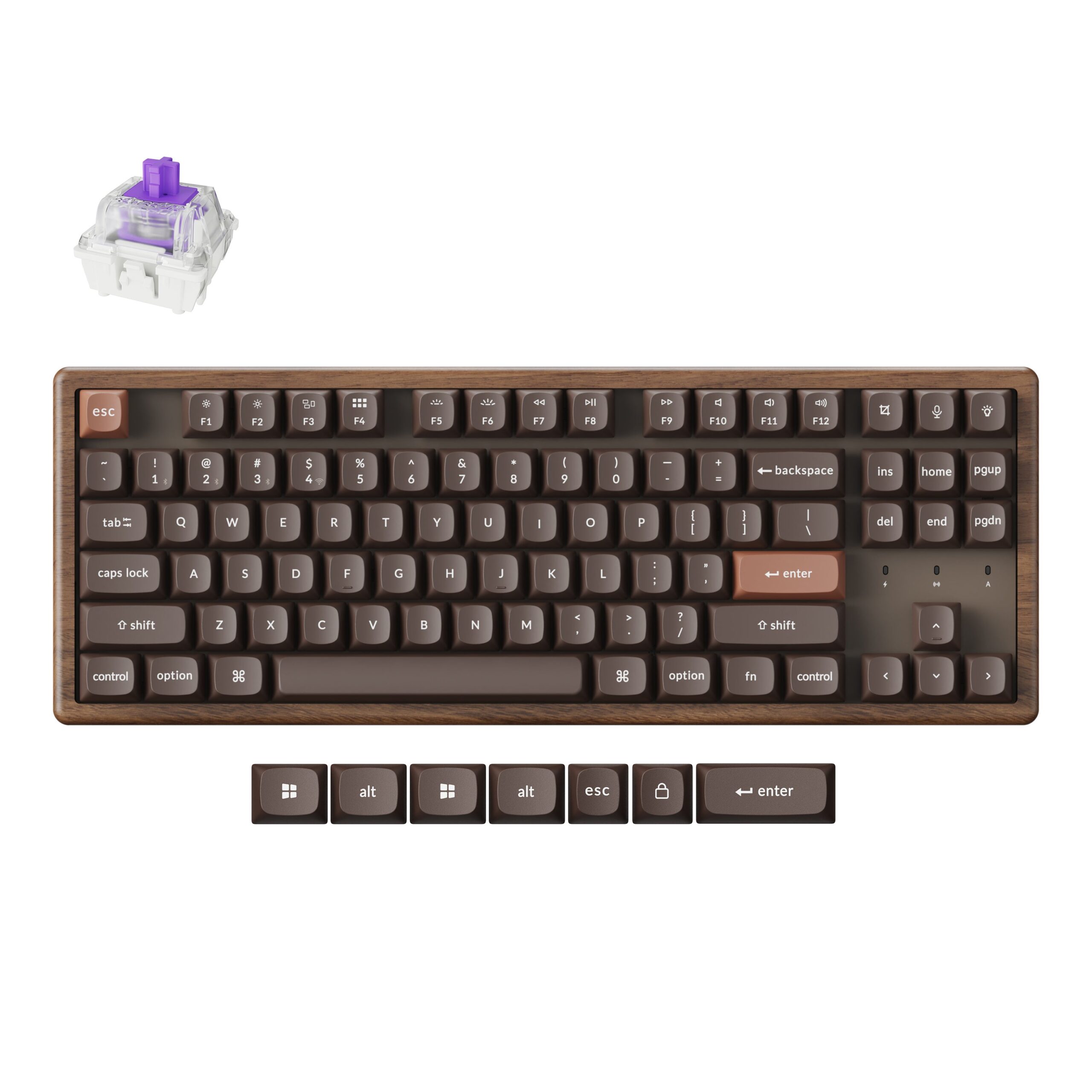

The Keychron K8 HE All-Wood Edition reimagines the tenkeyless (80%) form factor by marrying traditional woodworking craftsmanship with advanced magnetic input technology. Its chassis is constructed from a solid walnut wood frame and bottom enclosure, flanked by structural CNC-machined aluminum side panels and a rigid aluminum switch plate. At its core, the keyboard integrates pre-lubed Gateron Double-Rail Magnetic Nebula switches utilizing Hall Effect contactless sensing. This magnetic architecture delivers adjustable actuation points, Rapid Trigger responsiveness, and an ultra-responsive 3.4 ms keypress latency over a 1,000 Hz polling rate across both 2.4 GHz wireless and wired USB Type-C connections.
Acoustically and structurally, the keyboard relies on the natural density of walnut hardwood and its aluminum plate, implemented via a traditional tray-mount design rather than isolated gasket suspension. The dense timber enclosure provides solid baseline sound dampening against switch bottom-out resonance, while evaluation of any layered internal dampening materials remains pending retail physical teardown. Electrical power management is anchored by a substantial 4,000 mAh internal battery, delivering up to 110 hours of continuous operation with the per-key north-facing RGB backlighting turned off. Firmware execution is built on the open-source QMK platform, providing extensive custom keymapping and dynamic switch calibration directly via the browser-based Keychron Launcher interface.
In daily operation, the K8 HE balances gaming responsiveness with desktop presence, featuring seamless multi-device switching between macOS and Windows via dedicated hardware toggles and bundled OS-specific keycaps. The double-shot PBT keycaps in the OSA profile offer exceptional resistance to surface shine and physical wear, although their opaque non-shine-through construction limits legend visibility in dark environments despite the underlying RGB array. Additionally, the keyboard’s substantial 27.34 mm front lip height and 1,009-gram stationary weight create a rigid, stable typing platform that benefits from pairing with an ergonomic wrist rest during extended typing or competitive gaming sessions.
Technical Specifications
| Form Factor | Tenkeyless (TKL / 80%) |
| Chassis Material | Walnut wood frame and base with CNC aluminum side panels |
| Plate Material | Aluminum |
| Mounting Style | Tray-mount |
| Switch Type | Gateron Double-Rail Magnetic Nebula (Hall Effect) |
| Switch Features | Hot-swappable, pre-lubed, adjustable actuation points, Rapid Trigger |
| Keycaps | Double-shot PBT, OSA profile (non-shine-through) |
| Backlighting | North-facing per-key RGB |
| Connectivity | 2.4 GHz wireless, Bluetooth 5.2, USB Type-C wired |
| Polling Rate | 1000 Hz (2.4 GHz wireless and wired) |
| Keypress Latency | 3.4 ms end-to-end |
| Firmware | QMK open-source firmware |
| Configuration Software | Keychron Launcher (browser-based) |
| Battery Capacity | 4,000 mAh |
| Battery Life | Up to 110 hours (RGB backlight off) |
| Front Height | 27.34 mm |
| Weight | 1,009 g |
| OS Compatibility | macOS / Windows (physical toggle switch and OS keycaps included) |
- Pre-lubed Gateron Double-Rail Magnetic Nebula switches with Rapid Trigger and adjustable actuation
- Artisan walnut wood chassis reinforced with CNC-machined aluminum side accents
- Tri-mode wireless connectivity featuring 1,000 Hz polling on 2.4 GHz wireless and wired USB-C
- Substantial 4,000 mAh battery capacity providing up to 110 hours with lighting disabled
- Non-shine-through PBT keycaps prevent backlighting from illuminating key legends directly
- Tray-mount architecture offers a stiffer typing feel than modern gasket-isolated designs
- Relatively tall 27.34 mm front height may necessitate an external wrist rest
