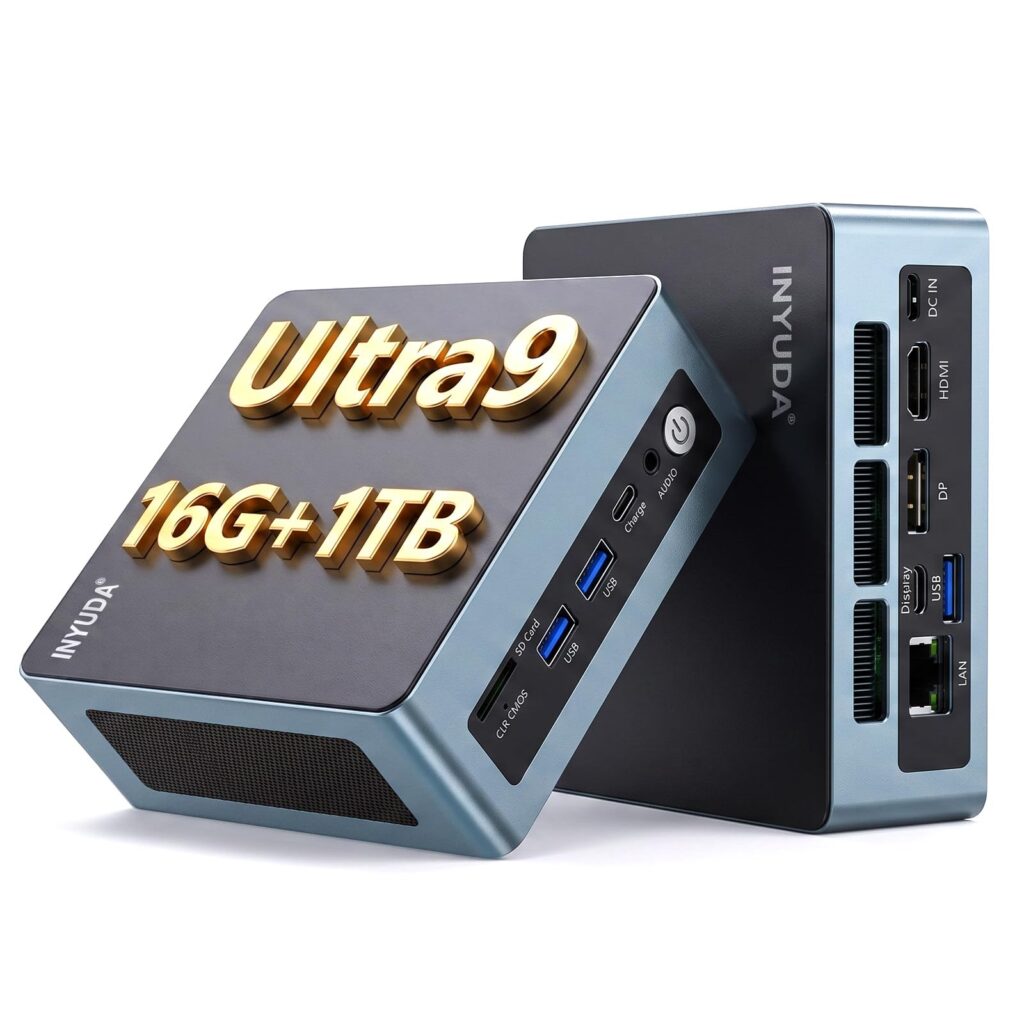

INYUDA Mini PC U9 285H Review: Arrow Lake Power Meets Network Quirks

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
▲ DOCUMENTED QUIRKS
Site Score
4.2 / 5.0
Buyer Guidance: Ideal for power users seeking dense Arrow Lake processing power and high-speed DDR5 expansion, provided you are comfortable adding your own M.2 Wi-Fi card and working within standard Gigabit Ethernet throughput.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.3 / 5.0
Build Quality & Physical Design (20%) 4.1 / 5.0
Thermal, Power & Acoustics (20%) 4.0 / 5.0
Reliability & Stability (20%) 4.3 / 5.0
Buyer Value (10%) 4.2 / 5.0
Score Rationale
A distinct contrast between flagship 16-core Arrow Lake-H silicon and legacy peripheral connectivity anchors the 4.2 composite score. Engineering & Architecture (4.3) integrates the potent Intel Core Ultra 9 285H processor, dual DDR5 SO-DIMM expansion up to 7200MHz, and 8K DisplayPort 2.1 output, but is held back by a 1Gbps Realtek RTL8111H controller and an unpopulated M.2 Wi-Fi slot. Build quality (4.1) delivers a rigid 5.00 x 4.61 x 1.69 in (127 x 117 x 43 mm) sub-liter enclosure that efficiently houses dual storage form factors. Thermal management (4.0) relies on dual copper heat pipes and an active turbo fan to handle the 45W base TDP, which will exhibit audible acoustics under full multi-core load. Reliability (4.3) benefits from a solid AMI BIOS platform with timed boot and PXE support, while Buyer value (4.2) offers outstanding compute density per dollar despite requiring user-supplied wireless networking.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • 16-core Intel Core Ultra 9 285H processor boosting up to 5.4 GHz with integrated Arc 140T graphics
  • Extensive memory expansion supporting dual DDR5 SO-DIMMs up to 7200MHz and 128GB capacity
  • Cutting-edge 8K display capability via DisplayPort 2.1 alongside HDMI 2.1 and USB-C video output
  • Dual internal storage layout accommodating both M.2 2280 NVMe and 2.5-inch SATA drives
✖ Cons
  • Limited to standard Gigabit Ethernet (Realtek RTL8111H) rather than faster 2.5GbE
  • No bundled Wi-Fi or Bluetooth adapter, requiring a user-supplied M.2 2230 E-Key module

Overview

Configured around Intel’s 16-core Arrow Lake-H architecture, the desktop platform pairs six Lion Cove performance cores and ten efficient cores with a 45W base thermal design power and peak clock speeds up to 5.4 GHz. Power delivery is routed through a dedicated Type-C DC-IN port, while an integrated Intel Arc 140T GPU with eight Xe cores drives graphics tasks alongside a dedicated 13 TOPS Intel AI Boost NPU. Memory capabilities are robust, providing two SO-DIMM slots capable of addressing up to 128GB of DDR5 memory across speeds up to 7200MHz. Display routing is equally advanced, featuring native 8K at 60Hz output over DisplayPort 2.1 alongside HDMI 2.1 and a multi-function USB Type-C port that provides 20W Power Delivery output.

The compact chassis measures 5.00 x 4.61 x 1.69 in (127 x 117 x 43 mm), maintaining a sub-liter desktop footprint with an operating range certified from -20°C to 60°C (-4°F to 140°F). Internal cooling is driven by dual copper heat pipes coupled to a high-rpm turbo cooling fan designed to evacuate heat generated across full multi-threaded workloads. Storage flexibility is a structural highlight, accommodating an M.2 2280 NVMe/SATA slot alongside a secondary 2.5-inch drive bay connected via an FPC SATA ribbon cable, complemented externally by four 10Gbps USB 3.2 Gen 2 ports and a MicroSD card reader. However, the networking subsystem introduces an engineering compromise: wired connectivity relies on a legacy 1Gbps Realtek RTL8111H Ethernet controller rather than a 2.5GbE interface, and wireless networking requires users to supply their own M.2 2230 E-Key Wi-Fi and Bluetooth module.

System firmware is built on an AMI BIOS managed by an ITE8613E Super I/O controller, incorporating practical infrastructure features including timed scheduled booting and PXE diskless network deployment. For compact desktop workstations, homelab compute nodes, or commercial client terminals, the system delivers high processing density and versatile memory scaling, provided the prospective deployment does not mandate out-of-the-box Wi-Fi or multi-gigabit local networking.

Technical Specifications

Brand INYUDA
Model Mini PC U9 285H
Processor Intel Core Ultra 9 285H
Architecture Arrow Lake-H
Core Configuration 16 Cores (6 Performance Cores, 8 Efficient Cores, 2 Low-Power Efficient Cores)
Total Threads 16
Max Turbo Frequency 5.4 GHz
Base TDP 45W
L3 Cache 24MB
Neural Processing Unit Intel AI Boost (13 TOPS Int8)
Graphics Intel Arc 140T (8 Xe Cores, up to 2.35 GHz)
Memory Support 2x SO-DIMM DDR5 (4800/5600/6000/6400/6800/7200MHz), up to 128GB
Primary Storage 1x M.2 2280 M-Key (NVMe/SATA)
Secondary Storage 1x 2.5-inch SATA via FPC ribbon port
Removable Storage MicroSD / TF card slot
Video Outputs 1x DisplayPort 2.1 (up to 7680x4320@60Hz), 1x HDMI 2.1 (up to 4096x2304@60Hz), 1x USB Type-C (DP)
Ethernet Realtek RTL8111H Gigabit Ethernet (10/100/1000 Mbps)
Wireless Expansion 1x M.2 2230 E-Key slot for Wi-Fi / Bluetooth modules (module not included)
USB Ports 4x USB 3.2 Gen 2 (10Gbps), 1x USB Type-C (PD 20W / DP)
Audio Realtek ALC897, 3.5mm combo audio jack
Power Input Type-C DC-IN
Cooling Solution Dual copper heat pipes with turbo blower fan
Dimensions 5.00 x 4.61 x 1.69 in (127 x 117 x 43 mm)
Operating Temperature Range -20°C to 60°C (-4°F to 140°F)
BIOS & Management AMI BIOS, ITE8613E I/O controller, PXE diskless boot, timed boot
📋
