GMKtec G5S Review: Palm-Sized Dual-4K Micro Node

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
▲ DOCUMENTED QUIRKS
Site Score
4.1 / 5.0
Buyer Guidance: Ideal for digital signage, media streaming, and lightweight background micro-server deployments where desk space is nonexistent, provided 8GB of soldered non-expandable memory satisfies your workload.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 3.9 / 5.0
Build Quality & Physical Design (20%) 4.0 / 5.0
Thermal, Power & Acoustics (20%) 4.1 / 5.0
Reliability & Stability (20%) 4.2 / 5.0
Buyer Value (10%) 4.2 / 5.0
Score Rationale
A soldered 8GB memory configuration and restrictive M.2 2242 storage footprint anchor the composite score at 4.1, balancing remarkable ultra-compact packaging against long-term expansion limitations. Engineering & Architecture (3.9) delivers competent dual-HDMI 4K@60Hz output and Wi-Fi 6 connectivity around the 10W Intel Celeron N5095 SoC, though power delivery relies on a proprietary 12V USB-C rail rather than standard USB-PD renegotiation. Build quality (4.0) utilizes an injection-molded polymer chassis that maintains structural rigidity across its miniature 206 g frame. Acoustic profile and thermal management (4.1) manage the 10W Jasper Lake processor with an internal fan that remains composed during desktop idling but exhibits an audible high-frequency pitch under sustained multi-core load. Reliability (4.2) is reinforced by mature 10nm silicon and solid-state storage stability, while buyer value (4.2) remains compelling for lightweight commercial kiosks and space-constrained media playback.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • Ultra-compact 72 x 72 x 44.5 mm palm-sized chassis weighing only 7.27 oz (206 g)
  • Dual HDMI 2.0 outputs supporting simultaneous dual 4K displays at 60Hz
  • Equipped with Wi-Fi 6, Bluetooth 5.2, and Gigabit Ethernet networking
  • Low power envelope based on an efficient 10W Intel Celeron N5095 processor
✖ Cons
  • 8GB LPDDR4 memory is permanently soldered and cannot be upgraded
  • Storage expansion is restricted to the shorter M.2 2242 form factor over PCIe 3.0 x2 or SATA
  • USB-C power port requires a fixed 12V input rather than universal USB-PD compliance

Overview

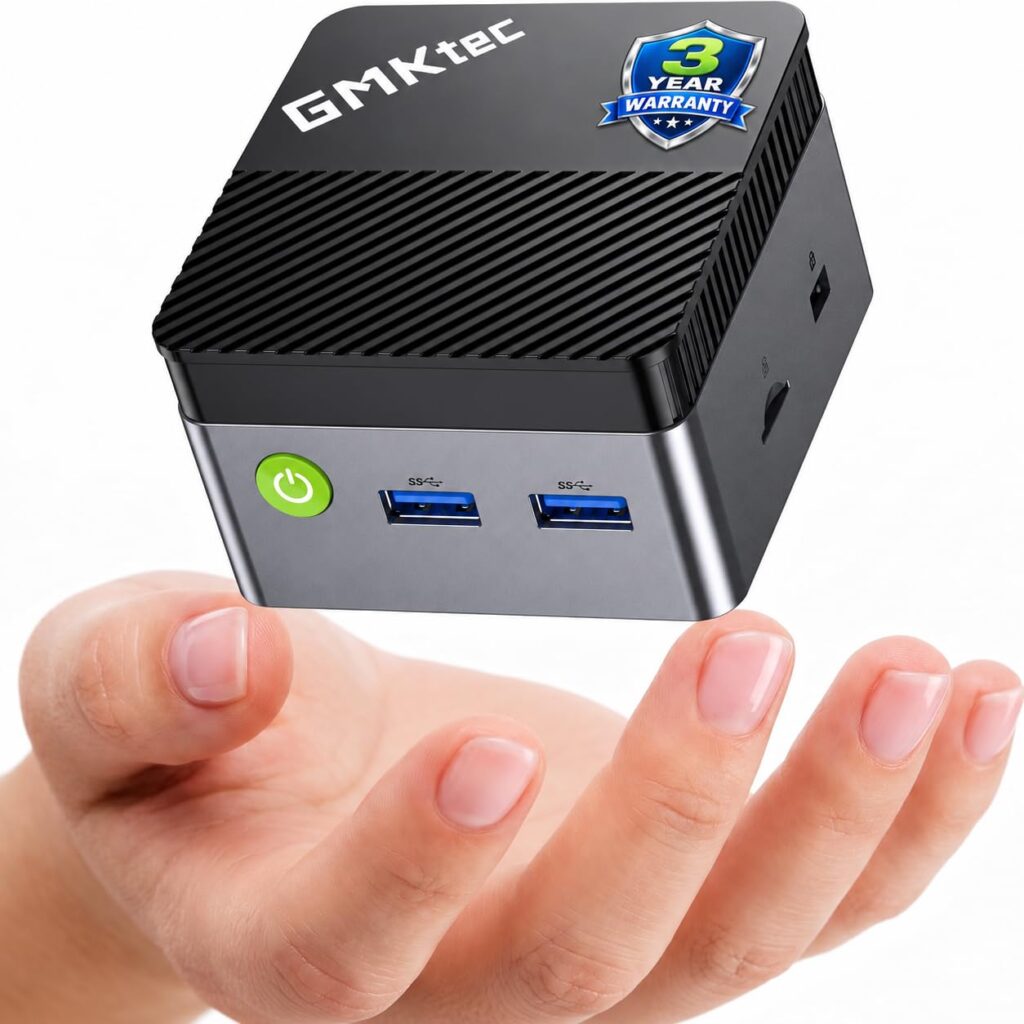

Occupying a sub-quarter-liter desktop footprint measuring 2.83 x 2.83 x 1.75 in (72 x 72 x 44.5 mm) and weighing just 7.27 oz (206 g), the GMKtec G5S re-engineers entry-level x86 computing around extreme physical space constraints. Built within an injection-molded polymer chassis, the palm-sized enclosure integrates VESA mounting compatibility for discrete rear-panel monitor attachment or space-constrained kiosk installations. Under the hood, processing is driven by an Intel Celeron N5095 quad-core Jasper Lake processor operating with a 10W TDP, paired with 8GB of soldered LPDDR4 memory. While direct competitors like the Beelink Mini S12 offer user-accessible SO-DIMM expansion in a larger enclosure, the G5S intentionally prioritizes footprint reduction, accepting a fixed 8GB ceiling and an M.2 2242 storage boundary in exchange for pocketable portability.

I/O architecture is surprisingly versatile for the miniature scale, provisioning dual HDMI 2.0 interfaces that drive simultaneous 4K resolutions at 60Hz alongside three 5 Gbps USB-A 3.2 Gen1 ports, Gigabit Ethernet, and Wi-Fi 6 wireless connectivity. Power delivery is routed through a dedicated USB-C port, though buyers must note this rail requires a fixed 12V/3A DC supply rather than adhering to full dynamic USB Power Delivery protocol negotiation. Thermal dissipation relies on a compact internal copper heatsink and blower fan assembly exhausting out the perimeter vents; while this active setup easily manages the 10W Jasper Lake die during lightweight office workflows, the small-diameter fan spins up with an audible high-frequency whine under sustained multi-thread computational loads.

Technical Specifications

Brand GMKtec
Model Nucbox G5S
Form Factor Ultra-Compact Mini PC
Dimensions 2.83 x 2.83 x 1.75 in (72 x 72 x 44.5 mm)
Weight 7.27 oz (206 g)
Processor Intel Celeron N5095 (4 Cores / 4 Threads, 2.0 GHz Base, up to 2.9 GHz Burst)
Processor TDP 10W
Graphics Intel UHD Graphics (16 EUs, up to 750 MHz)
Memory 8GB LPDDR4 2400 MT/s (Soldered Onboard)
Storage 128GB M.2 2242 SATA SSD
Storage Expansion 1x M.2 2242 slot (PCIe 3.0 x2 / SATA support up to 8TB)
Video Output 2x HDMI 2.0 (Dual 4K @ 60Hz)
Networking Gigabit Ethernet RJ45 (Realtek RTL8111H)
Wireless Connectivity Wi-Fi 6 (802.11ax), Bluetooth 5.2
USB Ports 3x USB-A 3.2 Gen1 (5 Gbps)
Power Input USB-C (12V / 3A DC input, 36W)
Audio 1x 3.5mm headphone/mic combo jack
Card Reader 1x MicroSD slot
📋
