- Three high-performance Momentum 140 mm PWM fans with Liquid Crystal Polymer blades and Fluid Dynamic Bearings included
- FSC-certified solid walnut front trim and matching wooden feet paired with rigid, shatterproof solid steel side panels
- Generous component clearances supporting graphics cards up to 16.73 in (425 mm) and dual 360 mm radiators
- High-speed front panel connectivity featuring a 20 Gbps USB 3.2 Gen 2x2 Type-C port
- Omits an included rear 120 mm exhaust fan out of the box, requiring an aftermarket addition for optimal thermal balance
- Rear cable management routing space can become cramped when deploying thick wiring harnesses on back-connect motherboards
- Power supply installation is slightly fiddly when the primary internal drive cage is installed
Overview

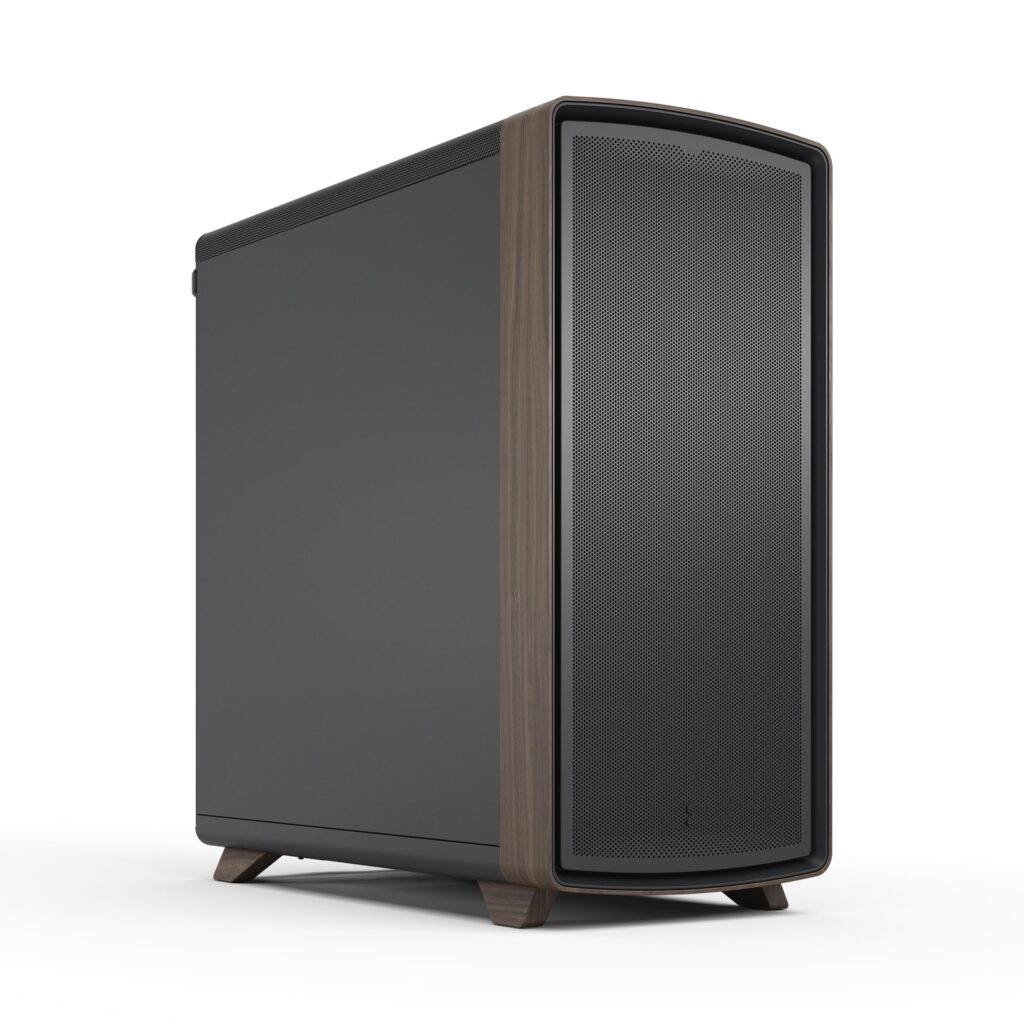

Anchored by a 19.49 x 9.02 x 20.28 in (495 x 229 x 515 mm) footprint and weighing 21.61 lbs (9.80 kg), the chassis integrates seamlessly into modern workspaces through FSC-certified solid walnut front-fascia trim and matching solid wood pedestal feet. Rather than relying on fragile glass side assemblies, this solid variant utilizes heavy-gauge pressed steel panels on both lateral sides, providing substantial structural rigidity while eliminating acoustic resonance and panel breakage risks. Internally, the 58.4-liter enclosure accommodates high-end desktop hardware with generous clearances, supporting graphics cards up to 16.73 in (425 mm), CPU air coolers up to 6.81 in (173 mm), and power supplies up to 9.96 in (253 mm). Architectural cutouts provide native clearance for modern rear-connector motherboard layouts (including ASUS BTF, MSI Project Zero, and Gigabyte Stealth), though the rear routing channel can become congested under thick 24-pin ATX and multi-rail PCIe power harnesses.
Thermal management is driven by a fine-perforation steel front intake backed by three pre-installed 140 mm Momentum PWM fans. Engineered with Liquid Crystal Polymer (LCP) blades and Fluid Dynamic Bearings (FDB), these fans operate across a 350 to 1,800 RPM range, producing up to 79.8 CFM of airflow per fan with acoustic levels rated between 28.0 and 31.9 dBA. An integrated internal graphics card air guide channels fresh intake airflow directly toward GPU cooler fins to minimize internal heat pooling. However, because factory assembly omits a rear 120 mm exhaust fan, passive exhaust pressure can cause thermal buildup around upper motherboard VRM heatsinks under sustained heavy computing loads unless an aftermarket fan is added. The chassis also accommodates dual 360 mm or 280 mm liquid cooling radiators across its top and front brackets, while front connectivity is handled by a 20 Gbps USB 3.2 Gen 2×2 Type-C port, dual 5 Gbps USB Type-A ports, and a 3.5 mm audio combo jack.
Long-term operational reliability benefits from an entirely passive electromechanical layout that avoids proprietary ARGB hub software, driver bloat, or fragile microcontrollers, relying instead on standard 4-pin PWM signaling governed directly by the motherboard BIOS. Maintenance is straightforward with a full-length, slide-out bottom dust filter and tool-free quick-release panel latches, though the front intake relies on its primary perforated steel mesh without a secondary fine nylon cloth layer. For builders seeking a discreet, acoustically dampened enclosure that avoids the ostentation and fragility of glass panels, the chassis provides a durable, furniture-grade foundation with only minor cable-dressing compromises.
Technical Specifications
| Brand | Fractal Design |
| Model | Summit Black Solid Walnut |
| Form Factor | Mid-Tower ATX |
| Dimensions (L X W X H) | 19.49 x 9.02 x 20.28 in (495 x 229 x 515 mm) |
| Chassis Volume | 58.4 L |
| Net Weight | 21.61 lbs (9.80 kg) |
| Chassis Materials | Heavy-gauge steel, FSC-certified solid walnut wood, ABS polymer |
| Side Panels | Solid steel with tool-free push-to-lock latches |
| Motherboard Support | E-ATX (up to 277 mm / 10.91 in wide), ATX, Micro-ATX, Mini-ITX (Back-Connect / BTF / Project Zero compatible) |
| Expansion Slots | 7 full-height horizontal slots |
| Maximum GPU Length | 16.73 in (425 mm) |
| Maximum CPU Cooler Height | 6.81 in (173 mm) |
| Maximum PSU Length | 9.96 in (253 mm) |
| Pre Installed Fans | 3x Momentum 14 (140 mm) PWM front intake |
| Fan Bearing & Blade Material | Fluid Dynamic Bearing (FDB), Liquid Crystal Polymer (LCP) |
| Fan Speed Range | 350 - 1,800 RPM |
| Fan Airflow (Maximum) | 79.8 CFM |
| Fan Acoustic Noise Rating | 28.0 - 31.9 dBA |
| Total Fan Capacity | 3x 120/140 mm (Front), 3x 120 mm / 2x 140 mm (Top), 1x 120 mm (Rear) |
| Radiator Support (Front) | Up to 360 mm / 280 mm |
| Radiator Support (Top) | Up to 360 mm / 280 mm |
| Radiator Support (Rear) | 120 mm |
| Front I/O Interface | 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.2 Gen 1 Type-A (5 Gbps), 1x 3.5 mm Audio/Mic combo jack, Power button |
| Drive Bay Support | 2x 3.5" / 2.5" drive trays, 4x 2.5" dedicated drive mounts |
| Dust Filtration | Full-length slide-out bottom PSU filter, perforated steel front intake |
| GPU Support Hardware | Integrated adjustable anti-sag bracket & airflow guide duct |
Recommended Alternatives in PC Cases
At a Glance
How reliable is the Fractal Design Summit Black Solid Walnut Review: Scandinavian Woodcraft Meets Airflow Engineering according to Mizex audits?
An exceptional choice for builders prioritizing premium wooden aesthetics and quiet solid-panel airflow, provided they account for the need to add an aftermarket rear exhaust fan and navigate tighter back-connect cable clearances.
What are the known quirks or drawbacks of the Fractal Design Summit Black Solid Walnut Review: Scandinavian Woodcraft Meets Airflow Engineering?
Our reliability audit identified the following documented caveats:
- Omits an included rear 120 mm exhaust fan out of the box, requiring an aftermarket addition for optimal thermal balance
- Rear cable management routing space can become cramped when deploying thick wiring harnesses on back-connect motherboards
- Power supply installation is slightly fiddly when the primary internal drive cage is installed
What are the key engineering highlights of the Fractal Design Summit Black Solid Walnut Review: Scandinavian Woodcraft Meets Airflow Engineering?
The top strengths recorded in our evaluation include:
- Three high-performance Momentum 140 mm PWM fans with Liquid Crystal Polymer blades and Fluid Dynamic Bearings included
- FSC-certified solid walnut front trim and matching wooden feet paired with rigid, shatterproof solid steel side panels
- Generous component clearances supporting graphics cards up to 16.73 in (425 mm) and dual 360 mm radiators
- High-speed front panel connectivity featuring a 20 Gbps USB 3.2 Gen 2x2 Type-C port
