FIREBAT AM02 Review: Dual-NIC Expansion Meets Memory Variance

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
▲ DOCUMENTED QUIRKS
Site Score
4.2 / 5.0
Buyer Guidance: Verify whether your intended configuration includes modular SO-DIMM slots or fixed LPDDR5 memory before purchasing, as the AM02 delivers exceptional dual-storage and networking versatility for compact desktop deployments.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.2 / 5.0
Build Quality & Physical Design (20%) 4.1 / 5.0
Thermal, Power & Acoustics (20%) 4.0 / 5.0
Reliability & Stability (20%) 4.3 / 5.0
Buyer Value (10%) 4.4 / 5.0
Score Rationale
Architectural memory variance across production revisions—where certain SKUs feature soldered LPDDR5 instead of modular SO-DIMM slots—acts as the primary constraint on an otherwise capable platform, tempering Engineering & Architecture to 4.2. Real-World Reliability scores 4.3 supported by mature AMD silicon and stable peripheral controller integration. Build quality rates at 4.1 with a rigid, space-efficient enclosure supported by bundled VESA mounting hardware. Thermal management reaches 4.0, utilizing a single active blower fan and dual copper heat pipes calibrated to handle up to 45W TDP envelopes. Buyer value settles at 4.4, anchored by dual PCIe 4.0 M.2 slots and dual Ethernet controllers, though buyers must verify memory modularity per batch.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • Dual M.2 2280 PCIe 4.0 NVMe SSD slots supporting up to 4TB of high-speed internal storage
  • Simultaneous triple 4K@60Hz HDR display output across HDMI 2.0, DisplayPort, and full-featured USB-C
  • Comprehensive networking with dual Ethernet ports (1Gbps / 2.5Gbps) and Wi-Fi 6 connectivity
  • Bundled VESA bracket enables space-saving mounting behind monitors or on vertical surfaces
✖ Cons
  • Architectural memory variance across production revisions, with select base configurations utilizing non-upgradeable soldered LPDDR5

Overview

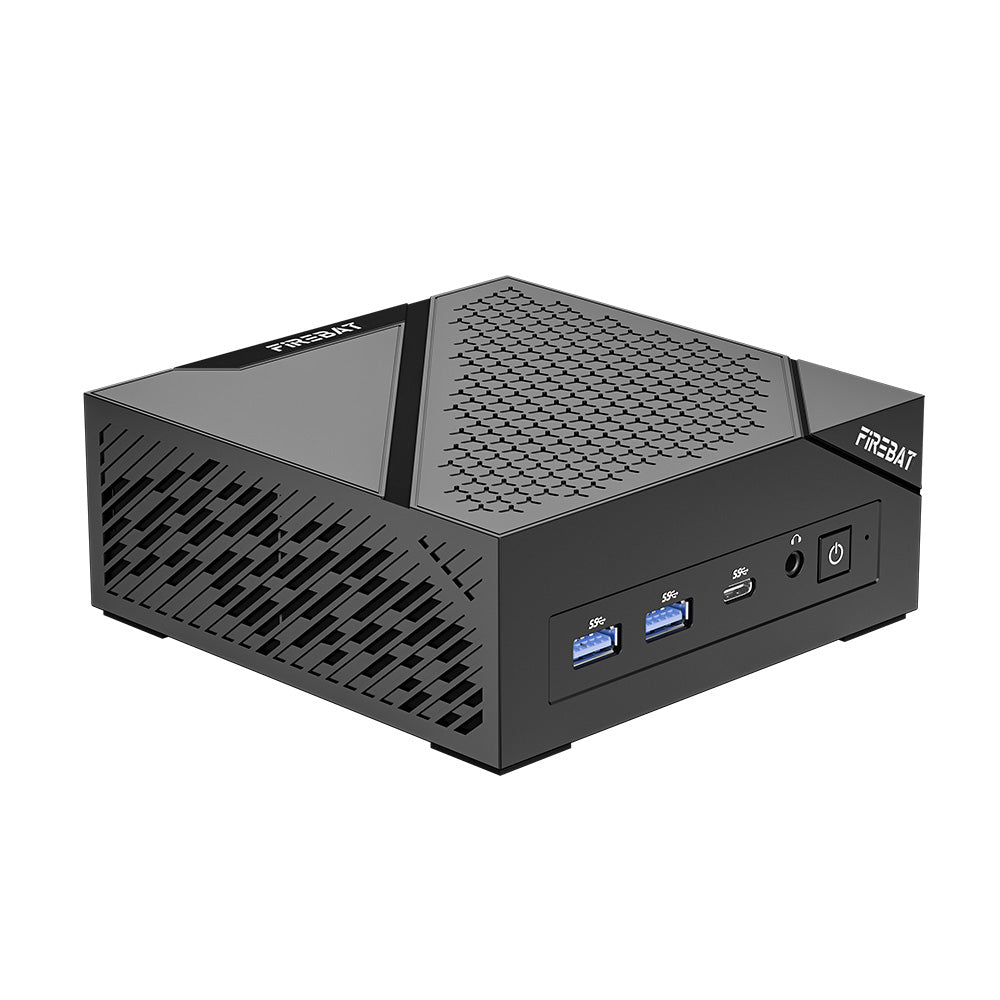

Integrating an extensive high-bandwidth I/O cluster with triple independent display outputs and dual Ethernet controllers, the FIREBAT AM02 addresses multi-monitor workstation and networking node deployments within an ultra-compact footprint. The platform accommodates multiple AMD mobile architectures, spanning the 15W TDP Ryzen 5 7430U up to the 45W TDP Ryzen 5 6600H and higher-tier Ryzen 7 H 255. Video output pipelines leverage HDMI 2.0, DisplayPort, and a multi-function 10 Gbps USB-C interface to deliver simultaneous triple 4K@60Hz HDR streams, while the networking subsystem integrates discrete 1Gbps and 2.5Gbps LAN ports alongside a Realtek RTL8852BE Wi-Fi 6 and Bluetooth 5.2 module. Power delivery relies on an external 96W DC power adapter to supply both the APU and internal expansion buses.

Thermal regulation inside the chassis is driven by a single active centrifugal fan linked to dual copper heat pipes designed to exhaust heat from mobile APU packages under sustained operating loads. Internal expansion represents one of the chassis’s primary strengths, accommodating two M.2 2280 PCIe 4.0 NVMe SSD slots supporting up to 4TB of aggregate storage. However, production batches present a significant architectural divergence in memory implementation: while select configurations offer two DDR5 SO-DIMM slots scalable up to 96GB, alternative baseline revisions utilize 16GB of soldered, non-upgradeable LPDDR5 memory. The chassis incorporates bundled VESA mounting bracket hardware for clean rear-monitor mounting, running Windows 11 out of the box.

Technical Specifications

Brand FIREBAT
Model AM02
Processor Configurations AMD Ryzen 5 6600H (6C/12T, up to 4.5 GHz, 45W TDP) / Ryzen 5 7430U (6C/12T, up to 4.3 GHz, 15W TDP) / Ryzen 7 H 255 (8C/16T, up to 4.9 GHz)
Graphics AMD Radeon 660M (1900 MHz) / Radeon RX Vega 7 (1800 MHz) / Radeon 780M (2600 MHz)
Memory Dual DDR5 SODIMM slots (up to 96GB) or 16GB soldered dual-channel LPDDR5 (configuration dependent)
Storage Interface Dual M.2 2280 PCIe 4.0 NVMe SSD slots (up to 4TB total capacity)
Video Outputs 1x HDMI 2.0, 1x DisplayPort (DP 1.4/2.0), 1x USB-C (Triple 4K@60Hz HDR output)
USB Ports 1x USB-C 3.2 (PD/DP/Data, 10 Gbps), 3x USB-A 3.2 (10 Gbps), 1x USB-A 2.0
Networking Dual Ethernet LAN (1Gbps / 2.5Gbps), Wi-Fi 6 (Realtek RTL8852BE 802.11ax), Bluetooth 5.2
Audio Interface 3.5mm headphone/microphone audio combo jack
Cooling Solution Single active fan with dual copper heat pipes
Power Supply 96W external power adapter
Mounting Support VESA wall-mount bracket compatible
Operating System Windows 11
📋

Primary Sources & Audited Citations

Compare & Research

Recommended Alternatives in Mini PCs

Compare Other Models →
Equal Rating
GMKtec M6 Ultra

GMKtec M6 Ultra

Standout Dual Ethernet Drives Compact Expansion

Index: 4.2 / 5.0
Equal Rating
Minisforum AtomMan G1 Pro-89A6

Minisforum AtomMan G1 Pro-89A6

Strict Power Caps Restrain Graphics Performance

Index: 4.2 / 5.0
Equal Rating
Apple 2026 Mac Studio M5 Max

Apple 2026 Mac Studio M5 Max

Compact Workstation Density Awaiting Thermal Teardown

Index: 4.2 / 5.0

At a Glance

How reliable is the FIREBAT AM02 Review: Dual-NIC Expansion Meets Memory Variance according to Mizex audits?
Mizex Composite Score: 4.2 / 5.0 ▲ DOCUMENTED QUIRKS

Verify whether your intended configuration includes modular SO-DIMM slots or fixed LPDDR5 memory before purchasing, as the AM02 delivers exceptional dual-storage and networking versatility for compact desktop deployments.

What are the known quirks or drawbacks of the FIREBAT AM02 Review: Dual-NIC Expansion Meets Memory Variance?

Our reliability audit identified the following documented caveats:

  • Architectural memory variance across production revisions, with select base configurations utilizing non-upgradeable soldered LPDDR5
What are the key engineering highlights of the FIREBAT AM02 Review: Dual-NIC Expansion Meets Memory Variance?

The top strengths recorded in our evaluation include:

  • Dual M.2 2280 PCIe 4.0 NVMe SSD slots supporting up to 4TB of high-speed internal storage
  • Simultaneous triple 4K@60Hz HDR display output across HDMI 2.0, DisplayPort, and full-featured USB-C
  • Comprehensive networking with dual Ethernet ports (1Gbps / 2.5Gbps) and Wi-Fi 6 connectivity
  • Bundled VESA bracket enables space-saving mounting behind monitors or on vertical surfaces
