- Station-integrated 5,200 mAh battery enables up to 110 minutes of cordless operation without wall outlet proximity.
- 10,000 Pa brushless vacuum motor coupled with TruEdge 2.0 edge scrubbers achieves secure vertical grip and tight corner coverage.
- Redundant 10-tier safety architecture includes an 800 N base suction anchor and 100 kg (220.5 lbs) tensile compound tether.
- Tri-nozzle wide-angle atomization provides even mist distribution across a 4.06 fl oz (120 ml) internal reservoir.
- Requires a minimum window pane footprint of 11.81 x 15.75 in (300 x 400 mm), ruling out small divided panes or transom glass.
- Base station combined weight of 11.46 lbs (5.2 kg) creates noticeable heft when transporting between disparate cleaning zones.
- Microfiber pads require regular manual washing during heavy jobs to prevent tread slippage on excess moisture.
Overview

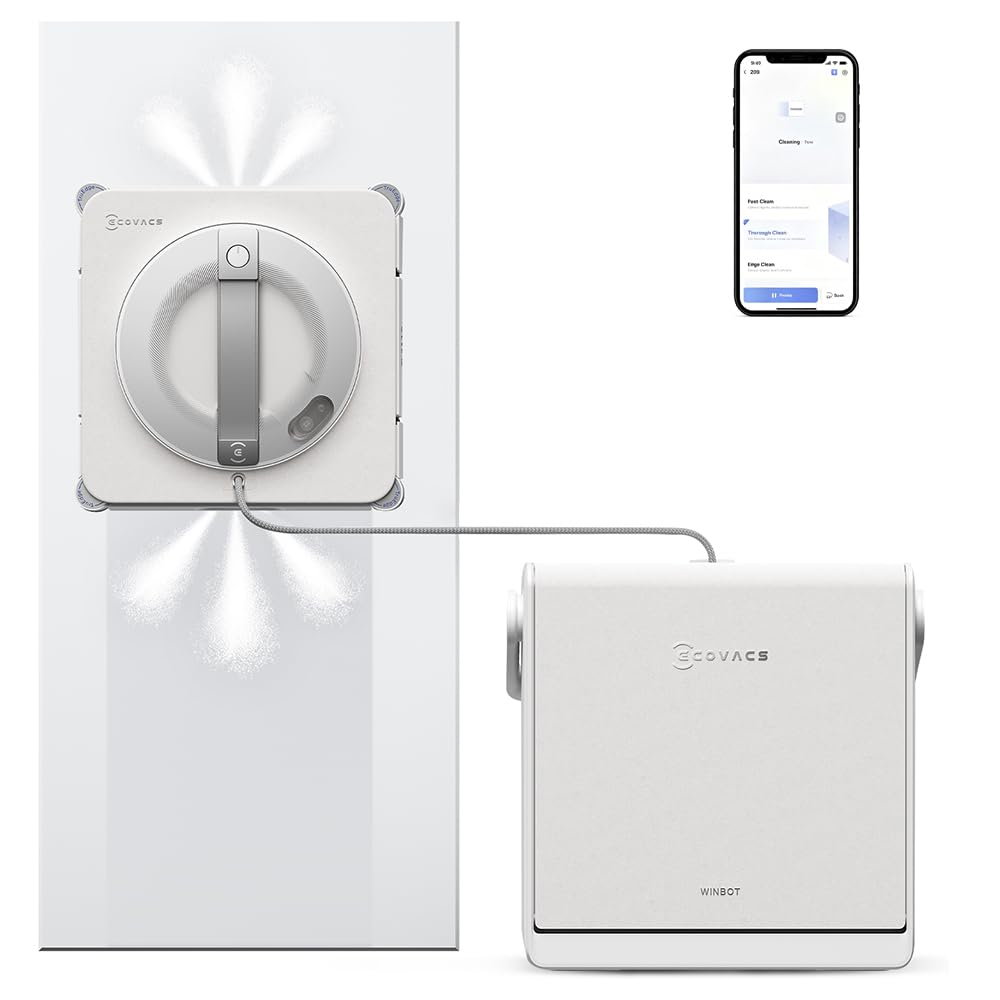

Decentralizing power storage and structural tethering into a weighted 11.46 lbs (5.2 kg) multi-function base station transforms vertical glass maintenance from a high-wire hazard into an engineered, fail-safe routine. ECOVACS equips the WINBOT W2S PRO Omni with a high-torque brushless vacuum motor generating up to 10,000 Pa of pneumatic adhesion, paired with TruEdge 2.0 radial edge-cleaning mechanics and a tri-nozzle wide-angle atomization system. This physical separation keeps the climbing unit agile at 4.63 lbs (2.1 kg) with a low-profile envelope of 10.71 x 10.71 x 2.99 in (272 x 272 x 76 mm), while delivering continuous 24V power and mechanical fall-arrest protection through a reinforced composite tether capable of withstanding 220.5 lbs (100 kg) of tensile force.
System navigation across framed and frameless architectural glazing is managed by the WIN-SLAM 4.0 path-planning suite, synchronized with optocoupler edge sensors providing a rapid 0.2-second obstacle detection response. Surface conditioning is sustained by an internal 4.06 fl oz (120 ml) fluid reservoir routed to three micro-spray nozzles that emit a fine 90-degree fan mist, softening grime immediately ahead of the microfiber pad without flooding the glass. Acoustically, the brushless suction impeller registers at 66 dBA under maximum load, muffled by internal four-stage acoustic dampening passages that suppress high-frequency motor resonance.
Energy delivery is anchored by the base station’s 5,200 mAh lithium-ion battery, providing up to 110 minutes of cord-free operation covering approximately 807 sq ft (75 m²) per charge cycle. The station secures itself against flat floors or balcony decks using an active suction anchor exerting over 179.8 lbf (800 N) of holding force, combined with automatic motorized cord management. While exceptionally capable on broad picture windows and floor-to-ceiling panels, practical deployment requires minimum pane dimensions of 11.81 x 15.75 in (300 x 400 mm), and heavily soiled exterior glass requires periodic pad maintenance to prevent tread slippage.
Technical Specifications
| Model | ECOVACS WINBOT W2S PRO Omni |
| Device Type | Robotic Window Cleaner with Multifunctional Dock |
| Robot Dimensions | 10.71 x 10.71 x 2.99 in (272 x 272 x 76 mm) |
| Robot Weight | 4.63 lbs (2.1 kg) |
| Station Dimensions | 12.20 x 6.69 x 12.20 in (310 x 170 x 310 mm) |
| Station Weight | 11.46 lbs (5.2 kg) |
| Maximum Suction Adhesion | 10,000 Pa |
| Station Anchoring Force | >179.8 lbf (>800 N) |
| Tether Tensile Rating | 220.5 lbs (100 kg) |
| Station Battery Capacity | 5,200 mAh Lithium-ion |
| Battery Runtime | Up to 110 minutes (cordless station mode) |
| Rated Power | 66 W |
| Operating Voltage | 24 V DC |
| Operating Noise Level | 66 dBA |
| Water Reservoir Capacity | 4.06 fl oz (120 ml) |
| Spray Architecture | Tri-Nozzle Wide-Angle Mist Atomization |
| Edge Cleaning Technology | TruEdge 2.0 Radial Edge Lock |
| Sensor Response Latency | 0.2 seconds (Optocoupler Edge Detection) |
| Navigation System | WIN-SLAM 4.0 Intelligent Path Planning |
| Minimum Operating Glass Size | 11.81 x 15.75 in (300 x 400 mm) |
| Wireless Connectivity | Wi-Fi (2.4 GHz) and Bluetooth |
Recommended Alternatives in Smart Home & IoT
At a Glance
How reliable is the ECOVACS WINBOT W2S PRO Omni Review: Cordless Docking and 10kPa Pneumatics according to Mizex audits?
A premier automated window cleaning platform for expansive or high-elevation glass, provided your windows satisfy the 11.81 x 15.75 in (300 x 400 mm) minimum pane requirement.
What are the known quirks or drawbacks of the ECOVACS WINBOT W2S PRO Omni Review: Cordless Docking and 10kPa Pneumatics?
Our reliability audit identified the following documented caveats:
- Requires a minimum window pane footprint of 11.81 x 15.75 in (300 x 400 mm), ruling out small divided panes or transom glass.
- Base station combined weight of 11.46 lbs (5.2 kg) creates noticeable heft when transporting between disparate cleaning zones.
- Microfiber pads require regular manual washing during heavy jobs to prevent tread slippage on excess moisture.
What are the key engineering highlights of the ECOVACS WINBOT W2S PRO Omni Review: Cordless Docking and 10kPa Pneumatics?
The top strengths recorded in our evaluation include:
- Station-integrated 5,200 mAh battery enables up to 110 minutes of cordless operation without wall outlet proximity.
- 10,000 Pa brushless vacuum motor coupled with TruEdge 2.0 edge scrubbers achieves secure vertical grip and tight corner coverage.
- Redundant 10-tier safety architecture includes an 800 N base suction anchor and 100 kg (220.5 lbs) tensile compound tether.
- Tri-nozzle wide-angle atomization provides even mist distribution across a 4.06 fl oz (120 ml) internal reservoir.
