- Active self-cleaning roller mechanism with 32-way fresh-water jets and continuous dirty fluid extraction
- High-velocity vacuum motor producing 40,000 Pa suction and 34.8 CFM airflow
- All-in-one OMNI dock integrates 212°F (100°C) water sanitization and 113°F (45°C) hot air drying
- Motorized 0.59 in (15 mm) mop lift prevents damp textile contact when vacuuming carpets
- Multi-chamber water tank and automated evacuation dock requires a large physical footprint
- 0.59 in (15 mm) roller lift clearance may not fully clear thick, high-pile shag carpeting
Overview
Transitioning automated mopping from passive damp-pad dragging to active fluid scrubbing, the DEEBOT T90 MAX centers its floor-care architecture on an active cylindrical roller mechanism. Operating at 200 RPM, the 10.6 in (270 mm) microfiber roller exerts 3,800 Pa of downward pressure to break down stuck-on residues rather than merely buffing surface dust. Beneath the chassis, a continuous self-cleaning assembly utilizes a 32-way pressurized fresh-water manifold coupled with an integrated scraper blade, constantly rinsing the roller during operation and extracting dirty fluid into an internal recovery channel. This closed-loop fluid cycle leaves approximately 67% less residual moisture across hard flooring while ensuring the cleaning surface does not redistribute contaminants across adjoining rooms.
Dry debris extraction runs in tandem through an intake motor generating 40,000 Pa of BLAST suction and 34.8 CFM of airflow, drawing heavy particles and embedded rug grit into the primary ducting. To minimize hair wrap across high-traffic domestic environments, the main intake utilizes ZeroTangle 4.0 spiral brush geometry designed to channel strands directly into the airstream before binding occurs around axle bearings. Spatial awareness and perimeter coverage rely on LiDAR scanning paired with TrueDetect 3D optical sensing and TruEdge 3.0 mechanical edge extension, sweeping within millimeters of baseboards and table legs. When transitioning from hardwood to carpet, an internal actuator lifts the entire mopping assembly by 0.59 in (15 mm), allowing the robot to vacuum low-to-medium pile textiles without transferring moisture or requiring manual boundary zones.

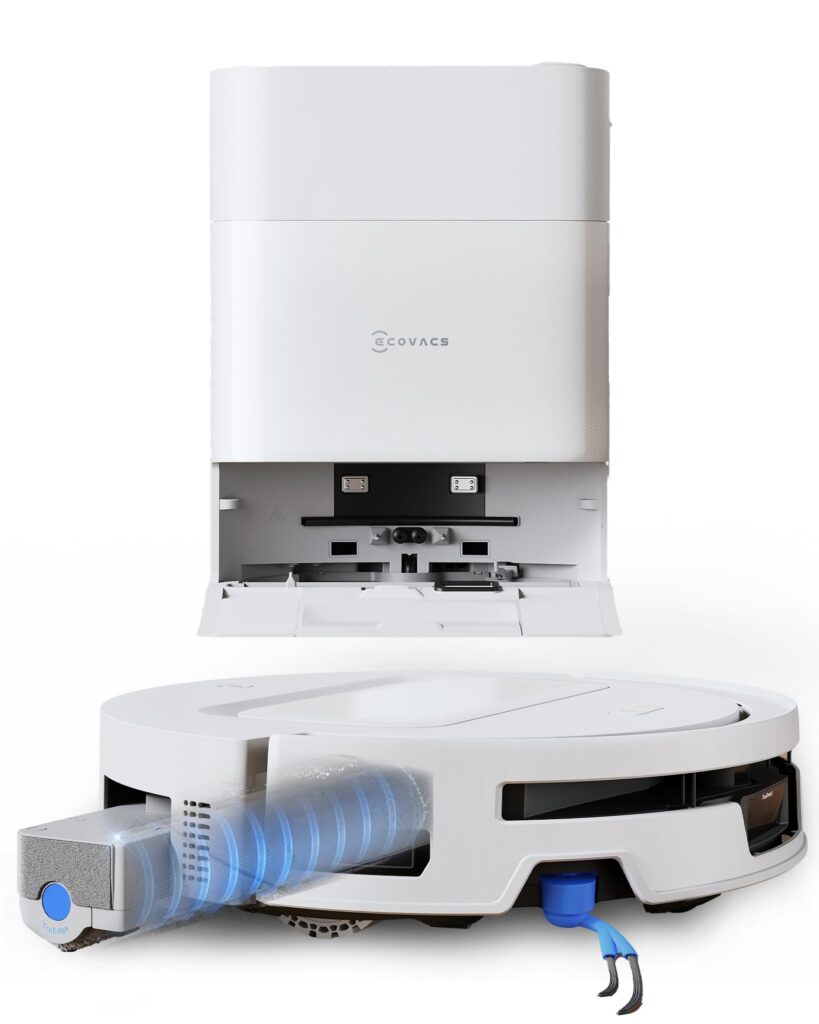

Maintenance autonomy culminates in the multi-stage OMNI docking station, which handles automated dustbin evacuation, roller maintenance, and sanitization cycles. Rather than relying on ambient-temperature rinsing, the base station heats fresh water to 212°F (100°C) during docking cycles to dissolve greasy films and sanitize the microfiber fibers before engaging a 113°F (45°C) warm-air convective drying circuit that inhibits microbial growth. System scheduling, zone partitioning, and suction profiles are managed through the companion ECOVACS Home application, alongside voice commands and Apple Watch controls. While the comprehensive docking station demands dedicated physical floor clearance, the tight coordination between fluid scraping, thermal station cycles, and autonomous navigation delivers a remarkably hands-off floor care experience.
Technical Specifications
| Brand | ECOVACS |
| Model | DEEBOT T90 MAX |
| Hardware Category | Smart Home & IoT |
| Suction Power | 40,000 Pa (BLAST Suction) |
| Airflow Volume | 34.8 CFM |
| Mopping Architecture | OZMO ROLLER 3.0 Instant Self-Washing Mopping Technology |
| Mop Downward Pressure | 3,800 Pa |
| Roller Rotation Speed | 200 RPM |
| Roller Width | 10.6 in (270 mm) |
| Roller Material | Microfiber |
| Active Self Cleaning Assembly | 32-way pressurized fresh-water flow with dirty water scraper |
| Carpet Clearance Auto Lift | 0.59 in (15 mm) |
| Main Brush Mechanism | ZeroTangle 4.0 anti-tangle brushes |
| Navigation & Obstacle Detection | LiDAR navigation with TrueDetect 3D obstacle avoidance |
| Edge Cleaning Technology | TruEdge 3.0 |
| Dock Wash Water Temperature | 212°F (100°C) fresh water |
| Dock Hot Air Drying Temperature | 113°F (45°C) hot air |
| Dock Maintenance Features | Auto-empty, high-temperature mop washing, hot air drying, one-tap self-cleaning |
| Control Ecosystem | ECOVACS Home App, Apple Watch, Voice control |
Primary Sources & Audited Citations
Recommended Alternatives in Smart Home & IoT
At a Glance
How reliable is the ECOVACS DEEBOT T90 MAX Review: Active Roller Scrubbing Meets High-Temperature Sanitization according to Mizex audits?
Ideal for households with demanding mixed-surface flooring seeking hands-off maintenance, provided there is sufficient dedicated floor space for the comprehensive all-in-one docking station.
What are the known quirks or drawbacks of the ECOVACS DEEBOT T90 MAX Review: Active Roller Scrubbing Meets High-Temperature Sanitization?
Our reliability audit identified the following documented caveats:
- Multi-chamber water tank and automated evacuation dock requires a large physical footprint
- 0.59 in (15 mm) roller lift clearance may not fully clear thick, high-pile shag carpeting
What are the key engineering highlights of the ECOVACS DEEBOT T90 MAX Review: Active Roller Scrubbing Meets High-Temperature Sanitization?
The top strengths recorded in our evaluation include:
- Active self-cleaning roller mechanism with 32-way fresh-water jets and continuous dirty fluid extraction
- High-velocity vacuum motor producing 40,000 Pa suction and 34.8 CFM airflow
- All-in-one OMNI dock integrates 212°F (100°C) water sanitization and 113°F (45°C) hot air drying
- Motorized 0.59 in (15 mm) mop lift prevents damp textile contact when vacuuming carpets
