- Three-sided tempered glass panels offer panoramic interior visibility without corner pillar obstruction
- Native support for back-connector (BTF) motherboards facilitates clean, concealed cable management
- Front-mounted transverse power supply position frees the bottom chassis panel for direct intake airflow
- Generous interior clearances accommodate graphics cards up to 16.54 in (420 mm) and radiators up to 360 mm (14.17 in)
- Power supply length is restricted to a maximum of 6.30 in (160 mm) due to the front-mounted mounting bay
- Three-sided glass construction limits front and side panel intake pathways compared to traditional mesh enclosures
Overview

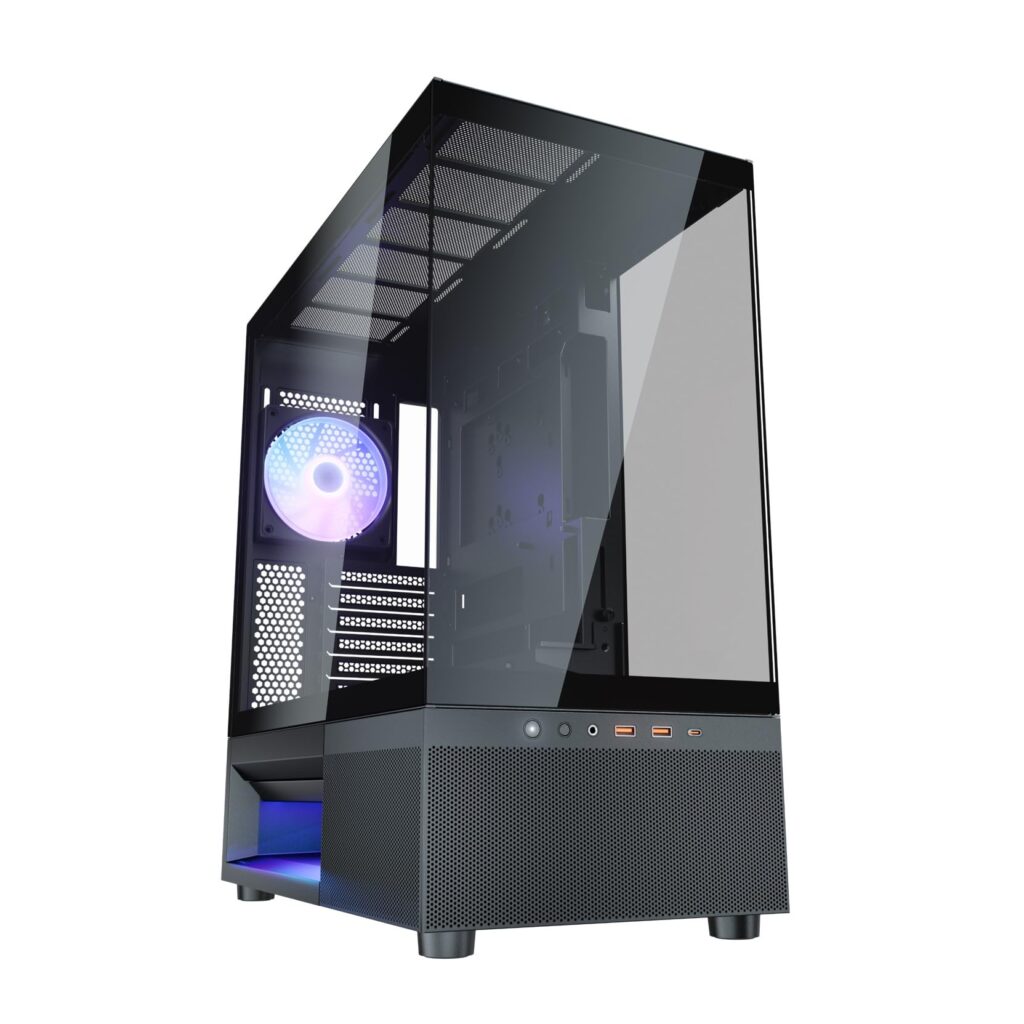

Panoramic PC cases traditionally rely on twin glass sides to showcase components, but extending tempered glass across three separate panels creates an unobstructed exhibition chamber for enthusiast hardware. Built to accommodate modern aesthetics and cleaner cabling, the mid-tower chassis integrates native cutouts for back-connector motherboards across ATX, Micro-ATX, and Mini-ITX form factors. This layout routes power headers and peripheral connections behind the tray, leaving the main hardware chamber visually pristine through every viewing angle.
To make full use of the glass-heavy exterior, the internal architecture relocates the power supply unit to a front-mounted transverse bay at the bottom of the case. By eliminating the standard full-length power supply shroud across the floor, the chassis opens a direct, unobstructed intake path from the bottom panel straight into the primary expansion area. Three pre-installed 120 mm (4.72 in) ARGB PWM fans supply active airflow across the chamber, while the roof and side brackets accommodate liquid cooling radiators up to 360 mm (14.17 in) to handle higher thermal loads.
Hardware clearance inside the main compartment is generous, supporting graphics cards up to 16.54 in (420 mm) and air-cooling towers up to 6.69 in (170 mm) in height. However, repositioning the power supply to the front introduces a physical constraint, capping power supply length at 6.30 in (160 mm). Builders pairing the chassis with high-wattage hardware will need to select a compact modular power supply to ensure sufficient clearance for cable exit runs, making pre-assembly component planning essential for a seamless build process.
Technical Specifications
| Brand | Cougar |
| Model | CFV220 RGB |
| Form Factor | Mid-Tower |
| Dimensions | 9.25 x 17.56 x 19.84 in (235 x 446 x 504 mm) |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX, Back-connector / BTF standard |
| Side Panels | Three-sided tempered glass |
| Maximum GPU Length | 16.54 in (420 mm) |
| Maximum CPU Cooler Height | 6.69 in (170 mm) |
| Maximum PSU Length | 6.30 in (160 mm) |
| PSU Mount Location | Front-mounted transverse bottom bay |
| Pre Installed Fans | 3x 120 mm (4.72 in) ARGB PWM fans |
| Radiator Support | Up to 360 mm (14.17 in) |
| Available Colors | Black, White |
Primary Sources & Audited Citations
Recommended Alternatives in PC Cases
At a Glance
How reliable is the COUGAR CFV220 RGB Review: Panoramic Showcase Meets BTF Architecture according to Mizex audits?
An ideal showcase chassis for clean BTF builds and oversized graphics cards, provided your power supply does not exceed 160 mm (6.30 in) in length.
What are the known quirks or drawbacks of the COUGAR CFV220 RGB Review: Panoramic Showcase Meets BTF Architecture?
Our reliability audit identified the following documented caveats:
- Power supply length is restricted to a maximum of 6.30 in (160 mm) due to the front-mounted mounting bay
- Three-sided glass construction limits front and side panel intake pathways compared to traditional mesh enclosures
What are the key engineering highlights of the COUGAR CFV220 RGB Review: Panoramic Showcase Meets BTF Architecture?
The top strengths recorded in our evaluation include:
- Three-sided tempered glass panels offer panoramic interior visibility without corner pillar obstruction
- Native support for back-connector (BTF) motherboards facilitates clean, concealed cable management
- Front-mounted transverse power supply position frees the bottom chassis panel for direct intake airflow
- Generous interior clearances accommodate graphics cards up to 16.54 in (420 mm) and radiators up to 360 mm (14.17 in)
