Overview
Onboard power management marks the defining architectural transition of DDR5, migrating voltage conversion directly from the motherboard onto the DIMM via a dedicated Power Management IC (PMIC). Operating at a verified transfer rate of 6000 MT/s, this module coordinates high-speed signaling across dual 32-bit subchannels, backed by integrated on-die error-correcting code (ODECC) to mitigate internal bit flips under sustained load. However, because this specific SKU packages a solitary 16GB module, deploying it individually limits a desktop processor’s memory bus to a single 64-bit interface, halving theoretical platform bandwidth relative to dual-channel configurations until a complementary DIMM is installed.

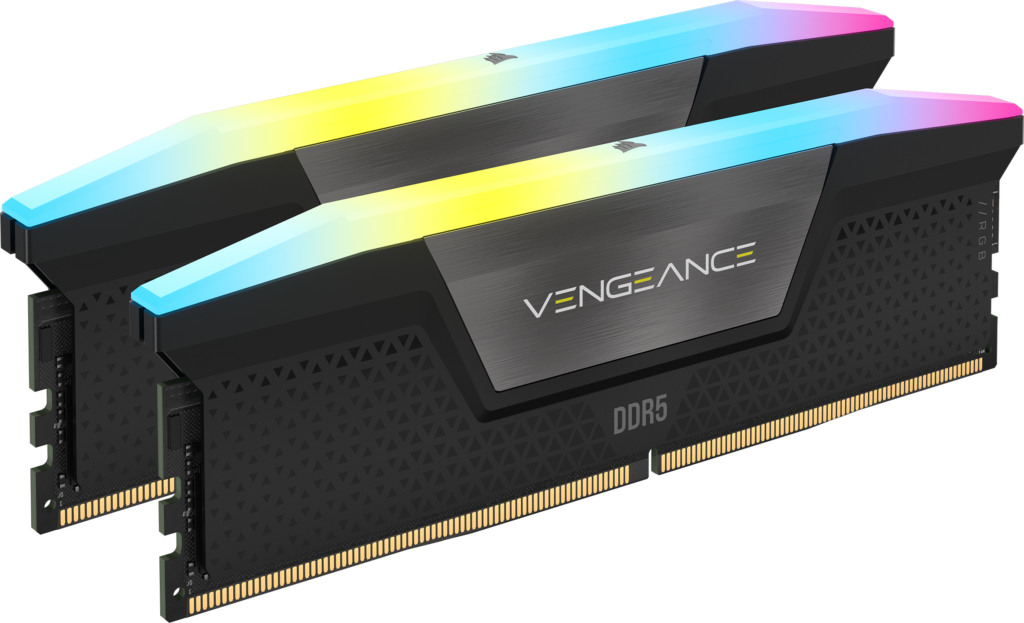

Physical construction relies on a stamped anodized aluminum heat spreader bonded to the DRAM packages and PMIC via high-conductivity thermal interface pads. Measuring 5.31 x 0.28 x 1.77 in (135 x 7 x 45 mm) and weighing 1.59 oz (45 g), the compact vertical profile maintains reliable clearance beneath large dual-tower air coolers that frequently obstruct taller enthusiast modules. Heat dissipation operates entirely passively, transferring thermal energy from the high-frequency switching regulator and silicon dies directly into chassis airflow to maintain stable operating temperatures during prolonged compute cycles. The top crest houses an edge-to-edge six-zone addressable RGB diffuser bar, minimizing dark spots while drawing modest supplemental power directly through the module’s power rail.
Firmware implementation incorporates pre-programmed SPD profiles supporting both Intel XMP 3.0 and AMD EXPO standards for straightforward one-click setup across modern socket platforms. Beyond Corsair’s iCUE suite, the lighting controller communicates natively with primary motherboard ARGB software protocols, including ASUS Aura Sync, MSI Mystic Light, and Gigabyte RGB Fusion, avoiding the necessity of background software bloat. For system builders, this module serves as an accessible stepping stone for budget-conscious entry into the DDR5 ecosystem, delivering dependable electrical stability provided the user plans for the eventual addition of a second stick to restore full memory bus bandwidth.
Technical Specifications
| Brand | Corsair |
| Model | Vengeance RGB RS DDR5 16GB (1 x 16GB) 6000MHz |
| Memory Type | DDR5 SDRAM |
| Capacity | 16GB (1 x 16GB) |
| Tested Frequency | 6000 MT/s (PC5-48000) |
| Form Factor | 288-pin UDIMM |
| Voltage Range | 1.25V - 1.35V |
| Overclocking Profiles | Intel XMP 3.0 / AMD EXPO |
| Error Correction | On-Die ECC (ODECC) |
| Power Regulation | Onboard PMIC (Power Management IC) |
| Heat Spreader Material | Anodized Aluminum |
| Lighting Configuration | 6-Zone Addressable RGB (ARGB) |
| Module Dimensions | 5.31 x 0.28 x 1.77 in (135 x 7 x 45 mm) |
| Module Weight | 1.59 oz (45 g) |
| Warranty Coverage | Limited Lifetime |
- Onboard Power Management IC (PMIC) ensures stable voltage delivery and efficient power switching at 6000 MT/s.
- Dual firmware support with pre-configured Intel XMP 3.0 and AMD EXPO profiles for cross-platform compatibility.
- Compact 1.77 in (45 mm) module height provides dependable clearance under large dual-tower air coolers.
- Broad ARGB ecosystem synchronization compatible with Corsair iCUE, ASUS Aura Sync, MSI Mystic Light, and Gigabyte RGB Fusion.
- Single-DIMM (1 x 16GB) configuration limits desktop platforms to single-channel 64-bit operation, cutting potential bandwidth in half.
- Streamlined 6-LED lighting array offers fewer addressable zones than standard 10-LED Vengeance RGB kits.
Primary Sources & Audited Citations
Recommended Alternatives in Memory (RAM)
At a Glance
How reliable is the Corsair Vengeance RGB RS DDR5 16GB (1 x 16GB) 6000MHz Review: Single-Stick DDR5 Bandwidth Trade-Off according to Mizex audits?
While this single 16GB module provides a stable, low-profile entry point to 6000 MT/s DDR5 speeds, pairing it with a second matching DIMM is essential to prevent halving memory bandwidth on dual-channel platforms.
What are the known quirks or drawbacks of the Corsair Vengeance RGB RS DDR5 16GB (1 x 16GB) 6000MHz Review: Single-Stick DDR5 Bandwidth Trade-Off?
Our reliability audit identified the following documented caveats:
- Single-DIMM (1 x 16GB) configuration limits desktop platforms to single-channel 64-bit operation, cutting potential bandwidth in half.
- Streamlined 6-LED lighting array offers fewer addressable zones than standard 10-LED Vengeance RGB kits.
What are the key engineering highlights of the Corsair Vengeance RGB RS DDR5 16GB (1 x 16GB) 6000MHz Review: Single-Stick DDR5 Bandwidth Trade-Off?
The top strengths recorded in our evaluation include:
- Onboard Power Management IC (PMIC) ensures stable voltage delivery and efficient power switching at 6000 MT/s.
- Dual firmware support with pre-configured Intel XMP 3.0 and AMD EXPO profiles for cross-platform compatibility.
- Compact 1.77 in (45 mm) module height provides dependable clearance under large dual-tower air coolers.
- Broad ARGB ecosystem synchronization compatible with Corsair iCUE, ASUS Aura Sync, MSI Mystic Light, and Gigabyte RGB Fusion.
