- Universal daisy-chain 4-pin PWM and 3-pin ARGB headers eliminate the need for proprietary control hubs
- High static pressure up to 3.5 mm-H2O paired with concentrated AirGuide anti-vortex airflow
- Magnetic Dome bearing architecture provides quiet operation and a 5-year manufacturer warranty
- Zero RPM mode allows complete fan cessation during low system loads for silent operation
- Full 1,700 RPM load reaches 36 dBA, requiring fan curve optimization for quiet builds
- Slightly thicker 26 mm chassis frame compared to standard 25 mm fan profiles
Overview

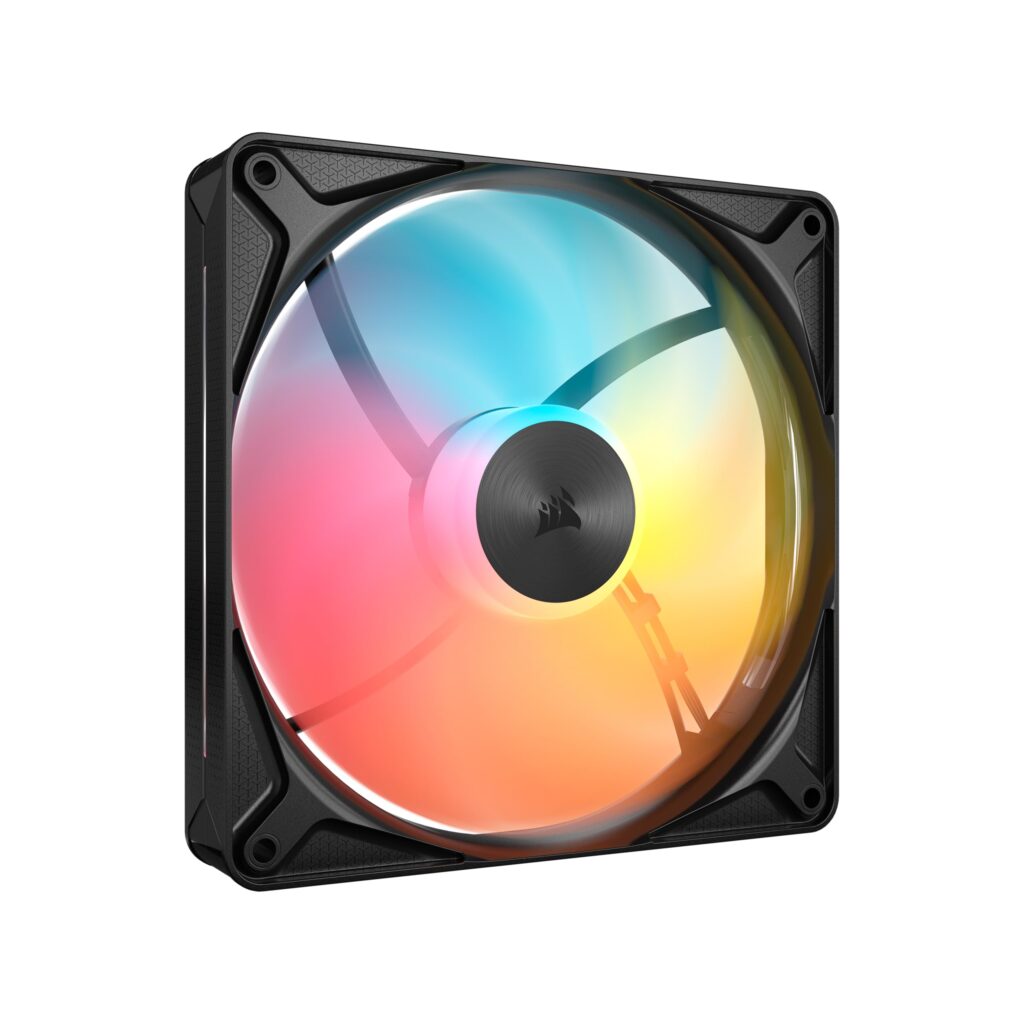

PC builders have long wrestled with proprietary fan hubs and tangled wiring harnesses, making the embrace of standardized motherboard headers a welcome relief. Corsair addresses this directly with the RS140 II ARGB, integrating universal daisy-chain connections for both standard 4-pin PWM speed control and 3-pin 5V addressable RGB lighting. Rather than forcing users into external controller hubs or complex software suites, each fan connects directly into neighboring units or motherboard headers. The rear frame incorporates Corsair’s AirGuide stator vanes, which actively channel intake airflow into a concentrated, direct stream to combat vortex dispersion across dense cooling fins and mesh panels.
Mechanical reliability centers around a Magnetic Dome bearing design engineered to minimize surface friction and maintain low operational noise over sustained workloads. Speed regulation covers an expansive operating envelope, scaling from a silent halt at zero percent duty cycle up to 1,700 RPM under heavy demand. At peak rotational velocity, the fan generates up to 96 CFM of airflow and 3.5 mm-H2O of static pressure, making it equally capable as an unrestricted case intake or a high-resistance radiator exhaust. Sound levels span from an inaudible 10 dBA at idle speeds to 36 dBA at maximum velocity, enabling builders to craft responsive cooling curves that remain imperceptible during routine productivity.
The simplified daisy-chain topology markedly cleans up chassis interiors, allowing clean multi-fan cable routing behind the motherboard tray without the clutter of auxiliary control hardware. Eight centrally mounted addressable LEDs illuminate the translucent blades, synchronizing natively with standard motherboard lighting software across ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, and ASRock RGB platforms. Supported by an extensive five-year warranty and flexible black or white colorways, the unit stands out as a practical, high-performance cooling upgrade that respects open hardware standards.
Technical Specifications
| Brand | Corsair |
| Model | RS140 II ARGB |
| Fan Size | 5.51 in (140 mm) |
| Dimensions | 5.51 x 5.51 x 1.02 in (140 x 140 x 26 mm) |
| Rotational Speed | 0, 330 - 1,700 RPM ±10% |
| PWM Control Range | 0%, 20% - 100% |
| Airflow Capacity | 12.6 - 96 CFM |
| Static Pressure | 0.11 - 3.5 mm-H2O |
| Acoustic Noise Level | 10 - 36 dBA |
| Bearing Type | Magnetic Dome |
| Connector Configuration | 4-pin PWM, 3-pin 5V ARGB (daisy-chain) |
| RGB Illumination | 8 Addressable LEDs |
| Lighting Sync Support | Standard 5V ARGB (ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, ASRock RGB) |
| Zero RPM Mode | Supported |
| Airflow Technology | CORSAIR AirGuide anti-vortex vanes |
| Color Options | Black, White |
| Warranty | 5 Years |
Primary Sources & Audited Citations
Recommended Alternatives in Case Fans
At a Glance
How reliable is the Corsair RS140 II ARGB Review: High-Pressure Cooling Without Proprietary Hubs according to Mizex audits?
An excellent choice for builders seeking high-pressure 140 mm radiator and chassis cooling with standard motherboard headers rather than proprietary hub ecosystems.
What are the known quirks or drawbacks of the Corsair RS140 II ARGB Review: High-Pressure Cooling Without Proprietary Hubs?
Our reliability audit identified the following documented caveats:
- Full 1,700 RPM load reaches 36 dBA, requiring fan curve optimization for quiet builds
- Slightly thicker 26 mm chassis frame compared to standard 25 mm fan profiles
What are the key engineering highlights of the Corsair RS140 II ARGB Review: High-Pressure Cooling Without Proprietary Hubs?
The top strengths recorded in our evaluation include:
- Universal daisy-chain 4-pin PWM and 3-pin ARGB headers eliminate the need for proprietary control hubs
- High static pressure up to 3.5 mm-H2O paired with concentrated AirGuide anti-vortex airflow
- Magnetic Dome bearing architecture provides quiet operation and a 5-year manufacturer warranty
- Zero RPM mode allows complete fan cessation during low system loads for silent operation
