Overview

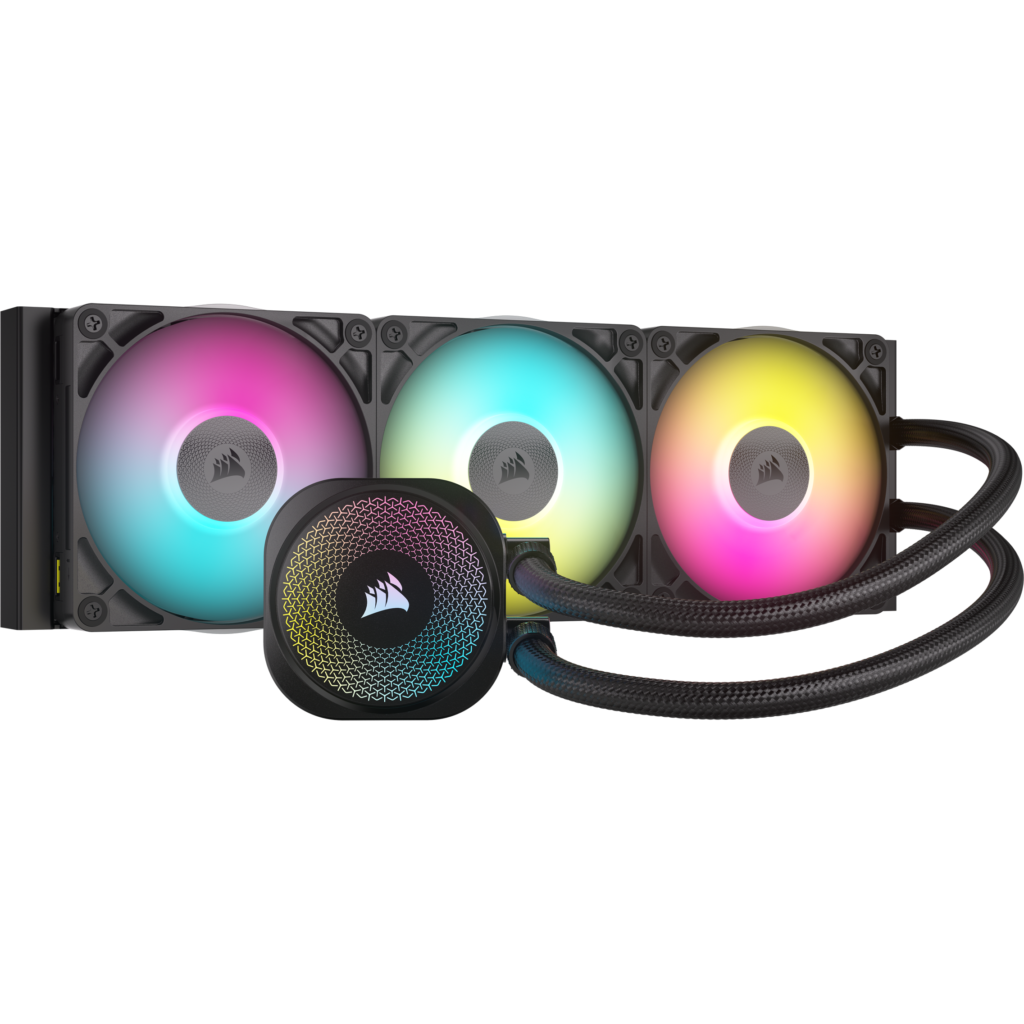

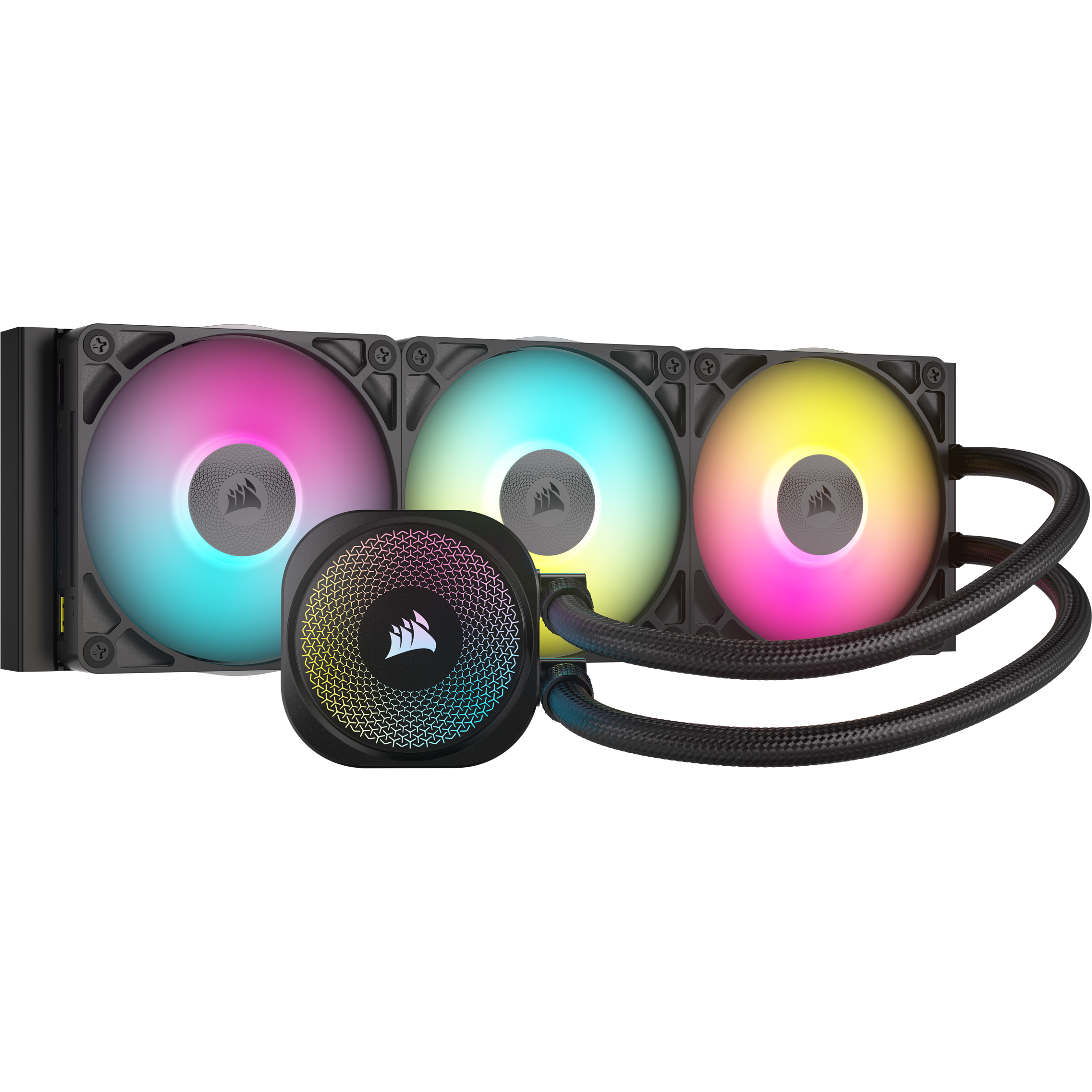

Direct thermal coupling across heterogeneous IHS profiles dictates the mechanical layout of Corsair’s iCUE Link Titan II 360 RX RGB. A revised convex copper cold plate thins the conductive barrier while concentrating clamping force over AMD AM5 and Intel LGA 1851 hotspots, addressing substrate deflection under multi-point socket pressures. Fluid delivery relies on the FlowDrive 2 cooling engine, which incorporates a three-phase brushless motor that increases volumetric flow by up to 30% over its predecessor while damping low-frequency mechanical vibration. Coolant travels through 17.7 in (450 mm) of sleeved low-permeation rubber tubing into an aluminum radiator measuring 15.5 x 4.7 x 1.1 in (394 x 120 x 27 mm). Corsair reduced the radiator fin density specifically to optimize noise-normalized airflow resistance, allowing the heat exchanger to shed high thermal wattages without requiring excessive static pressure from the fan array.
Airflow generation is handled by the RX360 II Unified Frame assembly, which integrates three 120 mm fans into a single rigid structural housing. This monocoque structure eliminates inter-fan seams where high-pressure air typically bleeds backward, securing the entire assembly to the radiator chassis with four mounting points instead of twelve individual fasteners. Operating on Magnetic Dome bearings, the fans modulate between 400 and 2,100 RPM (±10%), generating between 14.12 and 64.7 CFM of airflow alongside 0.21 to 3.57 mm-H2O of static pressure while acoustic output spans 10 to 32.8 dB(A). The three-phase pump motor acoustic signature effectively suppresses the 2.5 to 3.0 kHz tonal whine common in single-phase AIO impellers, keeping pump operation acoustically inconspicuous against chassis ambient noise floors.
System integration operates entirely on the proprietary iCUE LINK unified digital bus, routing 12V DC power, tachometer telemetry, PWM duty cycle curves, and 44 addressable RGB LEDs across a single reversible 6-pin cable tethered to the included System Hub. Firmware updates and hardware monitoring synchronize through Corsair’s desktop software, maintaining an active cadence for socket-specific thermal curves, though offline operation remains tied to persistent onboard hardware lighting and cooling defaults. Physical customization is anchored by the CapSwap modular pump interface, which enables users to exchange the stock RGB cap for optional active VRM cooling fans or a 5-inch IPS display without draining or interrupting the closed loop, backed by a 6-year operational warranty.
Technical Specifications
| Brand | Corsair |
| Model | iCUE Link Titan II 360 RX RGB |
| Radiator Dimensions | 15.5 x 4.7 x 1.1 in (394 x 120 x 27 mm) |
| Radiator Material | Aluminum |
| Total Weight | 4.41 lbs (2.0 kg) |
| Cold Plate Material | Copper (convex micro-fin profile) |
| Pump Engine | FlowDrive 2 (three-phase motor) |
| Fan Configuration | iCUE LINK RX360 II Unified Frame (3x 120 mm) |
| Fan Bearing Type | Magnetic Dome |
| Fan Speed Range | 400 – 2,100 RPM (±10%) |
| Fan Airflow | 14.12 – 64.7 CFM |
| Fan Static Pressure | 0.21 – 3.57 mm-H2O |
| Fan Acoustic Output | 10.0 – 32.8 dB(A) |
| Tubing Length | 17.7 in (450 mm) |
| Tubing Material | Low-permeation braided sleeved rubber |
| Lighting | 44 addressable RGB LEDs (pump cap) with integrated fan lighting |
| Connectivity | iCUE LINK unified digital bus (System Hub included) |
| Socket Compatibility | AMD AM5, AMD AM4; Intel LGA 1851, Intel LGA 1700 |
| Modular Interface | Corsair CapSwap system (supports optional LCD and VRM fan modules) |
| Warranty | 6 Years |
- FlowDrive 2 three-phase motor delivers up to 30% increased coolant flow while eliminating low-frequency motor hum
- Unified-frame RX360 II fan assembly drastically simplifies radiator installation and prevents inter-fan airflow leakage
- Modular CapSwap architecture enables straightforward upgrades to active VRM fans or an LCD module without draining the loop
- Single-cable iCUE LINK bus integration consolidates power, PWM, telemetry, and ARGB into minimal chassis cable runs
- Proprietary iCUE LINK cable standard and System Hub dependency introduce ecosystem lock-in
- Requires active Corsair iCUE desktop software running for advanced telemetry and dynamic lighting synchronization
