Overview
Thermal dissipation across high-TDP processor sockets depends on fluid velocity and coldplate contouring, where the FlowDrive 2 three-phase pump motor and convex copper baseplate establish continuous, low-turbulence coolant delivery through a 15.5 x 4.7 x 1.1 in (394 x 120 x 27 mm) aluminum radiator core. The redesigned internal micro-fin matrix maximizes contact surface area directly over central compute dies, transferring heat into the closed fluid loop with minimal acoustic resonance. Paired with 17.7 in (450 mm) braided low-permeation rubber tubing, the loop maintains hydraulic stability while resisting vapor loss over multi-year operational cycles.

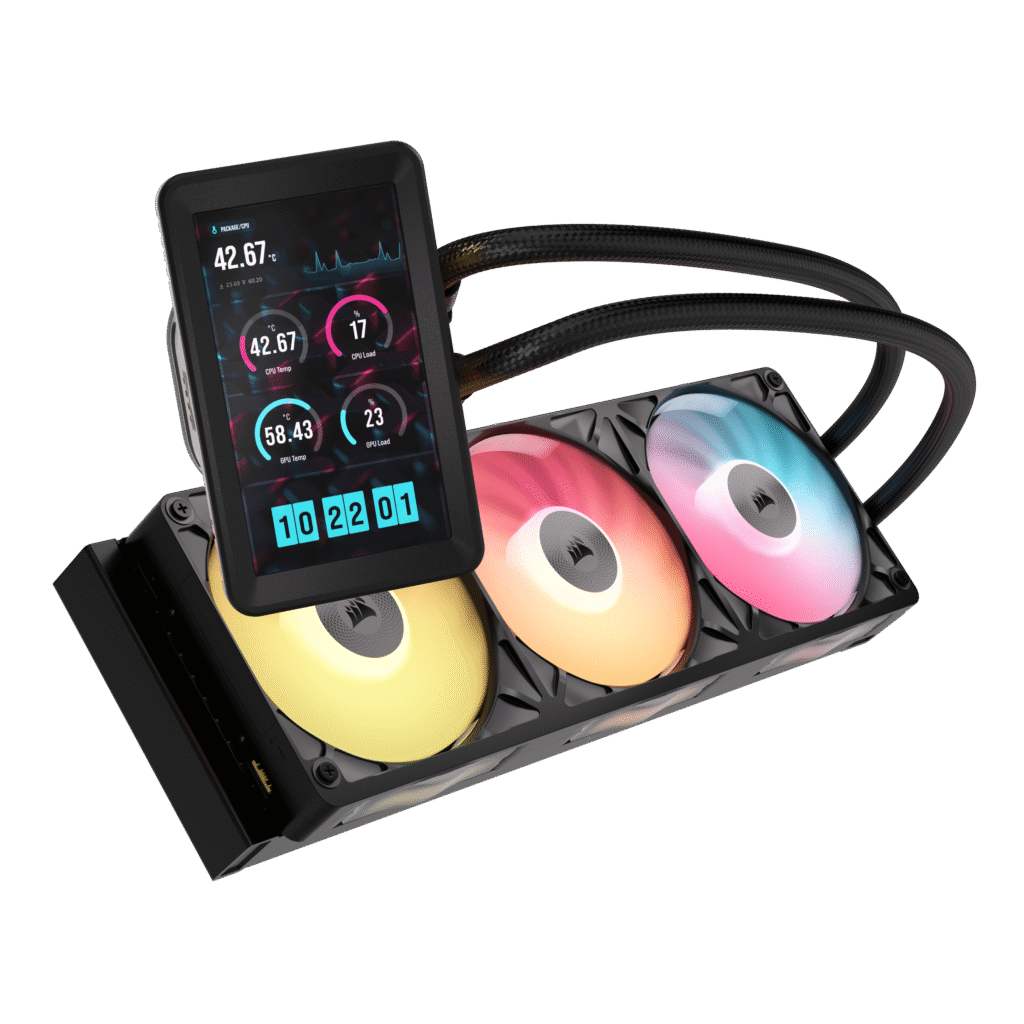

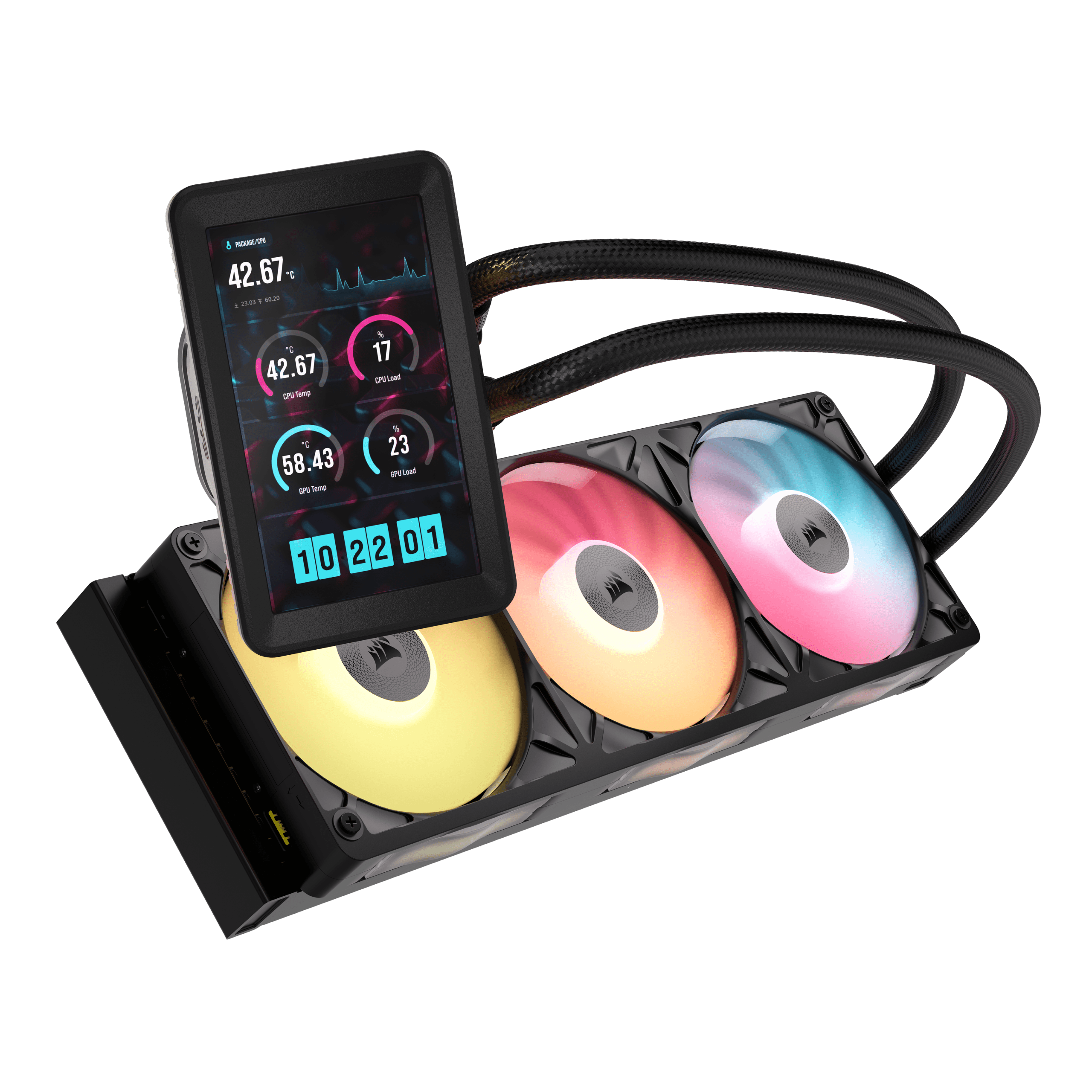

Airflow across the radiator is managed by a trio of second-generation RX II fans configured in a rigid 14.2 x 4.7 x 1.0 in (360 x 120 x 25 mm) unified frame, eliminating inter-chassis harmonic vibration and frame flex. Operating between 400 and 2,100 RPM, the magnetic dome bearings deliver static pressure up to 3.57 mm-H2O and airflow reaching 64.7 CFM while maintaining operational acoustics between 10.0 and 32.8 dBA. Crowning the pump housing is a rotatable 5.0 in (127 mm) IPS LCD displaying 720 x 1280 resolution at 60 Hz with 500 cd/m² luminance. Because the display integrates dedicated DisplayPort input alongside internal USB signaling, it operates as a native secondary monitor within the operating system, bypassing rendering bottlenecks commonly associated with software-only USB framebuffers.
Integration into modern builds relies on the proprietary iCUE LINK unified digital bus, streamlining power delivery, fan RPM feedback, and dynamic RGB data through simplified daisy-chained cabling rather than traditional nested wire harnesses. Firmware deployment and device orchestration occur through the centralized iCUE software suite, which governs fan curve responsiveness, liquid temperature safety thresholds, and custom sensor dashboards. While the closed ecosystem imposes reliance on specialized hub hardware and proprietary connectors, the mechanical refinement of the mounting hardware across Intel LGA 1851/1700 and AMD AM5/AM4 platforms yields consistent socket clamping pressure and predictable long-term thermal behavior.
Technical Specifications
| Brand | CORSAIR |
| Model | iCUE Link Titan II 360 RX LCD |
| Cooling Method | Liquid All-in-One (AIO) |
| Radiator Dimensions | 15.5 x 4.7 x 1.1 in (394 x 120 x 27 mm) |
| Radiator Material | Aluminum |
| Coldplate Material | Copper |
| Tubing Length | 17.7 in (450 mm) |
| Tubing Material | Black Sleeved Low-Permeation Rubber |
| Pump Motor | FlowDrive 2 (Three-Phase, Closed-Impeller) |
| Fan Dimensions (Unified Frame) | 14.2 x 4.7 x 1.0 in (360 x 120 x 25 mm) |
| Fan Quantity & Type | 3x iCUE LINK RX120 II RGB in Unified Frame |
| Fan Speed | 400 - 2,100 RPM (±10%) |
| Fan Airflow | 14.12 - 64.7 CFM |
| Fan Static Pressure | 0.21 - 3.57 mm-H2O |
| Fan Noise Level | 10.0 - 32.8 dBA |
| Fan Bearing Type | Magnetic Dome |
| Display Specification | 5.0 in (127 mm) IPS LCD, 720 x 1280, 60 Hz, 500 cd/m² |
| Display Connectivity | DisplayPort Input & USB Signaling |
| Ecosystem Bus | CORSAIR iCUE LINK Digital Bus |
| Thermal Interface Material | Pre-applied CORSAIR XTM70 |
| Socket Compatibility | Intel LGA 1851, LGA 1700; AMD AM5, AM4 |
| Warranty | 6 Years |
- FlowDrive 2 three-phase pump motor delivering quiet, high-efficiency coolant circulation across demanding CPU heat loads.
- Integrated 5-inch 720x1280 IPS screen supporting DisplayPort auxiliary video and real-time telemetry.
- Unified-frame RX II RGB fans minimize vibration and cable clutter via the daisy-chained iCUE LINK bus.
- Six-year manufacturer warranty backed by magnetic dome bearings and low-permeation rubber tubing.
- High ecosystem investment required with strict dependence on proprietary iCUE LINK connectors.
- Large pump block footprint and secondary display wiring demand careful chassis clearance and cable routing.
Primary Sources & Audited Citations
Recommended Alternatives in CPU Coolers (AIO & Air)

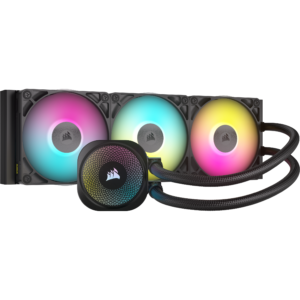

Corsair iCUE Link Titan II 360 RX RGB Review: Unified Frame High-Flow Hydraulic Cooling
Thermalright Dynamic Vision Pro 360 ARGB White Review: Active VRM Airflow with Articulated LCD
Fractal Design Radius 360 Black Review: Tube-Integrated Cabling Meets Liquid Cooling
At a Glance
How reliable is the CORSAIR iCUE Link Titan II 360 RX LCD Review: Secondary Display Meets High-Velocity Cooling according to Mizex audits?
Ideal for enthusiast builders seeking premium thermal performance and rich telemetry monitoring, provided they are committed to Corsair's proprietary iCUE LINK cabling ecosystem.
What are the known quirks or drawbacks of the CORSAIR iCUE Link Titan II 360 RX LCD Review: Secondary Display Meets High-Velocity Cooling?
Our reliability audit identified the following documented caveats:
- High ecosystem investment required with strict dependence on proprietary iCUE LINK connectors.
- Large pump block footprint and secondary display wiring demand careful chassis clearance and cable routing.
What are the key engineering highlights of the CORSAIR iCUE Link Titan II 360 RX LCD Review: Secondary Display Meets High-Velocity Cooling?
The top strengths recorded in our evaluation include:
- FlowDrive 2 three-phase pump motor delivering quiet, high-efficiency coolant circulation across demanding CPU heat loads.
- Integrated 5-inch 720x1280 IPS screen supporting DisplayPort auxiliary video and real-time telemetry.
- Unified-frame RX II RGB fans minimize vibration and cable clutter via the daisy-chained iCUE LINK bus.
- Six-year manufacturer warranty backed by magnetic dome bearings and low-permeation rubber tubing.
