CORSAIR iCUE Link RX360 II RGB Review: Unified High-Pressure Radiator Airflow

CORSAIR iCUE Link RX360 II RGB Review: Unified High-Pressure Radiator Airflow
● HIGHLY RATED
Site Score
4.4 / 5.0
Buyer Guidance: Ideal for liquid-cooling builders seeking high static pressure and effortless cable management, provided they are committed to Corsair's proprietary iCUE LINK ecosystem.
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.5 / 5.0
Build Quality & Physical Design (20%) 4.4 / 5.0
Thermal, Power & Acoustics (20%) 4.4 / 5.0
Reliability & Stability (20%) 4.6 / 5.0
Buyer Value (10%) 4.1 / 5.0
Score Rationale
Streamlining high-pressure radiator cooling through a unified single-frame structure and single-cable digital bus anchors the composite rating at 4.4. Engineering & Architecture achieves a 4.5 rating due to the consolidated iCUE LINK interface managing power, PWM signaling, and RGB telemetry through one cable, alongside low-friction magnetic dome bearing mechanics. Build quality rates at 4.4, benefiting from an integrated triple-fan housing that eliminates chassis flex and seam gaps between fan frames. Thermal management and acoustic profile score 4.4, delivering an expansive dynamic range from a 0 RPM idle state up to 3.57 mm-H2O static pressure and 64.7 CFM at a verified 32.8 dBA peak. Reliability earns a 4.6, reinforced by wear-reducing magnetic dome suspension and a 5-year manufacturer warranty. Buyer value settles at 4.1, balancing the time-saving cable architecture against proprietary ecosystem lock-in and the inability to replace individual fan modules independently.
Audited yesterday
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
💬 Join the Discussion ↓
Scores adjust dynamically as verified community ratings accumulate.

Overview

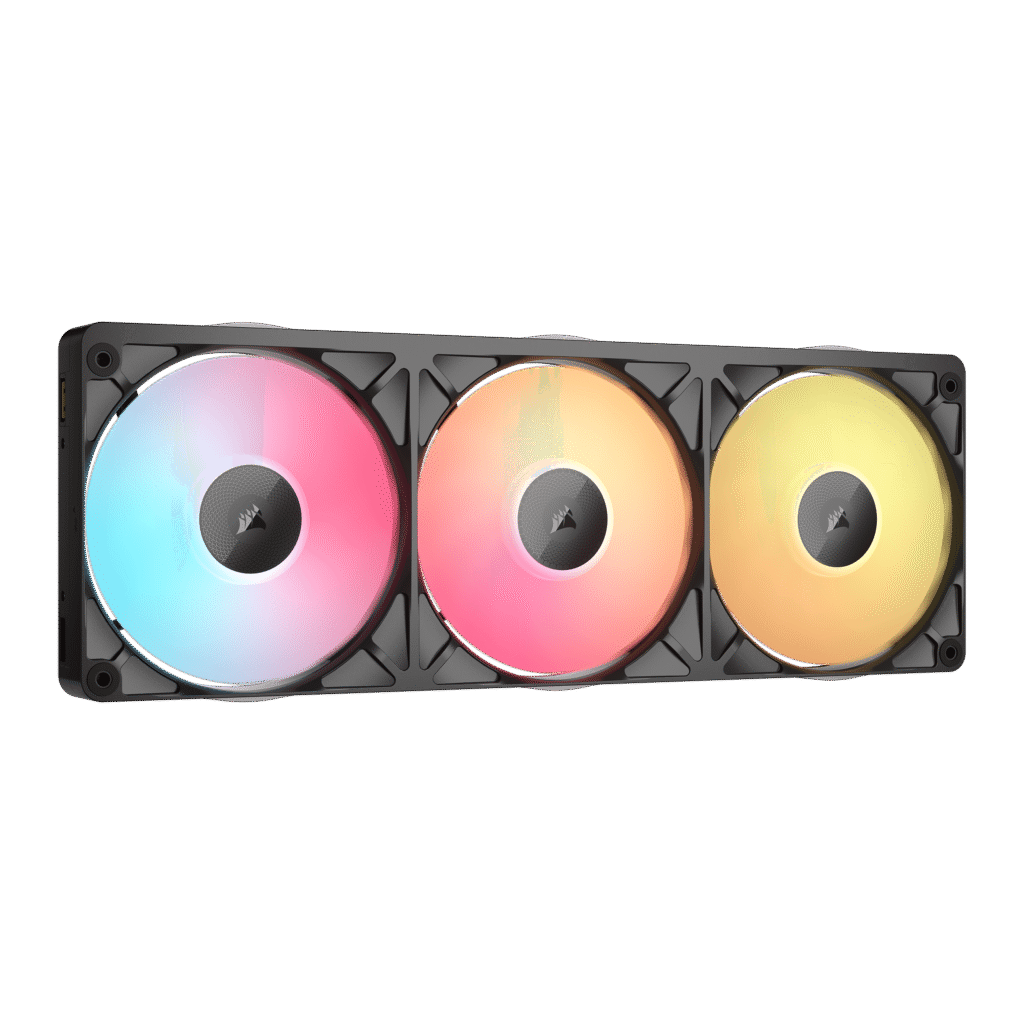

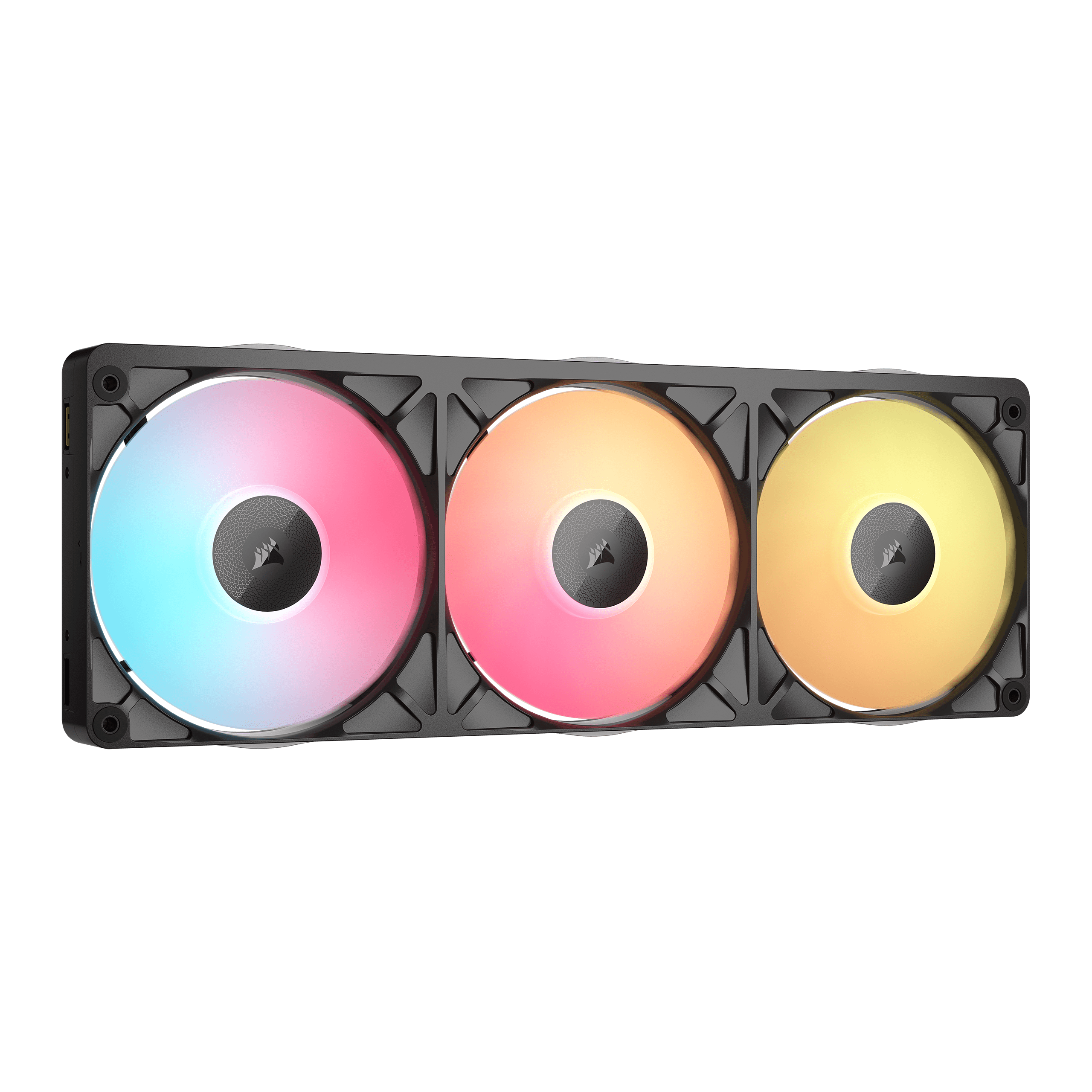

Deploying a rigid 14.2-inch (360 mm) unified frame structure fundamentally alters liquid cooling integration by eliminating the inter-fan static pressure leakage gaps common to standard triple-fan clusters. By housing three 4.7-inch (120 mm) impellers within a single continuous chassis, the assembly provides uniform mechanical tension across radiator fins and cuts mounting fasteners down to a consolidated perimeter. Cable management is equally streamlined through the proprietary iCUE LINK bus, which routes high-current power, PWM speed signaling, and individual digital lighting telemetry for all 24 addressable RGB LEDs across a single locking umbilical connector.

Aerodynamic delivery is tuned specifically for high-resistance radiators and restrictive dust filters, generating between 0.21 and 3.57 mm-H2O of static pressure alongside airflow ratings ranging from 14.1 to 64.7 CFM. The PWM duty cycle operates across an expansive envelope of 400 to 2100 RPM (±10%), incorporating a dedicated 0 RPM silent mode that halts impeller rotation entirely when coolant temperatures sit below defined thermal thresholds. Under full 2100 RPM operational load, acoustic emissions peak at a verified 32.8 dBA, decaying to an imperceptible 10 dBA at lower baseline sweeps.

Internal mechanical suspension relies on magnetic dome bearings that minimize shaft friction and mechanical wear compared to conventional sleeve or ball assemblies, supporting long-term rotational stability under continuous high-RPM loads. Corsair backs the assembly with a 5-year manufacturer warranty, reinforcing confidence in the bearing longevity and LED encapsulation. The primary operational trade-off remains the monolithic enclosure itself: because the three fans are integrated into a single unified housing and wired to the iCUE LINK ecosystem, individual rotor replacements are not possible, requiring total module replacement if an isolated mechanical failure ever occurs.

Technical Specifications

Brand Corsair
Model iCUE Link RX360 II RGB
Fan Size 4.7 in (120 mm) per fan (triple assembly)
Fan Quantity 3
Frame Type 14.2 in (360 mm) unified single-frame
Fan Speed 400 – 2100 RPM ±10%
Airflow 14.1 – 64.7 CFM
Static Pressure 0.21 – 3.57 mm-H2O
Noise Level 10 – 32.8 dBA
Bearing Type Magnetic dome bearing
Control Type PWM with 0 RPM silent mode
Lighting 24 addressable RGB LEDs (8 per fan)
Connection Interface CORSAIR iCUE LINK (single-cable power, control, and RGB sync)
Warranty 5 years
✔ Pros
  • Unified single-frame chassis eliminates inter-fan frame seams and simplifies 360 mm radiator mounting
  • Single-cable iCUE LINK interface consolidates power delivery, PWM control, and RGB data
  • High static pressure delivery up to 3.57 mm-H2O with a silent 0 RPM idle mode
  • Low-friction magnetic dome bearings backed by a 5-year warranty
✖ Cons
  • Requires Corsair's proprietary iCUE LINK ecosystem for operation
  • Unified triple-fan housing precludes replacing an individual fan mechanism if a single rotor fails
📋

Primary Sources & Audited Citations

Where To Buy

Amazon
Check current stock & pricing
B&H Photo
Check current stock & pricing

Disclosure: Mizex is an independent hardware database & audit index. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.

100% Sponsor-Free Platform
Zero paid placement • Zero brand bias

Support Independent Hardware Research

Mizex is an independent hardware intelligence platform. We accept zero manufacturer sponsorships, paid product reviews, or promotional placements. Every hardware profile, specification breakdown, and reliability rating is researched objectively from public documentation and verified community telemetry. If our database helped guide your build or purchase, consider supporting our research.

✓ Community-Driven ✓ Open Research ✓ 100% Objective Data
Compare & Research

Recommended Alternatives in Case Fans

Compare Other Models →

At a Glance

How reliable is the CORSAIR iCUE Link RX360 II RGB Review: Unified High-Pressure Radiator Airflow according to Mizex audits?
Mizex Composite Score: 4.4 / 5.0 ● HIGHLY RATED

Ideal for liquid-cooling builders seeking high static pressure and effortless cable management, provided they are committed to Corsair's proprietary iCUE LINK ecosystem.

What are the known quirks or drawbacks of the CORSAIR iCUE Link RX360 II RGB Review: Unified High-Pressure Radiator Airflow?

Our reliability audit identified the following documented caveats:

  • Requires Corsair's proprietary iCUE LINK ecosystem for operation
  • Unified triple-fan housing precludes replacing an individual fan mechanism if a single rotor fails
What are the key engineering highlights of the CORSAIR iCUE Link RX360 II RGB Review: Unified High-Pressure Radiator Airflow?

The top strengths recorded in our evaluation include:

  • Unified single-frame chassis eliminates inter-fan frame seams and simplifies 360 mm radiator mounting
  • Single-cable iCUE LINK interface consolidates power delivery, PWM control, and RGB data
  • High static pressure delivery up to 3.57 mm-H2O with a silent 0 RPM idle mode
  • Low-friction magnetic dome bearings backed by a 5-year warranty
