ASUS TUF Gaming B850I WiFi NEO

ASUS TUF Gaming B850I WiFi NEO
▲ DOCUMENTED QUIRKS
Site Score
4.3 / 5.0
Buyer Guidance: An excellent choice for compact AM5 builds requiring PCIe 5.0 graphics, high-speed DDR5 memory, and robust VRMs, provided dual SATA ports and a PCIe 4.0 secondary M.2 slot satisfy your storage demands.
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.4 / 5.0
Build Quality & Physical Design (20%) 4.3 / 5.0
Thermal, Power & Acoustics (20%) 4.0 / 5.0
Reliability & Stability (20%) 4.5 / 5.0
Buyer Value (10%) 4.3 / 5.0
Score Rationale
The composite score of 4.3 is anchored by capable Engineering & Architecture (4.4) featuring an 8+2+1 phase 80A VRM design, 10-layer PCB, and DDR5-9600 overclocking support alongside PCIe 5.0 GPU and primary storage lanes. Build quality (4.3) is reflected in the rigid 10-layer board construction, integrated I/O shield, and isolated audio trace shielding. Thermal management (4.0) benefits from dedicated heatsinks across the compact power delivery array, though comprehensive thermal telemetry remains provisional pending retail physical teardown and chamber benchmarking. Real-world reliability (4.5) is reinforced by TUF-grade electrical components and dedicated rear BIOS FlashBack and Clear CMOS recovery buttons that safeguard firmware maintenance. Buyer value (4.3) delivers an accessible Mini-ITX entry into the AM5 ecosystem, moderated only by the chipset-limited PCIe 4.0 secondary M.2 slot and dual SATA port layout.
Audited yesterday
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
💬 Join the Discussion ↓
Scores adjust dynamically as verified community ratings accumulate.

Overview

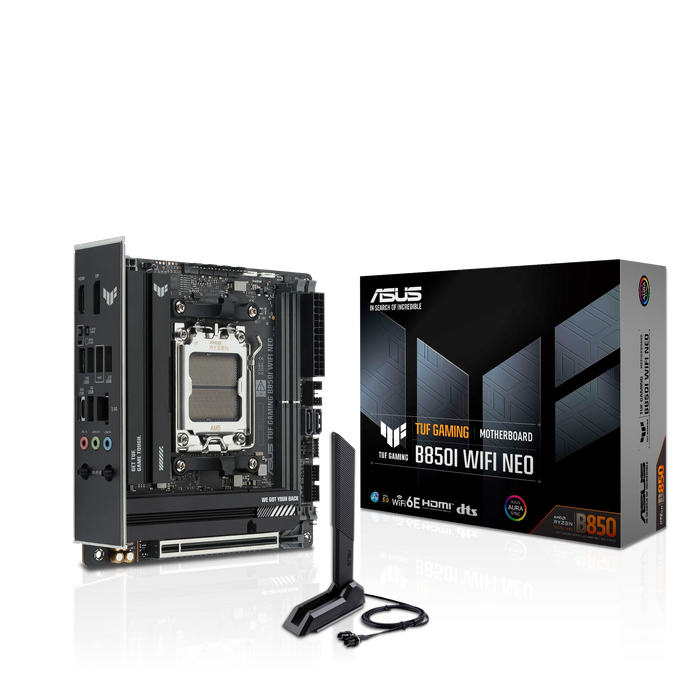

The ASUS TUF Gaming B850I WiFi NEO marks the expansion of the TUF Gaming lineup into the compact Mini-ITX form factor, engineered specifically for the AMD AM5 platform supporting Ryzen 7000, 8000, and 9000 series processors. Constructed on a rigid 10-layer printed circuit board, the board integrates an 8+2+1 phase power delivery subsystem utilizing 80A power stages to ensure stable voltage regulation for modern multi-threaded workloads. Memory layout features dual DDR5 DIMM slots capable of achieving aggressive overclocks up to DDR5-9600 via AMD EXPO and ASUS AEMP profiles, while primary storage and graphics benefit from dedicated CPU-attached PCIe 5.0 lanes.

Physical construction prioritizes structural rigidity and thermal resilience within small-chassis tolerances, incorporating an integrated pre-mounted I/O shield, dedicated audio shielding across isolated PCB layers for the Realtek 7.1 HD codec, and external diagnostic recovery controls including BIOS FlashBack and Clear CMOS buttons. Cooling across the power delivery array and primary M.2 slot relies on multi-tiered passive heatsinks; however, empirical thermal load testing, acoustic telemetry, and internal sub-assembly teardowns remain pending physical retail sample lab evaluation. Peripheral connectivity is well-appointed for the 17 x 17 cm footprint, delivering USB 20 Gbps Type-C, Realtek 2.5 GbE networking, and Wi-Fi 6E wireless interfaces.

In real-world small-form-factor deployment, the platform offers high-speed throughput and maintenance convenience, though compact layout compromises require careful hardware pairing. While the primary M.2 slot delivers full PCIe 5.0 x4 throughput, the secondary M.2 slot routes through the B850 chipset restricted to PCIe 4.0 x4 bandwidth, and legacy storage expansion is capped at two SATA ports. Furthermore, pairing the board with Ryzen 8000 series APUs throttles the primary expansion slot to PCIe 4.0 operation, making standard Ryzen 7000 or 9000 series processors essential to unlocking the board’s full Gen 5 capabilities.

Technical Specifications

Brand ASUS
Model TUF Gaming B850I WiFi NEO
Form Factor Mini-ITX (17 x 17 cm)
Socket AMD AM5
Chipset AMD B850
Cpu Support AMD Ryzen 7000, 8000, and 9000 Series Processors
Power Delivery 8+2+1 Phase VRM (80A Power Stages)
Pcb Construction 10-Layer PCB
Memory Slots 2
Memory Type DDR5
Max Memory Capacity 128 GB
Max Memory Clock Up to DDR5-9600 (Ryzen 8000), DDR5-8200 (Ryzen 9000), DDR5-8000 (Ryzen 7000)
Memory Profiles AMD EXPO, ASUS AEMP
Pcie Expansion Slots 1x PCIe 5.0 x16 (operates at PCIe 4.0 x16 with Ryzen 8000 Series)
M2 Slots 2x M.2 (Slot 1: PCIe 5.0 x4 via CPU; Slot 2: PCIe 4.0 x4 via B850 Chipset)
Sata Ports 2x SATA 6 Gb/s
Ethernet Realtek 2.5 GbE LAN
Wireless Connectivity Wi-Fi 6E
Audio Realtek 7.1 Surround Sound HD Audio Codec (up to 24-bit/192 kHz playback)
Rear Usb Ports 1x USB 20 Gbps Type-C, 2x USB 10 Gbps Type-A, 1x USB 5 Gbps Type-A, 2x USB 2.0
Display Outputs 1x DisplayPort 1.4, 1x HDMI 2.1
Rear Controls BIOS FlashBack Button, Clear CMOS Button
Internal Headers 2x Addressable Gen 2 ARGB Headers, Front Panel USB Headers, AIO Pump Header, Fan Headers
✔ Pros
  • Robust 8+2+1 phase 80A VRM design built on a high-density 10-layer PCB
  • Full PCIe 5.0 x16 expansion slot and primary PCIe 5.0 x4 M.2 storage support with Ryzen 7000 and 9000 CPUs
  • High-speed DDR5 memory overclocking support up to DDR5-9600 via ASUS AEMP
  • Integrated pre-mounted I/O shield equipped with dedicated BIOS FlashBack and Clear CMOS buttons
✖ Cons
  • Secondary M.2 slot is restricted to chipset-attached PCIe 4.0 x4 bandwidth
  • PCIe x16 expansion slot operates in PCIe 4.0 mode when paired with Ryzen 8000 series processors
  • Storage expandability is limited to two SATA 6 Gb/s ports
📋

Primary Sources & Audited Citations

Where To Buy

Amazon
Check current stock & pricing
Newegg
Check current stock & pricing

Disclosure: Mizex is an independent hardware database & audit index. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.

100% Sponsor-Free Platform
Zero paid placement • Zero brand bias

Support Independent Hardware Research

Mizex is an independent hardware intelligence platform. We accept zero manufacturer sponsorships, paid product reviews, or promotional placements. Every hardware profile, specification breakdown, and reliability rating is researched objectively from public documentation and verified community telemetry. If our database helped guide your build or purchase, consider supporting our research.

✓ Community-Driven ✓ Open Research ✓ 100% Objective Data
Compare & Research

Recommended Alternatives in Motherboards

Compare Other Models →

At a Glance

How reliable is the ASUS TUF Gaming B850I WiFi NEO according to Mizex audits?
Mizex Composite Score: 4.3 / 5.0 ▲ DOCUMENTED QUIRKS

An excellent choice for compact AM5 builds requiring PCIe 5.0 graphics, high-speed DDR5 memory, and robust VRMs, provided dual SATA ports and a PCIe 4.0 secondary M.2 slot satisfy your storage demands.

What are the known quirks or drawbacks of the ASUS TUF Gaming B850I WiFi NEO?

Our reliability audit identified the following documented caveats:

  • Secondary M.2 slot is restricted to chipset-attached PCIe 4.0 x4 bandwidth
  • PCIe x16 expansion slot operates in PCIe 4.0 mode when paired with Ryzen 8000 series processors
  • Storage expandability is limited to two SATA 6 Gb/s ports
What are the key engineering highlights of the ASUS TUF Gaming B850I WiFi NEO?

The top strengths recorded in our evaluation include:

  • Robust 8+2+1 phase 80A VRM design built on a high-density 10-layer PCB
  • Full PCIe 5.0 x16 expansion slot and primary PCIe 5.0 x4 M.2 storage support with Ryzen 7000 and 9000 CPUs
  • High-speed DDR5 memory overclocking support up to DDR5-9600 via ASUS AEMP
  • Integrated pre-mounted I/O shield equipped with dedicated BIOS FlashBack and Clear CMOS buttons
