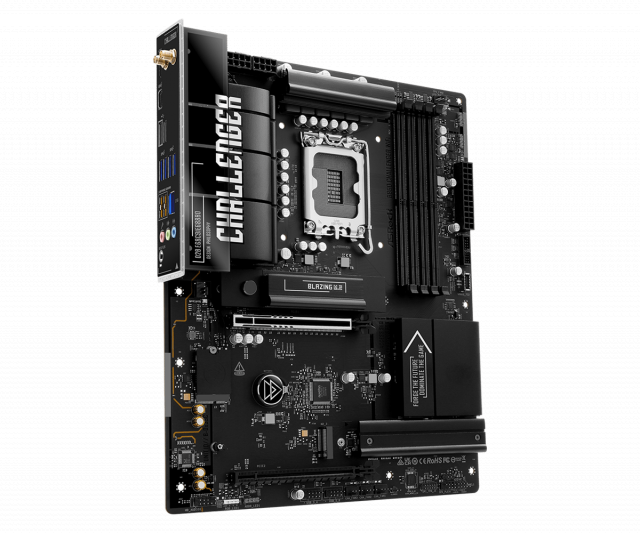

ASRock B860 Challenger Wi-Fi

Overview

The ASRock B860 Challenger Wi-Fi is an ATX motherboard built around the Intel B860 chipset and LGA1851 socket, engineered to host Intel Core Ultra Series 2 processors. Its core electrical subsystem incorporates a 14-phase power delivery architecture configured in a 10+1+1+1+1 phase array fed by dual 8-pin EPS power inputs, providing clean and steady voltage regulation across processor cores and auxiliary rails. Memory routing supports dual-channel DDR5 across four DIMM slots with validated overclocking headroom exceeding 8666 MT/s and a maximum capacity of 256 GB. Core data pipelines are structured around primary PCIe 5.0 bandwidth, integrating a full-length PCIe 5.0 x16 graphics card slot and a dedicated PCIe 5.0 x4 M.2 slot for next-generation solid-state storage alongside two PCIe 4.0 x4 M.2 slots and four SATA 6Gb/s ports.

From a physical layout and operational standpoint, the board features multi-layer ATX PCB construction backed by passive heat sinks protecting critical power delivery phases and primary storage drives. Chassis thermal integration is supported by seven 4-pin fan headers distributed across the perimeter, facilitating flexible airflow configurations. Network hardware is up to date, coupling a Realtek RTL8125BG 2.5 GbE wired interface with an integrated Realtek 8922AE module delivering tri-band Wi-Fi 7 and Bluetooth 5.4 support. Routine deployment and firmware maintenance are simplified by onboard diagnostic status LEDs and a dedicated rear I/O BIOS Flashback switch. The platform’s chief architectural compromises center on peripheral data rates, where all front and rear USB 3.x ports are restricted to 5 Gbps throughput without 10 Gbps options, paired with a legacy Realtek ALC897 audio codec.
