8Sight T100

Overview

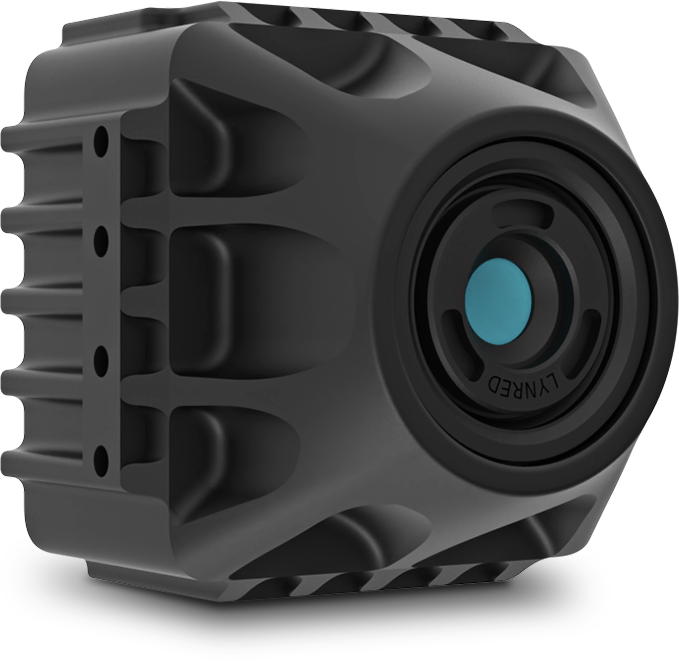

The 8devices 8Sight T100 represents a high-density convergence of thermal sensing and edge intelligence, pairing a Lynred ATI320 long-wave infrared (LWIR) core with STMicroelectronics’ STM32N657X0H3Q Arm Cortex-M55 microcontroller. Operating across the 8 to 14 µm spectral range, the sensor outputs 320×240 thermal imagery at a fluid 60 frames per second with a noise equivalent temperature difference under 50 mK. Architectural execution is centered on low-latency deterministic edge processing, combining a dedicated hardware image signal processor with a 600 GOPS Neural-ART acceleration engine, 32 MB of high-speed system RAM, and 64 MB of NOR flash. This enables real-time computer vision classification and object detection with inference latency under 100 ms and overall image processing pipelines resolved in sub-50 ms.

Physically architected for unmanned aerial systems (UAS), robotics, and industrial automation payloads, the module achieves an exceptionally low mass of 38 grams within an ultra-compact 28.5 x 30.5 x 29.5 mm form factor. Mechanical integration is facilitated through four-sided M2 mounting points, allowing secure modular anchoring directly into gimbals or custom airframes. Connectivity bridges industrial and embedded standards, routing high-speed USB 2.0 and 100 Mbps Ethernet PHY across robust JST locking headers. Firmware transport stacks provide versatile ingestion, offering standard UVC and RTSP/RTP H.264/MJPEG streams alongside non-UVC 8-bit and 16-bit radiometric RAW outputs for external sensor fusion pipelines.

From a thermodynamic and acoustic standpoint, the T100 functions entirely as a solid-state assembly with zero acoustic emission. Thermal management relies on conductive dissipation through the module’s exterior housing and surrounding airflow within payload enclosures. Operating from a regulated 5V DC line over the JST interface, the board provides stable power delivery to the sensitive microbolometer array. The design also maintains strict regulatory compliance under NDAA and TAA standards, positioning the T100 as a reliable, secure building block for defense and industrial autonomous surveillance platforms.
