Overview

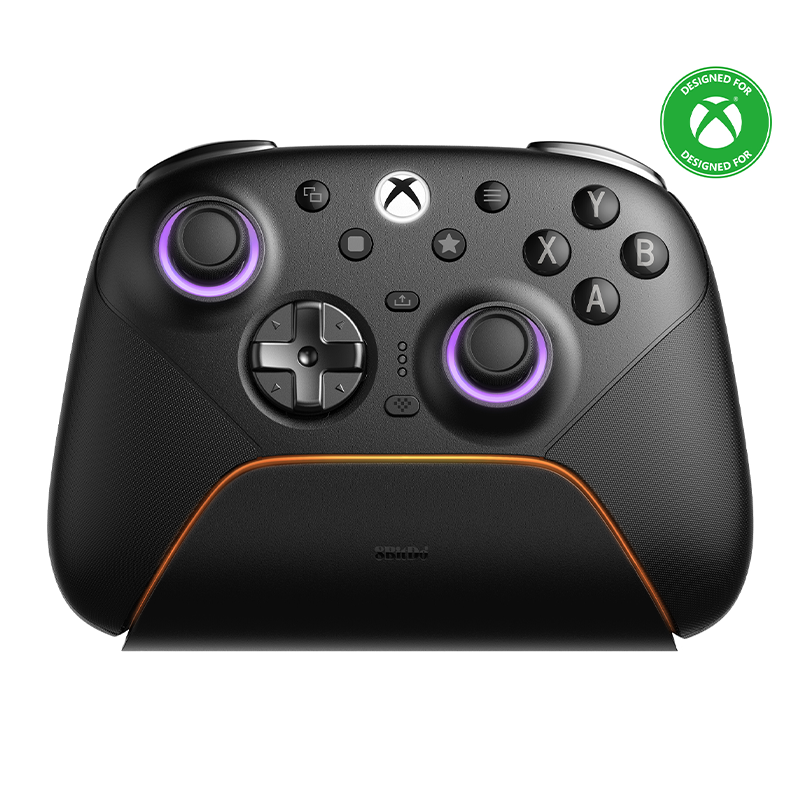

By pairing contactless Tunneling Magnetoresistance (TMR) joystick sensors with magnetic Hall Effect impulse triggers, internal hardware wear is isolated from the mechanical stress points that historically degrade gamepads over extended tournament cycles. The physical assembly centers around an ergonomic chassis measuring 152.5 × 104.0 × 62.0 mm and weighing 285 g, detailed with textured grip paneling and a magnetic quick-release faceplate. Beneath this magnetic shroud lies a modular button carriage supporting interchangeable ABXY clusters—allowing users to swap between rapid-actuation tactile micro-switches and dampened silicone membranes—alongside swappable thumbstick caps and alternative D-pad geometries without requiring chassis disassembly.
Signal transmission is managed via a tri-mode communication matrix comprising low-latency 2.4GHz RF, Bluetooth, and wired USB-C, with PC connections unlocking a native 1000 Hz polling rate for high-frequency input sampling. Power delivery is anchored by an internal 1400 mAh rechargeable lithium-ion battery rated for up to 18 hours of continuous operation. To circumvent cycle fatigue on the primary USB-C receptacle, the gamepad docks into an included zero-contact wireless charging cradle that charges the cell while functioning as a clean desk pass-through station. Acoustically, the chassis structure deadens internal resonance during intense rumble events, while the tactile micro-switches produce a sharp, defined actuation click compared to the muted dampening of the silicone membrane module.
Input expansion includes two remappable rear paddle inputs and twin supplementary shoulder bumpers (L4/R4), augmented by physical two-stage trigger stops that restrict pull travel for fast-paced shooters. Platform integration covers Xbox consoles, Windows, Android, and iOS, configured through the 8BitDo Ultimate Software suite for deadzone adjustments, vibration intensity curves, and macro profiles stored in onboard memory. While console implementations operate under standard polling protocols and PC titles occasionally require explicit API support to utilize independent impulse trigger rumble, the physical foundation remains one of the most robust and user-serviceable architectures in the wireless controller category.
Technical Specifications
| Brand | 8BitDo |
| Model | Ultimate 3E Wireless Controller |
| Device Category | Controllers & Gamepads |
| Form Factor | Ergonomic Asymmetric Wireless Gamepad |
| Dimensions | 152.5 × 104.0 × 62.0 mm |
| Weight | 285 g |
| Joystick Technology | Tunneling Magnetoresistance (TMR) Magnetic Sensors |
| Trigger Technology | Hall Effect Magnetic Impulse Triggers with 2-Stage Physical Travel Stops |
| Primary Face Buttons | Modular Swappable ABXY (Tactile Micro-Switch and Silicone Membrane Modules) |
| Additional Programmable Inputs | 2 Rear Paddles, 2 Shoulder Bumpers (L4/R4) |
| Maximum Polling Rate | Up to 1000 Hz (PC 2.4GHz Wireless and USB-C Wired) |
| Wireless Connectivity | 2.4GHz Wireless, Bluetooth |
| Wired Connectivity | USB Type-C |
| Platform Compatibility | Xbox Series X|S, Xbox One, Windows 10/11, Android, iOS |
| Battery Capacity | 1400 mAh Rechargeable Lithium-ion |
| Battery Runtime | Up to 18 hours |
| Charging Interface | Contactless Magnetic Charging Dock & USB-C |
| Audio Interface | 3.5 mm Stereo Headphone Jack with Integrated Mute / Volume Controls |
| Configuration Software | 8BitDo Ultimate Software |
- Contactless Tunneling Magnetoresistance (TMR) analog sticks and Hall Effect triggers eliminate potentiometer stick drift and physical contact degradation.
- Hot-swappable ABXY button modules allow on-the-fly transitions between tactile micro-switches and traditional silicone membrane pads.
- Bundled zero-contact wireless charging dock preserves USB-C port longevity while maintaining ready-to-play battery states.
- Supports native 1000 Hz polling rates over 2.4GHz wireless and wired USB-C on PC platforms.
- Impulse trigger vibration behavior can require game-specific API implementation or software workarounds on PC.
- 1000 Hz high-polling performance is restricted to PC environments and is not supported natively on Xbox console protocols.
Primary Sources & Audited Citations
Recommended Alternatives in Controllers & Gamepads
At a Glance
How reliable is the 8BitDo Ultimate 3E Wireless Controller according to Mizex audits?
An exceptional acquisition for competitive PC and Xbox players seeking modular hardware customization and drift-free magnetic sensors without paying elite-tier first-party premiums.
What are the known quirks or drawbacks of the 8BitDo Ultimate 3E Wireless Controller?
Our reliability audit identified the following documented caveats:
- Impulse trigger vibration behavior can require game-specific API implementation or software workarounds on PC.
- 1000 Hz high-polling performance is restricted to PC environments and is not supported natively on Xbox console protocols.
What are the key engineering highlights of the 8BitDo Ultimate 3E Wireless Controller?
The top strengths recorded in our evaluation include:
- Contactless Tunneling Magnetoresistance (TMR) analog sticks and Hall Effect triggers eliminate potentiometer stick drift and physical contact degradation.
- Hot-swappable ABXY button modules allow on-the-fly transitions between tactile micro-switches and traditional silicone membrane pads.
- Bundled zero-contact wireless charging dock preserves USB-C port longevity while maintaining ready-to-play battery states.
- Supports native 1000 Hz polling rates over 2.4GHz wireless and wired USB-C on PC platforms.
