Side-by-Side Comparison
Noctua NF-B9 redux-1600 PWM vs Valkyrie B12 ARGB
Standardized 5-pillar engineering audit, thermal telemetry, verified longevity metrics, and complete technical specification diff.
★ Recommended Winner
● HIGHLY RATED
Composite Score:
4.6
/ 5.0

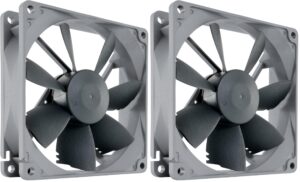

A precision-engineered 92 mm PWM cooling fan pairing a fiberglass-reinforced PBT assembly and custom NE-FD1 motor driver with an ultra-quiet 17.6 dBA acoustic profile and 150,000-hour SSO bearing.
● HIGHLY RATED
Composite Score:
4.5
/ 5.0
High-performance radiator fan combining 4.0 mmH₂O static pressure, durable PBT construction, and daisy-chain integration.
⚖️
Mizex Comparative Audit Verdict
The Noctua NF-B9 redux-1600 PWM earns the higher Mizex Composite Score (4.6 vs 4.5), leading across 4 of 5 engineering pillars. With superior ratings in Engineering & Architecture, Build Quality & Materials, Real-World Reliability, Buyer Value & Upgrades, it represents the superior reliability choice.
5-Pillar Engineering Telemetry
Detailed comparison across standardized normalized 1.0 – 5.0 engineering pillars.
Noctua NF-B9 redux-1600 PWM
Valkyrie B12 ARGB
Engineering & Architecture
(30%)
Winner: Noctua NF-B9 redux-1600 PWM (+0.1)
4.6
4.5
Build Quality & Materials
(20%)
Winner: Noctua NF-B9 redux-1600 PWM (+0.2)
4.6
4.4
Thermal, Power & Acoustics
(20%)
Tie
4.5
4.5
Real-World Reliability
(20%)
Winner: Noctua NF-B9 redux-1600 PWM (+0.2)
4.8
4.6
Buyer Value & Upgrades
(10%)
Winner: Noctua NF-B9 redux-1600 PWM (+0.2)
4.7
4.5
Noctua NF-B9 redux-1600 PWM: Strengths & Caveats
✔ Advantages
- Proprietary NE-FD1 PWM IC enables smooth speed modulation down to a complete 0 RPM fan stop at 0% PWM duty cycle
- Acoustically optimized impeller with Vortex-Control Notches caps maximum sound output at an ultra-quiet 17.6 dBA
- High static pressure of 1.61 mm H₂O and 37.85 CFM airflow balanced effectively for 92 mm heatsinks and chassis ventilation
- Industrial-grade SSO-Bearing and PBT GF30 construction provide over 150,000 hours MTTF backed by a 6-year warranty
✖ Documented Caveats
- Redux packaging excludes silicone anti-vibration corner pads and low-noise adapters included with standard-line Noctua fans
- Volumetric airflow of 37.85 CFM is physically constrained by the 92 mm form factor compared to standard 120 mm options
Valkyrie B12 ARGB: Strengths & Caveats
✔ Advantages
- High static pressure rating of 4.0 mmH₂O and 81.68 CFM airflow optimized for radiators
- Fluid Dynamic Bearing ensures smooth rotational stability and enhanced operational life
- Modular daisy-chain design significantly simplifies PWM and ARGB cable routing
✖ Documented Caveats
- Acoustic output approaches 30.5 dBA at maximum 2150 RPM load, necessitating custom fan curves for quiet builds
- Operational speed envelope carries a standard ±10% RPM manufacturing variance
Technical Specification Comparison
Side-by-side spec alignment. Rows highlighted with subtle shading denote differing specifications.
| Specification | Noctua NF-B9 redux-1600 PWM | Valkyrie B12 ARGB |
|---|---|---|
| Brand DIFF | Noctua | Valkyrie |
| Model DIFF | NF-B9 redux-1600 PWM | Valkyrie B12 ARGB |
| Dimensions DIFF | 3.62 x 3.62 x 0.98 in (92 x 92 x 25 mm) | — |
| Mounting Hole Spacing DIFF | 3.25 x 3.25 in (82.5 x 82.5 mm) | — |
| Weight DIFF | 2.82 oz (80 g) | — |
| Frame Shape DIFF | Square | — |
| Frame Material DIFF | PBT GF30 (30% Glass-Fiber Reinforced Polybutylene Terephthalate) | — |
| Impeller Material DIFF | PBT GF30 (30% Glass-Fiber Reinforced Polybutylene Terephthalate) | — |
| Bearing Type DIFF | SSO (Self-Stabilising Oil-Pressure Bearing) | — |
| Rotational Direction DIFF | Counter-clockwise | — |
| Frame Color DIFF | Light Grey | — |
| Impeller Color DIFF | Dark Grey | — |
| Connector Type DIFF | 4-pin PWM (A2543-4PIN) | — |
| Cable Length DIFF | 15.75 in (400 mm) | — |
| Wire Gauge DIFF | 26 AWG | — |
| Cable Sleeving DIFF | Fibreglass silicone mesh | — |
| Rotational Speed (Max) DIFF | 1600 RPM | — |
| Rotational Speed (20% PWM) DIFF | 400 RPM | — |
| Rotational Speed (0% PWM) DIFF | 0 RPM (Fan Stop) | — |
| Airflow (Max) DIFF | 37.85 CFM (64.3 m³/h) | — |
| Static Pressure (Max) DIFF | 1.61 mm H₂O (0.063 in H₂O) | — |
| Acoustical Noise (Max) DIFF | 17.6 dBA | — |
| Motor Architecture DIFF | Single phase, 4-pole, 4-slot | — |
| Motor Driver IC DIFF | Noctua NE-FD1 | — |
| Rated Voltage DIFF | 12 V | — |
| Starting Voltage DIFF | 7 V | — |
| Max Operating Voltage DIFF | 13.2 V | — |
| Input Power (Typical / Max) DIFF | 0.91 W / 0.96 W | — |
| Input Current (Typical / Max) DIFF | 0.08 A / 0.08 A | — |
| Mean Time To Failure (MTTF) DIFF | > 150,000 hours | — |
| Safety Standards DIFF | EN 62368-1 | — |
| Warranty DIFF | 6 years | — |
| Fan Size DIFF | — | 120 mm (4.72 in) |
| Speed Range DIFF | — | 800 - 2150 RPM ± 10% |
| Airflow Max DIFF | — | 81.68 CFM |
| Static Pressure Max DIFF | — | 4.0 mmH₂O |
| Bearing Type DIFF | — | Fluid Dynamic Bearing (FDB) |
| Blade Count DIFF | — | 9 |
| Frame Material DIFF | — | PBT |
| Noise Level Max DIFF | — | 30.5 dBA |
| Power Connector DIFF | — | 4-Pin PWM |
| Rgb Connector DIFF | — | 3-Pin 5V ARGB |
| Rated Voltage DIFF | — | 12V DC |
| Rated Current DIFF | — | 0.2A |
| Daisy Chain Capable DIFF | — | Yes |
