Side-by-Side Comparison
MAXSUN MS-Terminator B850M PRO WiFi vs Gigabyte B850M Aorus Stealth Ice
Standardized 5-pillar engineering audit, thermal telemetry, verified longevity metrics, and complete technical specification diff.
▲ DOCUMENTED QUIRKS
Composite Score:
4.3
/ 5.0
A feature-dense Micro ATX AM5 board featuring dual PCIe 5.0 M.2 storage and 2.5GbE networking, offset by entry-level ALC897 audio and legacy HDMI 1.4 display output.
★ Recommended Winner
● HIGHLY RATED
Composite Score:
4.4
/ 5.0
The Gigabyte B850M Aorus Stealth Ice delivers high-speed PCIe 5.0 and Wi-Fi 7 connectivity alongside an 8+2+2 digital VRM and a clean reverse-connector architecture.
⚖️
Mizex Comparative Audit Verdict
The Gigabyte B850M Aorus Stealth Ice achieves the higher Mizex Composite Score (4.4 vs 4.3), leading across 4 of 5 engineering pillars. With an advantage in Engineering & Architecture, Build Quality & Materials, Thermal, Power & Acoustics, Real-World Reliability, it represents the stronger technical recommendation.
5-Pillar Engineering Telemetry
Detailed comparison across standardized normalized 1.0 – 5.0 engineering pillars.

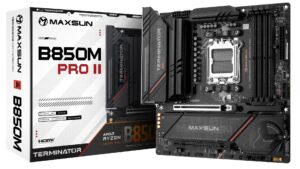

MAXSUN MS-Terminator B850M PRO WiFi
Gigabyte B850M Aorus Stealth Ice
Engineering & Architecture
(30%)
Winner: Gigabyte B850M Aorus Stealth Ice (+0.3)
4.3
4.6
Build Quality & Materials
(20%)
Winner: Gigabyte B850M Aorus Stealth Ice (+0.1)
4.2
4.3
Thermal, Power & Acoustics
(20%)
Winner: Gigabyte B850M Aorus Stealth Ice (+0.1)
4.1
4.2
Real-World Reliability
(20%)
Winner: Gigabyte B850M Aorus Stealth Ice (+0.1)
4.3
4.4
Buyer Value & Upgrades
(10%)
Winner: MAXSUN MS-Terminator B850M PRO WiFi (+0.1)
4.6
4.5
MAXSUN MS-Terminator B850M PRO WiFi: Strengths & Caveats
✔ Advantages
- Dual PCIe 5.0 x4 M.2 storage slots paired with a primary PCIe 5.0 x16 graphics expansion slot
- High-speed networking with Realtek 2.5GbE Ethernet and MediaTek MT7922 Wi-Fi 6E / Bluetooth 5.2
- Memory scalability supporting up to 192 GB DDR5 with AMD EXPO profiles up to 8000 MHz (OC)
- Dual 8-pin 12V CPU power connectors and dual USB 10Gbps Type-C interfaces across front and rear I/O
✖ Documented Caveats
- Rear HDMI port is restricted to the legacy HDMI 1.4 standard (maximum 4K at 30Hz)
- Tertiary M.2 slot (M.2_C) is limited to PCIe 4.0 x2 bandwidth
- Audio subsystem is built around an entry-level Realtek ALC897 codec
Gigabyte B850M Aorus Stealth Ice: Strengths & Caveats
✔ Advantages
- Reverse-connector Stealth architecture routes all cables behind the tray for unimpeded chassis airflow and a cable-free main chamber
- Comprehensive high-speed connectivity with PCIe 5.0 on both GPU and primary M.2 slots, 5GbE LAN, and Wi-Fi 7
- Spacious 64MB BIOS ROM provides integrated Wi-Fi drivers and architectural headroom for next-gen Zen 6 CPUs
- High-density DDR5 memory support up to 256 GB with speeds reaching 8200 MT/s (O.C.)
✖ Documented Caveats
- Strict chassis requirement mandating a case specifically built with rear motherboard tray cutouts
- Demands more planning and precision during initial cable management than conventional front-plug boards
Technical Specification Comparison
Side-by-side spec alignment. Rows highlighted with subtle shading denote differing specifications.
| Specification | MAXSUN MS-Terminator B850M PRO WiFi | Gigabyte B850M Aorus Stealth Ice |
|---|---|---|
| Brand DIFF | MAXSUN | Gigabyte |
| Model DIFF | MS-Terminator B850M PRO WiFi | Gigabyte B850M Aorus Stealth Ice |
| Form Factor DIFF | Micro ATX (9.6 x 9.6 in / 245 x 245 mm) | Micro-ATX (24.4 x 24.4 cm) |
| Cpu Socket DIFF | AMD AM5 | — |
| Supported Processors DIFF | AMD Ryzen 7000, 8000, and 9000 Series | AMD Ryzen 7000, 8000, and 9000 Series (Zen 6 supported via 64MB BIOS) |
| Chipset | AMD B850 | AMD B850 |
| Memory Slots DIFF | 4× DDR5 DIMM | 4x DDR5 DIMM |
| Max Memory Capacity DIFF | 192 GB | 256 GB (up to 64 GB per slot) |
| Memory Architecture DIFF | Dual-channel | — |
| Memory Overclocking Support DIFF | AMD EXPO (up to 8000 MHz OC) | — |
| Pcie Slots DIFF | 1× PCIe 5.0 x16, 1× PCIe 4.0 x16 (x4 mode) | 1x PCIe 5.0 x16 |
| M2 Storage Slots DIFF | 3× M.2 2280 Key M (M.2_A: PCIe 5.0 x4/x2, M.2_B: PCIe 5.0 x4/x2, M.2_C: PCIe 4.0 x2) | — |
| Display Outputs DIFF | 1× DisplayPort (up to 4K @ 60Hz), 1× HDMI 1.4 (up to 4K @ 30Hz) | 1x HDMI 2.1 (4K at 60 Hz), 1x DisplayPort 1.4 (4K at 144 Hz) |
| Audio Codec DIFF | Realtek ALC897 | — |
| Ethernet DIFF | 1× Realtek RTL8125D 2.5GbE LAN | 5GbE LAN |
| Wireless Module DIFF | MediaTek MT7922 (Wi-Fi 6E, Bluetooth 5.2) | — |
| Rear Usb Ports DIFF | 1× USB 10Gbps Type-C, 4× USB 5Gbps Type-A, 4× USB 2.0 Type-A | — |
| Front Internal Usb Headers DIFF | 1× USB 10Gbps Type-C, 1× USB 5Gbps 19-pin (supports 2 ports), 2× USB 2.0 9-pin (supports 4 ports) | — |
| Power Connectors DIFF | 1× 24-pin ATX power connector, 2× 8-pin +12V CPU power connectors | — |
| Fan And Pump Headers DIFF | 1× 4-pin CPU_FAN, 1× 4-pin PUMP, 2× 4-pin SYS_FAN | — |
| Rgb Headers DIFF | 2× 3-pin 5V ARGB | — |
| Buttons DIFF | 1× CLR_CMOS quick-access button | — |
| Socket DIFF | — | Socket AM5 (LGA 1718) |
| Vrm Phases DIFF | — | 8+2+2 digital phases |
| Max Memory Speed DIFF | — | 8200(O.C.) MT/s |
| Memory Profiles DIFF | — | AMD EXPO, Intel XMP 3.0 |
| M2 Slots DIFF | — | 3x M.2 (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) |
| Wireless DIFF | — | Wi-Fi 7 |
| Bluetooth DIFF | — | Bluetooth 5.4 |
| Usb Connectivity DIFF | — | Up to 3x USB 10Gbps ports |
| Connector Architecture DIFF | — | Backside / reverse-connector layout (Stealth design) |
| Cooling Management DIFF | — | Smart Fan 6 |
| Bios Rom Size DIFF | — | 64 MB (with integrated Wi-Fi driver) |
