Side-by-Side Comparison

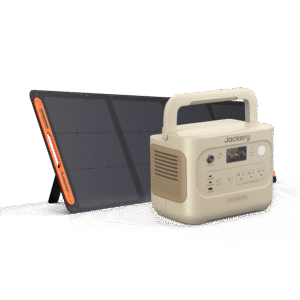

Jackery Solar Generator 1000 Plus v2 200W Solar Panel vs Jackery HomePower 1000 Plus v2
Standardized 5-pillar engineering audit, thermal telemetry, verified longevity metrics, and complete technical specification diff.
● HIGHLY RATED
Composite Score:
4.5
/ 5.0
A well-engineered 1,024Wh LiFePO4 power hub combining rapid 1,600W AC charging, sub-10ms UPS failover, and durable IP68 solar harvesting.
● HIGHLY RATED
Composite Score:
4.5
/ 5.0
A versatile 1,024 Wh LiFePO4 power station delivering 1,800W continuous output, sub-10ms UPS switchover, and modular expandability up to 11 kWh.
⚖️
Mizex Comparative Audit Verdict
Both the Jackery Solar Generator 1000 Plus v2 200W Solar Panel and Jackery HomePower 1000 Plus v2 share an identical composite score of 4.5. Choice between them depends primarily on specific port requirements, physical dimensions, or pricing.
5-Pillar Engineering Telemetry
Detailed comparison across standardized normalized 1.0 – 5.0 engineering pillars.
Jackery Solar Generator 1000 Plus v2 200W Solar Panel
Jackery HomePower 1000 Plus v2
Engineering & Architecture
(30%)
Tie
4.6
4.6
Build Quality & Materials
(20%)
Winner: Jackery HomePower 1000 Plus v2 (+0.1)
4.4
4.5
Thermal, Power & Acoustics
(20%)
Winner: Jackery HomePower 1000 Plus v2 (+0.1)
4.3
4.4
Real-World Reliability
(20%)
Winner: Jackery Solar Generator 1000 Plus v2 200W Solar Panel (+0.2)
4.7
4.5
Buyer Value & Upgrades
(10%)
Tie
4.5
4.5
Jackery Solar Generator 1000 Plus v2 200W Solar Panel: Strengths & Caveats
✔ Advantages
- Robust 6,000-cycle LiFePO4 battery chemistry delivering an estimated 10-year service life.
- Rapid sub-10ms automatic UPS switchover latency for desktop and sensitive IT gear.
- Bi-directional 1,600W AC wall recharge reaching 80% capacity in 36 minutes and full in 50 minutes.
- High-efficiency monocrystalline 200W solar panel with rugged IP68 dust and water ingress protection.
✖ Documented Caveats
- Solar input is capped at 400W, preventing higher-wattage multi-panel series arrays.
- Internal cooling fans become noticeably audible when sustaining full 1,800W continuous inverted loads.
Jackery HomePower 1000 Plus v2: Strengths & Caveats
✔ Advantages
- Rapid sub-10ms UPS switchover latency protects sensitive computing hardware during blackouts
- Modular architecture expands from 1,024 Wh base capacity up to 11 kWh via external battery packs
- Durable LiFePO4 cells rated for 6,000 cycles to 70%+ capacity with full ~50-minute AC recharge
- Integrated 140W USB-C PD 3.1 port allows high-draw laptop charging without proprietary power bricks
✖ Documented Caveats
- Internal electronics and battery pack are factory-sealed, preventing user-level component repairs
- App connectivity and initial firmware pairing occasionally report false frequency mismatch warnings
Technical Specification Comparison
Side-by-side spec alignment. Rows highlighted with subtle shading denote differing specifications.
| Specification | Jackery Solar Generator 1000 Plus v2 200W Solar Panel | Jackery HomePower 1000 Plus v2 |
|---|---|---|
| Brand | Jackery | Jackery |
| Model DIFF | Solar Generator 1000 Plus v2 200W Solar Panel | HomePower 1000 Plus v2 |
| Battery Capacity DIFF | 1,024 Wh (Expandable up to 11 kWh) | 1,024 Wh |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) | Lithium Iron Phosphate (LiFePO4) |
| Cycle Life DIFF | 6,000 cycles to >= 70% capacity | 6,000 cycles to 70%+ capacity |
| Continuous AC Output DIFF | 1,800W (Pure Sine Wave) | — |
| Peak Surge AC Output DIFF | 3,600W | — |
| AC Output Ports DIFF | 4 x 120V AC (60 Hz) | — |
| DC Ports DIFF | 2 x USB-C (up to 140W PD), 1 x USB-A (18W QC), 1 x 12V / 10A Car Port | — |
| AC Input Recharging DIFF | 1,600W Max (0-80% in ~36 min, 0-100% in ~50 min) | — |
| Solar DC Input DIFF | 400W Max (12V-60V, DC8020) | — |
| UPS Switchover Latency DIFF | < 10 ms | — |
| Operational Acoustic Level DIFF | < 30 dBA (Silent Mode) | — |
| Station Dimensions DIFF | 12.4 x 7.9 x 9.2 in (315 x 201 x 234 mm) | — |
| Station Weight DIFF | 23.8 lbs (10.8 kg) | — |
| Solar Panel Model DIFF | SolarSaga 200W Monocrystalline | — |
| Solar Panel Efficiency DIFF | Up to 25% | — |
| Solar Panel Ingress Protection DIFF | IP68 Dust and Waterproof | — |
| Solar Panel Dimensions (Folded) DIFF | 24.2 x 21.7 x 1.6 in (615 x 552 x 40 mm) | — |
| Solar Panel Dimensions (Unfolded) DIFF | 92.1 x 21.7 x 1.0 in (2340 x 552 x 25 mm) | — |
| Solar Panel Weight DIFF | 14.1 lbs (6.4 kg) | — |
| Total System Weight DIFF | 37.9 lbs (17.2 kg) | — |
| Connectivity DIFF | Wi-Fi (2.4 GHz) and Bluetooth App Control | Wi-Fi, Bluetooth, Jackery App |
| AC Continuous Output DIFF | — | 1,800W pure sine wave (120V, 60Hz) |
| AC Surge Output DIFF | — | 3,600W |
| AC Outlets DIFF | — | 4 x 120V AC (15A max combined) |
| USB C Ports DIFF | — | 2 x USB-C (Port 1: 140W PD 3.1 max; Port 2: 30W max) |
| USB A Ports DIFF | — | 1 x USB-A (18W Quick Charge max) |
| DC Expansion Port DIFF | — | 36.8V-56V⎓65A max (scalable up to 11 kWh) |
| AC Wall Input DIFF | — | 100V-120V~ 60Hz, 15A max (~50 min recharge) |
| UPS Transfer Time DIFF | — | < 10 ms |
| Acoustic Noise DIFF | — | < 30 dBA (Silent Mode) |
| Dimensions DIFF | — | 12.4 x 7.9 x 9.2 in (314 x 201 x 234 mm) |
| Weight DIFF | — | 23.8 lbs (10.8 kg) |
| Safety & Protection DIFF | — | ChargeShield 2.0 (62 protection mechanisms) |
