Side-by-Side Comparison
Fractal Design Summit Ambience Blackout TG Blackened Oak vs Phanteks EX5 Plus
Standardized 5-pillar engineering audit, thermal telemetry, verified longevity metrics, and complete technical specification diff.
▲ DOCUMENTED QUIRKS
Composite Score:
4.2
/ 5.0
A refined mid-tower blending genuine blackened oak accents with native back-connect motherboard support and high-end LCP cooling, tempered only by cramped cable paths when maxing out 3.5-inch storage.
★ Recommended Winner
▲ DOCUMENTED QUIRKS
Composite Score:
4.3
/ 5.0
A structurally rigid mid-tower chassis featuring innovative compartmentalized thermal zoning and a factory-integrated 360 mm liquid cooler with concealed internal tubing.
⚖️
Mizex Comparative Audit Verdict
The Phanteks EX5 Plus achieves the higher Mizex Composite Score (4.3 vs 4.2), leading across 4 of 5 engineering pillars. With an advantage in Engineering & Architecture, Build Quality & Materials, Real-World Reliability, Buyer Value & Upgrades, it represents the stronger technical recommendation.
5-Pillar Engineering Telemetry
Detailed comparison across standardized normalized 1.0 – 5.0 engineering pillars.

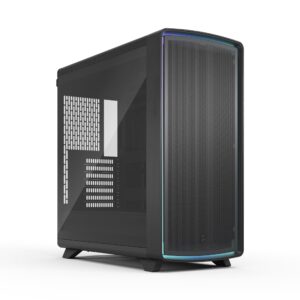

Fractal Design Summit Ambience Blackout TG Blackened Oak
Phanteks EX5 Plus
Engineering & Architecture
(30%)
Winner: Phanteks EX5 Plus (+0.2)
4.2
4.4
Build Quality & Materials
(20%)
Winner: Phanteks EX5 Plus (+0.2)
4.1
4.3
Thermal, Power & Acoustics
(20%)
Winner: Fractal Design Summit Ambience Blackout TG Blackened Oak (+0.2)
4.4
4.2
Real-World Reliability
(20%)
Winner: Phanteks EX5 Plus (+0.1)
4.3
4.4
Buyer Value & Upgrades
(10%)
Winner: Phanteks EX5 Plus (+0.2)
4.0
4.2
Fractal Design Summit Ambience Blackout TG Blackened Oak: Strengths & Caveats
✔ Advantages
- FSC-certified solid blackened oak front frame and solid wood feet with ambient lighting integration
- Pre-installed trio of 140 mm Momentum PWM fans engineered with Liquid Crystal Polymer blades
- Native support for ATX and Micro-ATX back-connect motherboards alongside dual 360 mm radiator brackets
- Generous clearance for 16.7 in (425 mm) GPUs, 6.8 in (173 mm) CPU coolers, and up to 10.9 in (277 mm) E-ATX motherboards
✖ Documented Caveats
- Fully populating all four 3.5-inch drive bays eliminates internal cable routing pathways
- Secondary 3.5-inch drive trays unavailable as standalone retail purchases at launch
- Select exterior chassis panels display noticeable torsional flex and reduced rigidity
Phanteks EX5 Plus: Strengths & Caveats
✔ Advantages
- Factory-integrated Glacier One 360S25-SE liquid cooler with concealed internal tubing routing
- Compartmentalized internal architecture eliminates cross-component thermal recirculation
- Dedicated rear motherboard tray fan actively cools VRMs, RAM, and backside M.2 drives
- Robust 9.35 kg steel chassis construction with integrated GPU anti-sag support
✖ Documented Caveats
- No cutouts or routing support for rear-connect motherboards (ASUS BTF / MSI Project Zero)
- 72 mm CPU cooler height clearance strictly commits the chassis to liquid cooling solutions
- Fans reach 35.8 dBA at peak 2000 RPM, requiring manual BIOS fan profiling for low noise
Technical Specification Comparison
Side-by-side spec alignment. Rows highlighted with subtle shading denote differing specifications.
| Specification | Fractal Design Summit Ambience Blackout TG Blackened Oak | Phanteks EX5 Plus |
|---|---|---|
| Brand DIFF | Fractal Design | Phanteks |
| Model DIFF | Summit Ambience Blackout TG Blackened Oak | EX5 Plus |
| Form Factor DIFF | ATX Mid-Tower | — |
| Chassis Materials DIFF | Steel, Tempered Glass, FSC-certified solid blackened oak | — |
| Wood Accent DIFF | FSC-certified blackened oak front frame and solid wood feet | — |
| Side Panel DIFF | Tempered Glass (Tool-less) | — |
| Motherboard Compatibility DIFF | E-ATX (up to 10.9 in / 277 mm), ATX, Micro-ATX | — |
| Back Connect Support DIFF | ATX and Micro-ATX rear-connector (BTF / Stealth) motherboards | — |
| Expansion Slots | 7 | 7 |
| Maximum GPU Length DIFF | 16.7 in (425 mm) | — |
| Maximum CPU Cooler Height DIFF | 6.8 in (173 mm) | 72 mm |
| Front Radiator Support DIFF | Up to 360 mm (14.2 in) | — |
| Top Radiator Support DIFF | Up to 360 mm (14.2 in) | — |
| Pre Installed Fans DIFF | 3x 140 mm (5.5 in) Momentum PWM fans (Liquid Crystal Polymer blades) | — |
| Combined 3.5 / 2.5 Inch Drive Mounts DIFF | 2 | — |
| Dedicated 2.5 Inch Drive Mounts DIFF | 2 | — |
| Maximum 2.5 Inch Drive Capacity DIFF | 6 | — |
| 5.25 Inch Drive Bays DIFF | 0 | — |
| Lighting Integration DIFF | Front-panel ambient RGB illumination | — |
| Cooling Brackets DIFF | Removable front and top brackets | — |
| Cable Management DIFF | Cable aligner arches and dedicated routing grommets | — |
| GPU Support DIFF | Integrated adjustable graphics card bracket | — |
| Chassis Type DIFF | — | Mid-Tower |
| Dimensions DIFF | — | 449 mm x 234 mm x 474 mm |
| Net Weight DIFF | — | 9.35 kg (20.61 lbs) |
| Primary Materials DIFF | — | Steel, Tempered Glass, ABS Plastic |
| Motherboard Support DIFF | — | ATX, Micro-ATX, Mini-ITX |
| Integrated Liquid Cooler DIFF | — | Glacier One 360S25-SE (360 mm Radiator) |
| Included Fans DIFF | — | 3x 120 mm Radiator Fans (300-2000 RPM), 1x S25-120 mm Rear Motherboard Tray Fan |
| Maximum Fan Noise DIFF | — | 35.8 dBA at 2000 RPM |
| Maximum GPU Clearance DIFF | — | 358 mm |
| Maximum PSU Length DIFF | — | 210 mm |
| Drive Bays DIFF | — | 1x 3.5-inch HDD, 1x 2.5-inch SSD |
| Front I/O Ports DIFF | — | 1x USB-C 3.2 Gen 2x2 (20 Gbps), 2x USB 3.0 Type-A, 1x 3.5 mm Audio/Mic Combo |
| Back Connect Motherboard Support DIFF | — | No (Incompatible with BTF / Project Zero) |
| Manufacturer Warranty DIFF | — | 5 Years |
