Side-by-Side Comparison
be quiet! Light Loop IO LCD 360mm Black vs be quiet! Light Loop IO LCD 360mm White
Standardized 5-pillar engineering audit, thermal telemetry, verified longevity metrics, and complete technical specification diff.
★ Recommended Winner
● HIGHLY RATED
Composite Score:
4.5
/ 5.0
A high-performance 360 mm liquid cooler distinguishing itself through an accessible refill port, progressive IC pump architecture, and clean IPS telemetry integration.
● HIGHLY RATED
Composite Score:
4.4
/ 5.0
A meticulously damped 360mm white liquid cooler that pairs whisper-quiet progressive-IC pump operation and a vibrant 2.1-inch IPS display with a long-term refillable radiator design.
⚖️
Mizex Comparative Audit Verdict
The be quiet! Light Loop IO LCD 360mm Black earns the higher Mizex Composite Score (4.5 vs 4.4), leading across 2 of 5 engineering pillars. With superior ratings in Real-World Reliability, Buyer Value & Upgrades, it represents the superior reliability choice.
5-Pillar Engineering Telemetry
Detailed comparison across standardized normalized 1.0 – 5.0 engineering pillars.

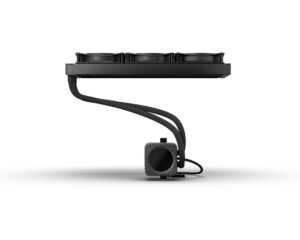

be quiet! Light Loop IO LCD 360mm Black
be quiet! Light Loop IO LCD 360mm White
Engineering & Architecture
(30%)
Tie
4.6
4.6
Build Quality & Materials
(20%)
Tie
4.5
4.5
Thermal, Power & Acoustics
(20%)
Winner: be quiet! Light Loop IO LCD 360mm White (+0.1)
4.4
4.5
Real-World Reliability
(20%)
Winner: be quiet! Light Loop IO LCD 360mm Black (+0.3)
4.7
4.4
Buyer Value & Upgrades
(10%)
Winner: be quiet! Light Loop IO LCD 360mm Black (+0.2)
4.3
4.1
be quiet! Light Loop IO LCD 360mm Black: Strengths & Caveats
✔ Advantages
- Integrated round IPS display on the pump block delivers real-time system telemetry and customizable visuals
- Accessible refill port with bundled coolant bottle mitigates fluid permeation for extended service life
- Dedicated IO Controller hub synchronizes three high-speed Light Wings LX fans, ARGB lighting, and display data
- Progressive IC pump motor and optimized jet plate promote stable coolant circulation with reduced mechanical resonance
✖ Documented Caveats
- Extensive wiring harness connecting the display, pump diffuser, three ARGB fans, and IO Controller demands disciplined cable management
- Large 360 mm (14.17 in) radiator footprint requires a chassis with sufficient top or front mounting clearance
be quiet! Light Loop IO LCD 360mm White: Strengths & Caveats
✔ Advantages
- Progressive IC pump motor driver eliminates high-frequency switching hum, operating at just 17.2 dBA at 50% load
- Integrated 2.1-inch 480x480 IPS display delivers 500 nits brightness with comprehensive telemetry and custom animation support
- Centralized IO Controller hub consolidates power, PWM, ARGB, and USB data into a single clean cable harness
- User-accessible radiator refill port with included coolant bottle ensures long-term loop serviceability
✖ Documented Caveats
- Three-year manufacturer warranty is shorter than the five-to-six-year coverage standard on rival flagship AIOs
- Full visual telemetry and pump curve tuning depend on running the proprietary be quiet! IO Center software suite
Technical Specification Comparison
Side-by-side spec alignment. Rows highlighted with subtle shading denote differing specifications.
| Specification | be quiet! Light Loop IO LCD 360mm Black | be quiet! Light Loop IO LCD 360mm White |
|---|---|---|
| Brand | be quiet! | be quiet! |
| Model DIFF | Light Loop IO LCD 360mm Black | Light Loop IO LCD 360mm White |
| Cooler Type DIFF | All-in-One (AIO) Liquid CPU Cooler | — |
| Radiator Dimensions DIFF | 360 mm (14.17 in) | — |
| Fan Model DIFF | Light Wings LX 120mm PWM high-speed | — |
| Fan Configuration DIFF | 3x 120 mm (4.72 in) | — |
| Pump Motor Architecture DIFF | Progressive IC Pump | — |
| Cold Plate Engineering DIFF | Optimized Jet Plate and Micro-Channel Base | — |
| Display Specification DIFF | Integrated Round IPS Display | — |
| Lighting Integration DIFF | Addressable RGB (16 LEDs per fan and pump diffuser) | — |
| Control Hub DIFF | Dedicated IO Controller | — |
| Maintenance Interface DIFF | Integrated Refill Port (Bundled Coolant Bottle) | — |
| Chassis Finish DIFF | Black | — |
| Radiator Dimensions (without Fans) DIFF | — | 15.63 x 4.72 x 1.06 in (397 x 120 x 27 mm) |
| Radiator Dimensions (with Fans) DIFF | — | 15.63 x 4.72 x 2.05 in (397 x 120 x 52 mm) |
| Cooling Block Dimensions DIFF | — | 2.51 x 2.44 x 2.13 in (63.8 x 61.9 x 54 mm) |
| Total Weight DIFF | — | 3.53 lbs (1.60 kg) |
| Tube Length DIFF | — | 15.75 in (400 mm) |
| Radiator Material DIFF | — | Aluminum |
| Cold Plate Material DIFF | — | Nickel-plated copper |
| Pump Speed DIFF | — | 1,500 – 2,900 RPM (±10%) |
| Pump Motor DIFF | — | 6-pole motor with progressive IC driver |
| Integrated Display DIFF | — | 2.1-inch IPS, 480 x 480 resolution, 500 nits brightness |
| Fans Included DIFF | — | 3x Light Wings LX 120mm PWM high-speed White |
| Fan Speed DIFF | — | Up to 2,100 RPM (±10%) |
| Fan Airflow DIFF | — | 61.8 CFM (105.0 m³/h) |
| Fan Static Pressure DIFF | — | 2.51 mm H2O |
| Fan Bearing DIFF | — | Rifle bearing |
| Acoustic Noise Level DIFF | — | 17.2 dBA (50% PWM), 29.1 dBA (75% PWM), 36.8 dBA (100% PWM) |
| Cable Management Hub DIFF | — | be quiet! IO Controller (centralized SATA power, PWM, ARGB, USB) |
| Socket Compatibility (Intel) DIFF | — | LGA 1851, 1700, 1200, 1150, 1151, 1155 |
| Socket Compatibility (AMD) DIFF | — | AM5, AM4 |
| Refill Port DIFF | — | Integrated G1/4 refill port on radiator (coolant bottle included) |
| Warranty DIFF | — | 3 Years |
